Provides information about using query offload with an elastic pool and describes the query offload features.

Elastic pool query offload provides performance benefits by allowing one or more Refreshable Clones to handle queries for an elastic pool leader. This feature also allows you to add Refreshable Clones to accommodate increasing query (read) demand. Offloading queries allows your application to scale horizontally, where you can add Refreshable Clones to maintain overall system performance as needed to satisfy your query request volume.

When query offload is enabled, queries are submitted to the Elastic Pool Leader and one or more available Refreshable Clones become candidates for query offloading. In addition, when more Refreshable Clones are added, query offload dynamically adjusts to make use of the new resources.

One use case for query offload is to enable the feature during peak hours to take load off of the Elastic Pool Leader. During quiet hours, you can disable query offload to perform maintenance operations such as refreshing the Refreshable Clones.

By default query offload considers queries from any session. Alternatively you can offload queries from a list of sessions that you specify by module or action name.

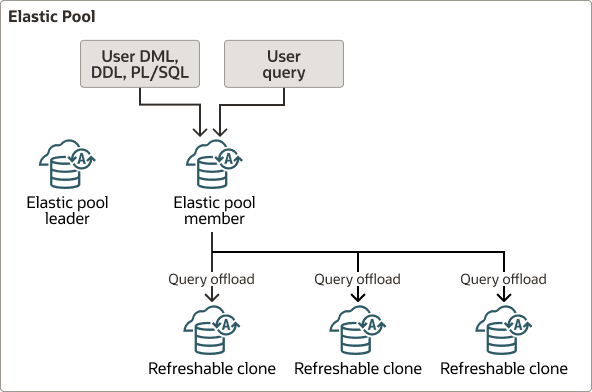

Description of the illustration autonomous-elastic-pool-leader-query-offload.png

Data on the Refreshable Clones is up to date based on the last refresh time for each refreshable clone. This means, when query offload is enabled you perform all DDL, DML and PL/SQL operations on the elastic pool leader. Then, after a Refreshable Clone is refreshed, the changes are reflected on the Refreshable Clone.

See Use Refreshable Clones with Autonomous Database for more information.

Describes how to enable query offload for an elastic pool leader.

1. Verify that the Autonomous Database instance is an elastic pool leader.

   Use the following query to verify that an instance is an elastic pool leader:

   SELECT sys_context('userenv', 'is_elastic_pool_leader') FROM DUAL;

   This query should return YES.

   Note

   There may be a delay of up to 15 minutes for the sys_context value to reflect the current value for the elastic pool leader, if the elastic pool has recently been created or modified.
2. Enable query offload for an elastic pool leader.

   There are two choices: you can enable query offload for queries from any session or limit query offload to the sessions you specify by module or action name.

   • To enable query offload for all sessions run DBMS_PROXY_SQL.ENABLE_READ_ONLY_OFFLOAD without parameters. For example:

     EXEC DBMS_PROXY_SQL.ENABLE_READ_ONLY_OFFLOAD;

   • To enable query offload for specific sessions by module name or action name, run DBMS_PROXY_SQL.ENABLE_READ_ONLY_OFFLOAD with the module_name or action_name parameters.

     See Enable Query Offload for an Elastic Pool Leader for Named Modules or Actions for more information.

SELECT sys_context('userenv', 'con_name') FROM DUAL;

• Enable Query Offload for an Elastic Pool Leader for Named Modules or Actions
  Describes how to enable query offload for an elastic pool leader for sessions with named modules or actions.

Describes how to disable query offload for an elastic pool leader.

EXEC DBMS_PROXY_SQL.DISABLE_READ_ONLY_OFFLOAD;

When query offload is enabled, queries are offloaded to Refreshable Clones even if they are embedded within PL/SQL. The PL/SQL can be stored procedures, functions, packages, or anonymous blocks.

For example, you can demonstrate a query being offloaded to a Refreshable Clone when you enable query offload for a specific module and action. In this example, assume that the leader's data has been updated and the Refreshable Clone has not yet been updated (so the Refreshable Clone's data is out of date and different). In this example, with different values on the elastic pool leader and the Refreshable Clone, you can see when data is coming from either the leader or from the Refreshable Clone.

1. Enable query offload for an elastic pool leader and specify the eligible sessions by module name and action name. For example, 'mod1', 'act1'.

   DECLARE
      mod_values clob := to_clob('["mod1"]');
      act_values clob := to_clob('["act1"]');
   BEGIN
      DBMS_PROXY_SQL.ENABLE_READ_ONLY_OFFLOAD(
         module_name => mod_values,
         action_name => act_values);
   END;
   /

2. Define the function f1 to test query offload.

   SQL> create or replace function f1 (n number)
     2  return number
     3  as
     4    l_cnt number;
     5  begin
     6    select sum(c1) into l_cnt from u2.tab1;
     7    return l_cnt;
     8  end;
     9  /

   Function created.

3. Run the function f1. The query with function f1 runs on the elastic pool leader. This session runs with unspecified module and action names that do not match those specified for query offload in Step 1.

   SQL> -- expected to fetch from Elastic Pool Leader and returns value 40
   SQL> select f1(3) from dual;
        F1(3)
   ----------
           40

   1 row selected.

4. Specify the module name and action name for the session to match the names specified in Step 1. The queries from this session are now eligible to be offloaded to a Refreshable Clone.

   SQL> exec dbms_application_info.set_module('mod1', 'act1');

   PL/SQL procedure successfully completed.

5. Run the function f1 again. In this case the module name and action name match the names specified in Step 1. The query in function f1 is offloaded to a Refreshable Clone.

   SQL> -- Expected to fetch from Refreshable Clone and returns value 10
   SQL> select f1(3) from dual;

        F1(3)
   ----------
           10

   1 row selected.

6. Specify the module and action names as something other than mod1 and act1. The queries from this session are no longer eligible to be offloaded to a Refreshable Clone, due to the module and action names not matching those specified in Step 1.

   SQL> exec dbms_application_info.set_module('random', 'random');

   PL/SQL procedure successfully completed.

7. Run the query with function f1. Because the module and action name for this session do not match those set in Step 1, this query is not offloaded and runs on the elastic pool leader.

   SQL> -- expected to fetch from Elastic Pool Leader and returns value 40
   SQL> select f1(3) from dual;
        F1(3)
   ----------
           40

   1 row selected.

When query offload is enabled, queries from within an Oracle Scheduler job action are offloaded to Refreshable Clones. The queries are offloaded whether the job runs in the foreground or in the background.

For example, similar to the previous example for PL/SQL, you can demonstrate a query being offloaded to a Refreshable Clone when you enable query offload for an Oracle Scheduler job. In this example, assume that the leader's data has been updated and the Refreshable Clone has not yet been updated (so the Refreshable Clone's data is out of date and different). In this example, with different values on the elastic pool leader and the Refreshable Clone, you can see when data is coming from either the leader or from the Refreshable Clone.

SQL> create or replace procedure sproc1 (n number)
  2  as
  3    l_cnt number;
  4  begin
  5    select sum(c1) into l_cnt from u2.tab1;
  6    dbms_output.put_line('l_cnt is ' || l_cnt);
  7  end;
  8  /

Procedure created.

Offload Queries from Elastic Pool Leader to Member Refreshable Clones

SQL> create or replace procedure sproc1 (n number)
  2  as
  3    l_cnt number;
  4  begin
  5    select sum(c1) into l_cnt from u2.tab1;
  6    dbms_output.put_line('l_cnt is ' || l_cnt);
  7  end;
  8  /

Procedure created.

SQL>
SQL> BEGIN
  2    dbms_scheduler.create_job(job_name    => 'PROXYTEST1',
  3                              job_type    => 'PLSQL_BLOCK',
  4                              job_action  => 'BEGIN sproc1(3); END;',
  5                              enabled     => FALSE);
  6  END;
  7  /

PL/SQL procedure successfully completed.

SQL>
SQL> -- Job runs in the foreground in the current session
SQL> -- expected to fetch from Leader: 40
SQL> exec dbms_scheduler.RUN_JOB(job_name => 'PROXYTEST1', use_current_session => true);
l_cnt is 40

PL/SQL procedure successfully completed.

SQL>
SQL> exec dbms_proxy_sql.enable_read_only_offload;

PL/SQL procedure successfully completed.

SQL> show con_name

CON_NAME
------------------------------
CDB1_PDB1
SQL>
SQL> set serveroutput on
SQL> -- Job runs in the foreground in the current session
SQL> -- expected to fetch from Refreshable Clone: 10
SQL> exec dbms_scheduler.RUN_JOB(job_name => 'PROXYTEST1', use_current_session => true);
l_cnt is 10

PL/SQL procedure successfully completed.

SQL>
SQL> -- Job runs in the background and is expected to fetch from Refreshable Clone: 10
SQL> exec dbms_scheduler.RUN_JOB(job_name => 'PROXYTEST1', use_current_session => false);

PL/SQL procedure successfully completed.

Provides additional notes for the query offload feature.

Notes for query offload:

• Addition or Removal of a Refreshable Clone: When a Refreshable Clone is added as an elastic pool member, there can be a delay of up to fifteen minutes for the addition to be reflected in the elastic pool leader. A newly added Refreshable Clone is not considered as a target for query offloads until the leader is aware of the newly added elastic pool member.

  Similarly, when a Refreshable Clone is removed from the elastic pool, there can be a delay of up fifteen minutes for the removal to be reflected in the elastic pool leader. The removed Refreshable Clone is considered as a target for query offloads until the leader knows that the member has been removed from the elastic pool.

• Refresh of Refreshable Clone: When a Refreshable Clone is being refreshed, queries that are offloaded to the Refreshable Clone may be delayed.

• Public and Private Endpoint Support: Query offload is supported for instances on a public endpoint and for instances on a private endpoint.

• Disconnected Refreshable Clone: If a Refreshable Clone becomes disconnected, it is no longer eligible as a target for query offload. There can be a delay of up to fifteen minutes for the elastic pool leader to detect that a Refreshable Clone has become disconnected and to stop offloading queries to it.

  To ensure that a Refreshable Clone remains available for query offloading, either enable automatic refreshes or periodically manually refresh the Refreshable Clone.

  See Refresh a Refreshable Clone on Autonomous Database for more information.

• Case Sensitive Module Name and Action Name: When you offload queries from a list of sessions that you specify by module or action name, the module name and action name set with DBMS_APPLICATION_INFO are case sensitive. DBMS_PROXY_SQL.ENABLE_READ_ONLY_OFFLOAD adheres to this case sensitive behavior. For example, when a session has a lowercase module name, or mixed case module name, the case must match in the parameter values when you enable query offload with DBMS_PROXY_SQL.ENABLE_READ_ONLY_OFFLOAD and you include the module_name or action_name parameters.

  You can check the module name and action name for the current session using DBMS_APPLICATION_INFO.READ_MODULE:

  set serveroutput on;
  declare
    l_mod varchar2(50);
    l_act varchar2(50);
  BEGIN
  DBMS_APPLICATION_INFO.READ_MODULE(l_mod, l_act);
    DBMS_OUTPUT.PUT_LINE('l_mod: ' || l_mod);
    DBMS_OUTPUT.PUT_LINE('l_act: ' || l_act);
  END;
  /

• Typical Use Case: One use case for query offload is to enable the feature during peak hours to take load off of the Elastic Pool Leader. During quiet hours, you can disable query offload to perform maintenance operations such as refreshing the Refreshable Clones.
