Managing Server Startup and Shutdown

  Previous Next vertical dots separating previous/next from contents/index/pdf Contents View as PDF   Get Adobe Reader

Using Node Manager to Control Servers

The following sections describe Node Manager functionality, architecture, and configuration procedures.



Overview of Node Manager

Server instances in a WebLogic Server production environment are often distributed across multiple domains, machines, and geographic locations. Node Manager is a WebLogic Server utility that enables you to start, shut down, and restart Administration Server and Managed Server instances from a remote location. Although Node Manager is optional, it is recommended if your WebLogic Server environment hosts applications with high availability requirements.

A Node Manager process is not associated with a specific WebLogic domain but with a machine. You can use the same Node Manager process to control server instances in any WebLogic Server domain, as long as the server instances reside on the same machine as the Node Manager process. Node Manager must run on each computer that hosts WebLogic Server instances -- whether Administration Server or Managed Server -- that you want to control with Node Manager.



Java-based and Script-based Node Manager

WebLogic Server provides two versions of Node Manager, Java-based and script-based, with similar functionality. However, each version has different configuration and security considerations.

Java-based Node Manager

Java-based Node Manager runs within a Java Virtual Machine (JVM) process. It is recommended that you run it as a Windows service on Windows platforms and as an operating service on UNIX platforms, allowing it to restart automatically when the system is rebooted.

BEA provides native Node Manager libraries for Windows, Solaris, HP UX, Linux on Intel, Linux on Z-Series, and AIX operating systems.

Note: Node Manager is not supported on Open VMS, OS/390, AS400, UnixWare, or Tru64 UNIX.

This version of Node Manager determines its configuration from the nodemanager.properties file. See Configuring Java-based Node Manager.

Java-based Node Manager provides more security than the script-based version. See Configuring Java-based Node Manager Security.

Script-based Node Manager

For UNIX and Linux systems, WebLogic Server provides a script-based version of Node Manager. This script is based on UNIX shell scripts, but uses SSH for increased security. SSH uses user-id based security.

For information on configuring the script version of Node Manager, see Configuring Script-based Node Manager. For information on using this version of Node Manager, see Running Script-based Node Manager.

This version does not provide as much security as the Java-based version. However, the advantage of the script-based Node Manager is that it can remotely manage servers over a network that has been configured to use SSH. No additional server installation is required. The scripts merely have to be copied to the remote machine.

Note: It is recommended that you run script-based Node Manager as an operating system service, which allows it to restart automatically when the system is rebooted.



Accessing Node Manager

A Node Manager client can be local or remote to the Node Managers with which it communicates. You access either version of Node Manager—the Java version or the script-based (SSH) version—from the following clients. (In addition, an SSH client in the form of a shell command template is provided for use with the script-based Node Manager.)



What You Can Do with Node Manager

The following sections describe basic Node Manager functionality.

Start, Shut Down, and Restart an Administration Server

Using the WebLogic Scripting Tool (or SSH client for Script-based Node Manager only), you connect to the Node Manager process on the machine that hosts the Administration Server and issue commands to start, shut down, or restart an Administrative Server. The relationship of an Administration Server to Node Manager varies for different scenarios.

Start, Shut Down, Suspend, and Restart Managed Servers

From the WebLogic Server Scripting Tool (WLST) command line or scripts, you can issue commands to Node Manager to start, shut down, suspend, and restart Managed Server instances and clusters.

Node Manager can restart a Managed Server after failure even when the Administration Server is unavailable if Managed Server Independence (MSI) mode is enabled for that Managed Server instance. This is enabled by default.

Note: Node Manager cannot start a Managed Server for the first time in MSI mode, because at the Administration Server for the domain must be available so the Managed Server can obtain its configuration settings.

Note: Node Manager uses the same command arguments that you supply when starting a Managed Server with a script or at the command line. For information about startup arguments, see weblogic.Server Command-Line Reference in WebLogic Server Command Reference.

Restart Administration and Managed Servers

If a server instance that was started using Node Manager fails, Node Manager automatically restarts it.

Note: Node Manager can only restart a server that was started via Node Manager.

The restart feature is configurable. Node Manager's default behavior is to:

If Node Manager fails or is explicitly shut down, upon restart, it determines the server instances that were under its control when it exited. Node Manager can restart any failed server instances as necessary.

Note: It is advisable to run Node Manager as an operating system service, so that it restarts automatically if its host machine is restarted.

Monitor Servers and View Log Data

Node Manager creates a log file for the Node Manager process and a log file of server output for each server instance it controls. You can view these log files, as well as log files for a server instance using the Administration Console or WLST commands.



How Node Manager Works in the WebLogic Server Environment

The following sections provide a "big picture" diagram of Node Manager's role in the WebLogic Server environment, as well as illustrations and descriptions of the processes Node Manager uses to communicate with servers:

Diagram of Node Manager and Servers

Figure 3-1 illustrates the relationship between Node Manager, its clients, and the server instances it controls.

Figure 3-1 Node Manager in the WebLogic Server Environment

Node Manager in the WebLogic Server Environment




How Node Manager Starts an Administration Server

Figure 3-2 illustrates the process of starting an Administration Server with Node Manager.

This section assumes that you have installed the Administration Server and created its domain directory using the Configuration Wizard.

Node Manager is running on Machine A, which hosts the Administration Server. The stand-alone Node Manager client is remote.

Figure 3-2 Starting an Administration Server

Starting an Administration Server



  1. An authorized user issues the WLST offline command, nmConnect to connect to the Node Manager process on the machine that hosts the Administration Server, and issues a command to start the Administration Server. (If the Node Manager instance is the SSH version, the user can connect using the SSH client).

    2. The start command identifies the domain and server instance to start, and in the case of the Java Node Manager, provides the Node Manager username and password.

    Note: If the user has previously connected to the Node Manager, a boot.properties file exists, and the user does not have to supply username and password.

  2. Node Manager looks up the domain directory in nodemanager.domains, and authenticates the user credentials using a local file that contains the encrypted username and password.
  3. Node Manager creates the Administration Server process.
  4. The Administration Server obtains the domain configuration from its config directory.

How Node Manager Starts a Managed Server

Figure 3-3 illustrates the process of starting a Managed Server with Node Manager.

Node Manager is running on Machine B, which hosts Managed Server 1. The Administration Server for the domain is running on Machine A.

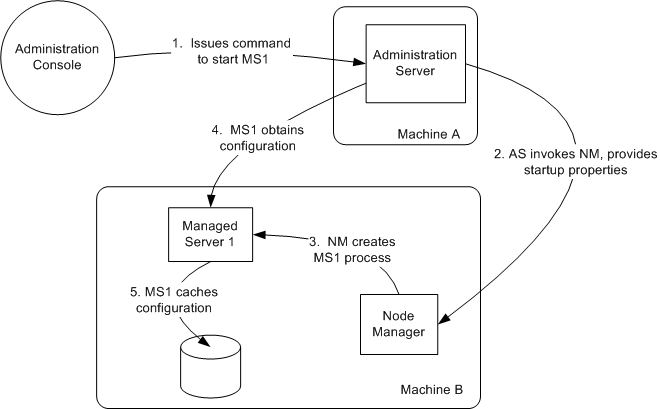

Figure 3-3 Starting a Managed Server

Starting a Managed Server



  1. From the Administration Console, the user issues a start command for Managed Server 1.

    2. Note: A stand-alone client can also issue a start command for a Managed Server.

  2. The Administration Server issues a start command for Managed Server 1 to the Node Manager on the Machine B, providing the remote start properties configured for Managed Server 1. For information about the arguments and how to specify them, see Configuring Remote Startup Arguments.
  3. Node Manager starts Managed Server 1.

    4. Node Manager starts the Managed Server using the same root directory where the Node Manager process is running. To run the Managed Server in a different directory, set the Root Directory attribute in the Server—>Configuration—>Server Start console page.

  4. Managed Server 1 contacts the Administration Server to check for updates to its configuration information.
  5. If there are outstanding changes to the domain configuration, Managed Server 1 updates its local cache of configuration data.

How Node Manager Restarts an Administration Server

Figure 3-4 illustrates the process of restarting an Administration Server with Node Manager.

Node Manager is running on the machine that hosts the Administration Server. The Administration Server, which was initially started with Node Manager, has exited. The Administration Server's AutoRestart attribute is set to true.

Note: If a server instance's AutoRestart attribute is set to false, Node Manager will not restart it.

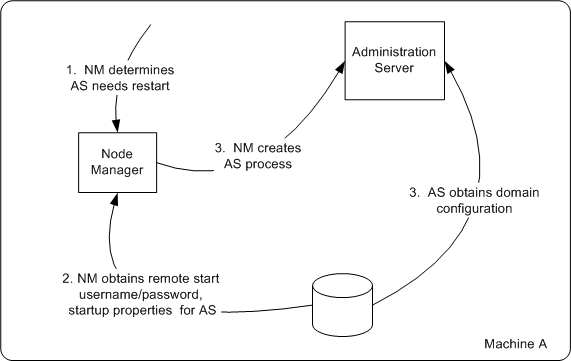

Figure 3-4 Restarting an Administration Server

Restarting an Administration Server



  1. Node Manager determines from the Administration Server process exit code that it requires restart.
  2. Node Manager obtains the username and password for starting the Administration Server from the boot.properties file, and the server startup properties from the <server_name>/data/nodemanager/startup.properties file.
  3. Node Manager starts the Administration Server.
  4. The Administration Server reads its configuration data and starts up.

How Node Manager Restarts a Managed Server

Figure 3-5 illustrates process of restarting a Managed Server with Node Manager.

Node Manager is running on Machine B, which hosts Managed Server 1. Managed Server 1, which was initially started with Node Manager, has exited. Managed Server 1's AutoRestart attribute is set to true.

Note: If a server instance's AutoRestart attribute is set to false, Node Manager will not restart it.

Figure 3-5 Restarting a Managed Server

Restarting a Managed Server



  1. Node Manager determines from Managed Server 1's last known state that it requires restarting.
  2. Node Manager obtains the username and password for starting Managed Server 1 from the boot.properties file, and the server startup properties from the startup.properties file. These server-specific files are located in the server directory for Managed Server 1.
  3. Node Manager starts Managed Server 1.

    4. Note: Node Manager waits RestartDelaySeconds after a server instances fails before attempting to restart it.

  4. Managed Server 1 attempts to contact the Administration Server to check for updates to its configuration data. If it contacts the Administration Server and obtains updated configuration data, it updates its local cache of the config directory.
  5. If Managed Server 1 fails to contact the Administration Server, and if Managed Server Independence mode (MSI) is enabled, Managed Server 1 uses its locally cached configuration data.

    6. Note: Managed Server Independence mode is enabled by default.

Node Manager-Defined States for Restarting Managed Servers

Node Manager defines its own, internal Managed Server states for use when restarting a server. If Node Manager is configured to restart Managed Servers, you may observe these states in the Administration Console during the restart process.

How Node Manager Shuts Down a Server Instance

Figure 3-6 illustrates the communications involved in shutting down a Managed Server that is under Node Manager control. Depending on the state and availability of the Managed Server, Node Manager might need to try alternative strategies to successfully initiate the shutdown.

Node Manager is running on Machine B, which hosts Managed Server 1.

Figure 3-6 Shutting Down a Server Instance Under Node Manager Control

Shutting Down a Server Instance Under Node Manager Control



  1. Through the Administration Console, an authorized user issues a shutdown command for Managed Server 1.
  2. The Administration Server issues the shutdown command directly to Managed Server 1. If it successfully contacts Managed Server 1, Managed Server 1 performs the shutdown sequence described in Graceful Shutdown in Managing Server Startup and Shutdown.
  3. If, in the previous step, the Administration Server failed to contact Managed Server 1, it issues a shutdown command for Managed Server 1 to Node Manager on Machine B.
  4. Node Manager issues a request to the operating system to kill Managed Server 1.
  5. The operating system ends the Managed Server 1 process.

Node Manager and System Crash Recovery

The CrashRecoveryEnabled configuration property allows Node Manager to recover from a system crash. The property is enable by default.

After the system is restarted, Node Manager checks each managed domain specified in the nodemanager.domains file to determine if there are any server instances that were not cleanly shutdown. This is determined by the presence of any lock files which are created by Node Manager when a WebLogic Server process is created. This lock file contains the process identifier for WebLogic Server startup script. If the lock file exists, but the process ID is not running, Node Manager will attempt to automatically restart the server.

If the process is running, Node Manager performs an additional check to access the management servlet running in the process to verify that the process corresponding to the process ID is a WebLogic Server instance.

Note: When Node Manager performs a check to access the management servlet, an alert may appear in the server log regarding improper credentials.



Diagram of Node Manager Configuration and Log Files

In managing multiple servers, Node Manager uses multiple configuration files and outputs log files to multiple directories, as shown in the following figure. For a description of these files, see Node Manager Log and Configuration Files.

Figure 3-7 Node Manager Configuration and Logging Environment

Node Manager Configuration and Logging Environment






Overview of Node Manager Configuration

Node Manager must run on each computer that hosts WebLogic Server instances that you want to control with Node Manager. Configure each computer as a Machine in WebLogic Server, and assign each server instance that you will control with Node Manager to the machine upon which it runs.

Ideally, Node Manager should run as an operating system service or daemon, so that it is automatically restarted in the event of system failure or reboot. For more information, see "Installing the Node Manager as a Windows Service" in the Installation Guide.

Node Manager is ready-to-run after WebLogic Server installation if you run Node Manager and the Administration Server on the same machine, and use the demonstration SSL configuration. By default, the following behaviors are configured:

The following sections provide Node Manager configuration information:



Controlling and Configuring Node Manager Using WLST

The WebLogic Scripting Tool (WLST) is a command-line scripting interface that system administrators and operators use to monitor and manage WebLogic Server instances and domains. You can start, stop, and restart server instances remotely or locally, using WLST as a Node Manager client. In addition, WLST can obtain server status and retrieve the contents of the server output log. For more information about using WLST to control Node Manager, see "Using Node Manager to Control Servers" in Managing Server Startup and Shutdown.

Using nmConnect() in a Production Environment

By default, the nmConnect() command cannot be used in a production environment. You must perform the following procedures to use nmConnect in a production environment.

  1. Start the administration server.
  2. Using the Administration Console update the Node Manager credentials from the Advanced options under domain_name—>Security—>General.
  3. Start WLST in online mode.
  4. Run nmEnroll() using the following as an example:

    5. nmEnroll('C:/bea/wls900/user_projects/domains/prod_domain',
    'C:/bea/wls900/weblogic90/common/nodemanager')

    Running nmEnroll() ensures that the correct NodeManager user and password token are supplied to each managed server. Once these are available for each managed server, you can use nmConnect() in a production environment.

    Note: You must run nmEnroll() on each machine that is running a managed server. Additionally, you should run nmEnroll() for each domain directory on each machine.



Configuring Java-based Node Manager

It is recommended that you configure Node Manager to run as an operating system service or a Windows service on Windows systems. By default, the operating system service starts up Node Manager to listen on localhost:5556.

When you configure Node Manager to accept commands from remote systems, you must uninstall the default Node Manager service, then reinstall it to listen on a non-localhost Listen Address.

Depending on your platform, follow the instructions in Reconfigure Startup Service for Windows Installations or Configuring Java-based Node Manager Security.

The following sections provide configuration information specific to Java-based Node Manager:

Reconfigure Startup Service for Windows Installations

The directory WL_HOME\server\bin (where WL_HOME is the top-level directory for the WebLogic Server installation) contains uninstallNodeMgrSvc.cmd, a script for uninstalling the Node Manager service, and installNodeMgrSvc.cmd, a script for installing Node Manager as a service.

  1. Delete the service using uninstallNodeMgrSvc.cmd.
  2. Edit installNodeMgrSvc.cmd to specify Node Manager's Listen Address and Listen Port.

    3. Make the same edits to uninstallNodeMgrSvc.cmd as you make to installNodeMgrSvc.cmd, so that you can successfully uninstall the service in the future, as desired.

  3. Run installNodeMgrSvc.cmd to re-install Node Manager as a service, listening on the updated address and port.

Configuring Java-based Node Manager Security

Node Manager security relies on a one-way SSL connection between the client and server.

If you are establishing a command line connection to the Java Node Manager using the WebLogic Server Scripting Tool (WLST) nmConnect command, you provide the Node Manager user name and password. Node Manager verifies the username and password against the domain's nm_password.properties file.

Node Manager credentials are located on the Security>General>Advanced Options Console page.

Administration Console users do not need to explicitly provide credentials to connect to Node Manager—the Node Manager user name and password are available in the domain configuration and are provided automatically.

Remote Server Start Security for Java-based Node Manager

A remote start user name and password is required to start a server instance with Node Manager. These credentials are provided differently for Administration Servers and Managed Servers.

Any server instance started by Node Manager encrypts and saves the credentials with which it started in a server-specific boot.properties file, for use in automatic restarts.

Reviewing nodemanager.properties

Node Manager properties define a variety of configuration settings for a Java-based Node Manager process. You can specify Node Manager properties on the command line or define them in the nodemanager.properties file, which is created in the directory where you start Node Manager the first time it starts up after installation of WebLogic Server. Values supplied on the command line override the values in nodemanager.properties.

nodemanager.properties is created in the directory specified in NodeManagerHome. If NodeManagerHome is not defined, nodemanager.properties is created in the current directory.

Each time you start Node Manager, it looks for nodemanager.properties in the current directory, and creates the file if it does not exist in that directory. You cannot access the file until Node Manager has started up once.

Table 3-1 describes Node Manager properties.

In many environments, the SSL-related properties in nodemanager.properties may be the only Node Manager properties that you must explicitly define. However, nodemanager.properties also contains non-SSL properties in that you might need to specify, depending on your environment and preferences. For example:

Configuring Node Manager to Use Start and Stop Scripts

You can configure Node Manager to use a script to start a managed server or to execute a script after server shutdown has completed. These scripts can be used to perform tasks that need to be peformed before a server is started or after it is shutdown. Mounting and unmounting remote disks is one example of a task that can be performed using scripts.

Note: Node Manager uses startup scripts to perform any required configration, then start the server. In contrast, stop scripts are executed after the server has shutdown.

Using Start Scripts

You can use a start script allows you to specify required startup properties and perform any other work you need performed at start up. To define a start script:

  1. In the nodemanager.properties file, set the StartScriptEnabled property to true. (The default is false.) If your start script is named startWebLogic.sh or startWebLogic.cmd, Node Manager uses one of those scripts as the default.
  2. If you want to specify a custom start script, set the StartScriptName property to the name of your script in the nodemanager.properties file

Using Stop Scripts

You can use a stop script to perform any tasks that are required after the server has shutdown. To define a stop script:

  1. In the nodemanager.properties file, set the StopScriptEnabled property to true.
  2. Set the StopScriptName property to the name of your script in the nodemanager.properties file.

The following example shows a stop script that can be used to unmout a disk on UNIX systems:

#!/bin/sh
FS=/cluster/d2
if grep $FS /etc/mnttab > /dev/null 2>&1 ; then
sync
	PIDS=\Q/usr/local/bin/lsof $FS | awk
	'{if ($2 ~/[0-9]+/) { print $2} }' | sort -u\Q
kill -9 $PIDS
sleep 1
sync
	/usr/sbin/umount -f $FS
fi

Using SSL With Java-based Node Manager

Administration Servers and Managed Servers communicate with Java-based Node Manager using one-way SSL.

The default WebLogic Server installation includes demonstration Identity and Trust keystores that allow you to use SSL out of the box. The keystores—DemoIdentity.jks and DemoTrust.jks—are installed in WL_HOME/server/lib. For testing and development purposes, the keystore configuration is complete.

Configuring SSL for a production environment involves obtaining identity and trust for the Node Manager and each Administration and Managed Server with which the Node Manager will be communicating and then configuring the Node Manager, the Administration Server, and any Managed Servers with the proper identity and trust. In addition, the use of host name verification and the Administration port must be taken into consideration. To configure production SSL components, see Configuring the SSL Protocol in Managing WebLogic Security.

Configuring Node Manager on Multiple Machines

If you have a domain that has managed servers on multiple physical machines, you must ensure that Node Manager is installed and configured on each machine. You can use the WLST command nmEnroll to copy all of the required domain and configuration information from one machine to another. For more information, see nmEnroll in WebLogic Scripting Tool.

Deprecated Node Manager Properties

This section lists the Node Manager properties that are deprecated in WebLogic Server 9.x.

Note: These properties are published for backwards compatibility and should not be used. SSL configurations will continue to work when migrating to WebLogic Server 9.x. However, the trust key store is not used when running Node Manager. As in previous versions of WebLogic Server, the Node Manager private key will have to be added to the trusted key store for all client machines accessing Node Manager.

Table 3-2

Node Manager Property

Description

Reason Deprecated

CustomTrustKeyPass
Phrase (Deprecated)

The password used to access the encrypted private key in the key file.

Using 1-way SSL, Node Manager does not need access to a trusted key store.

CustomTrustKeyStore
FileName (Deprecated)

Specifies the file name of the Trust keystore (meaning the keystore that contains the trusted CA certificates for the Node Manager). This property is required when the Keystores property is set as CustomIdentityandCustomTrust.

Using 1-way SSL, Node Manager does not need access to a trusted key store.

CustomTrustKeyStore
PassPhrase
(Deprecated)

Specifies the password defined when creating the Trust keystore. This field is optional or required depending on the type of keystore. All keystores require the passphrase in order to write to the keystore. However, some keystores do not require the passphrase to read from the keystore. WebLogic Server only reads from the keystore, so whether or not you define this property depends on the requirements of the keystore.

Using 1-way SSL, Node Manager does not need access to a trusted key store.

CustomTrustKeyStore
Type (Deprecated)

Specifies the type of the Trust keystore. Generally, this is JKS. This property is optional.

Using 1-way SSL, Node Manager does not need access to a trusted key store.

JavaStandardTrustKey
StorePassPhrase
(Deprecated)

Specifies the password defined when creating the Trust keystore. This field is optional or required depending on the type of keystore. All keystores require the passphrase in order to write to the keystore. However, some keystores do not require the passphrase to read from the keystore. WebLogic Server only reads from the keystore, so whether or not you define this property depends on the requirements of the keystore.This property is required when the Keystores property is set as CustomIdentityandJavaStandardTrust or DemoIdentityAndDemoTrust.

Using 1-way SSL, Node Manager does not need access to a trusted key store.
Deprecated Node Manager Properties



Configuring Script-based Node Manager

The SSH Node Manager is a shell script, wlscontrol.sh, located in NodeManagerHome/. wlscontrol.sh must exist on each machine that hosts server instances that you want to control with Node Manager. This script can be customized to meet site-specific requirements.

You must have an SSH client executable on each machine where Node Manager or a Node Manager client runs. Typically, an SSH client is a standard part of a Unix or Linux installation.

The following sections describe how to configure script-based Node Manager:

Creating a Node Manager User

Before running Node Manager, you should create a dedicated UNIX user account for performing Node Manager functions. This user should be added to all machines that will host the SSH Node Manager and to all machines that will host a Node Manager client, including the Administration Server.

Overriding the Default SSH Port

The default SSH port used by Node Manager is 22. You can override that setting in the following ways:

Configuring Script-based Node Manager Security

The Node Manager SSH shell script relies on SSH user-based security to provide a secure trust relationship between users on different machines. Authentication is not required. You create a UNIX user account—typically one per domain—for running Node Manager commands and scripts. A user logged in as this user can issue Node Manager commands without providing a username and password.

Remote Server Start Security for Script-based Node Manager

A remote start user name and password is required to start a server instance with Node Manager. These credentials are provided differently for Administration Servers and Managed Servers.

Any server instance started by Node Manager encrypts and saves the credentials with which it started in a server-specific boot.properties file, for use in automatic restarts.

Generating and Distributing Key Value Pairs

The script-based Node Manager uses two types of key value pairs. This section contains instructions for distributing key value pairs to the machines that will host a Node Manager client or server.

Shared Key Value Pair

This option distributes the same key value pair to all machines that will host a Node Manager client or server.

The simplest way to accomplish this is to set up your LAN to mount the Node Manager user home directory on each of the machines. This makes the key value pair available to the machines. Otherwise

  1. Generate an RSA key value pair for the user with the ssh-keygen command provided with your SSH installation.

    2. The default location for the private and public keys are ~/.ssh/id_rsa and ~/.ssh/id_rsa.pub respectively.

    If these keys are stored in a different location, modify the ShellCommand template, adding an option to the ssh command to specify the location of the keys.

  2. Append the public key to the ~/.ssh/authorized_keys file on the Node Manager machine. For example:

    3. command="/home/bea/server90/common/nodemanager/nodemanager.sh" 1024 33 23...2323

    in which the you substitute the public key that you generated, as stored in id_rsa.pub, for the string shown in the example as

    024 33 23...2323

    Note: The prefix command=<command> ensures that a user that establishes a session with the machine using the public key can only run the command specified—nodemanager.sh. This ensures that the user can only perform Node Manager functions, and prevents unauthorized access to data, system utilities, or other resources on the machine.

  3. Manually distribute the key value pair to each machine that will host a Node Manager server instance or client.
  4. Execute the following command on the client machine to check that the Node Manager client can access the Node Manager:

    5. /home/bea$ ssh montgomery VERSION

    This response indicates that the client accessed Node Manager successfully:

    +OK NodeManager v9.1.0

Individual Key Value Pairs

On each machine that will host a Node Manager client:

  1. Generate a separate RSA key value pair for the Node Manager user as described in step one in the previous section.
  2. Append the public key to the machine's ~/.ssh/authorized_keys file user as described in step two in the previous section.



Additional Configuration Information

The following sections provide additional Node Manager configuration information:

Configuring a Machine to Use Node Manager

A WebLogic Server Machine resource associates a particular machine with the server instances it hosts, and specifies the connection attributes for the Node Manager process on that system.

Configure a machine definition for each machine that runs a Node Manager process using the Environment—>Machines—><machine_name>—>Node Manager page in the Administration Console. Enter the DNS name or IP address upon which Node Manager listens in the Listen Address box.

Configuring nodemanager.domains File

The nodemanager.domains file specifies the domains that a Node Manager instance controls. Thus stand-alone clients do not need to specify the domain directory explicitly.

This file must contain an entry specifying the domain directory for each domain the Node Manager instance controls, in this form:

<domain-name>=<domain-directory>

When a user issues a command for a domain, Node Manager looks up the domain directory from nodemanager.domains.

This file provides additional security by restricting Node Manager client access to the domains listed in this file. The client can only execute commands for the domains listed in nodemanager.domains.

If you created your domain with the Configuration Wizard, the nodemanager.domains file was created automatically. If necessary, you can manually edit nodemanager.domains to add a domain.

Note: If you use the backslash character (\) in nodemanager.domains, you must escape it as (\\).

Configuring Remote Startup Arguments

In the Server—>Configuration—>Server Start page for the Managed Server, specify the startup arguments that Node Manager will use to start a Managed Server. If you do not specify startup arguments for a Managed Server, Node Manager uses its own properties as defaults to start the Managed Server. For more information, see Table 3-1. Although these defaults are sufficient to boot a Managed Server, to ensure a consistent and reliable boot process, configure startup arguments for each Managed Server instance.

If you will run Node Manager as a Windows Service, as described in "Installing the Node Manager as a Windows Service" in the Installation Guide, you must configure the following JVM property for each Managed Server that will be under Node Manager control:

If you do not set this option, Node Manager will not be able to restart a Managed Server after a system reboot, due to this sequence of events:

  1. A reboot causes a running Managed Server to be killed before the Node Manager and Administration Server operating system services are shut down.
  2. During the interval between the Managed Server being killed, and the Node Manager service being shut down, Node Manager continues to monitor the Managed Server, detects that it was killed, and attempts to restart it.
  3. The operating system does not allow restart of the Managed Server because the machine is shutting down.
  4. Node Manager marks the Managed Server as failed, and it will not start this server when the machine comes up again.

Starting a Managed Server with the -Xrs or -Xnohup option avoids this sequence of events by preventing the immediate shutdown of the Managed Server during machine shutdown.

Setting Server Startup Properties

You can use Node Manager to set the startup properties for a server. These properties can be defined in startup.properties or passed as an object using administrative utilities such as WLST. The methods of setting startup properties and their valid values are outlined in the sections below.

startup.properties

Node Manager uses the startup.properties file to determine the startup and configuration when starting a server. This file is defined for each server instance and is located in:

domain_home/servers/server_name/data/nodemanager/startup.properties

The contents of startup.properties are derived from the Server Mbean, or the Cluster Mbean if the server is part of a cluster. For more information, see the Mbean reference.

Setting Startup Properties Using Administration Utilities

When using the WLST nmStart() command, the server configuration can not be determined directly. Therefore, you must pass the server start properties as a WLST properties object to the nmStart() command.

Server Startup Properties

The following server startup properties can be passed to a server when started via Node Manager.

Property

Description

JavaHome

Defines the Java home directory used when starting the server.

Arguments

The arguments used when starting the server.

SSLArguments

These arguments are used when you have enabled the domain-wide administration port.

RestartMax

The number of times Node Manager can attempt to restart the server.

RestartDelaySeconds

The number of seconds Node Manager should wait before attempting to restart the server.

ClassPath

The classpath to use when starting a server.

BEAHome

The BEA home directory to use when starting a server.

AdminURL

The URL of the administration server.

Note: This value should only be specified in the startup.properties file for a managed server.

AutoRestart

Specifies whether Node Manager can automatically restart this server if it fails.

AutoKillIfFailed

Specifies whether Node Manager should automatically kill the server if its health status is failed.

SecurityPolicyFile

Specifies the security policy file to use when starting this server.

ServerIP

The IP address of the server.

Ensuring Administration Server Address Is Defined

Make sure that a Listen Address is defined for each Administration Server that will connect to the Node Manager process. If the Listen Address for an Administration Server is not defined, when Node Manager starts a Managed Server it will direct the Managed Server to contact localhost for its configuration information.

Set the Listen Address using the Servers—>Configuration—>General page in the Administration Console.

Setting Node Manager Environment Variables

Node Manager requires you to set several environment variables before you start it.

You can set these variables manually on the command line or you can create a start script that sets them automatically. The sample start scripts provided with WebLogic Server —startNodeManager.cmd and startNodeManager.sh — set the required variables.

Table 3-3 Node Manager Environment Variables

Environment Variable

Description

JAVA_HOME

JDK root directory used by Node Manager. For example:

set JAVA_HOME=c:\bea\jdk131

Node Manager has the same JDK version requirements as WebLogic Server.

WL_HOME

WebLogic Server installation directory. For example:

set WL_HOME=c:\bea\weblogic700

PATH

Must include the WebLogic Server bin directory and path to your Java executable. For example:

set PATH=%WL_HOME%\server\bin;%JAVA_HOME%\bin;%PATH%

LD_LIBRARY_
PATH
(UNIX only)

For HP UX and Solaris systems, you must include the path to the native Node Manager libraries.

Solaris example:

LD_LIBRARY_PATH:$WL_HOME/server/lib/solaris:$WL_HOME/server/lib/solaris/oci816_8

HP UX example:

SHLIB_PATH=$SHLIB_PATH:$WL_HOME/server/lib/hpux11:$WL_HOME/server/lib/hpux11/oci816_8

CLASSPATH

You can set the Node Manager CLASSPATH either as an option on the java command line used to start Node Manager, or as an environment variable.

Windows NT example:

set CLASSPATH=.;%WL_HOME%\server\lib\weblogic_sp.jar;%WL_HOME%\server\lib\weblogic.jar



Starting and Running Node Manager

The following sections provide information on how to start and run Java-based and script-based Node Manager:

Running Node Manager as a Startup Service

It is recommended that you install Node Manager to run as a startup service. This allows Node Manager to start up automatically each time the system is restarted.

By default, Node Manager listens only from the local host. If you want Node Manager to accept commands from remote systems, you must uninstall the default Node Manager service, then reinstall it to listen on a non-localhost Listen Address.

Starting Java-based Node Manager Using Scripts

Although running Node Manager as an operating system service is recommended, you can also start Node Manager manually at the command prompt or with a script. The environment variables Node Manager requires are described in Setting Node Manager Environment Variables.

Sample start scripts for Node Manager are installed in the WL_HOME\server\bin directory, where WL_HOME is the top-level installation directory for WebLogic Server. Use startNodeManager.cmd on Windows systems and startNodeManager.sh on UNIX systems.

The scripts set the required environment variables and start Node Manager in WL_HOME/common/nodemanager. Node Manager uses this directory as a working directory for output and log files. To specify a different working directory, edit the start script with a text editor and set the value of the NODEMGR_HOME variable to the desired directory.

Edit the sample start script to make sure that the command qualifiers set the correct listen address and port number for your Node Manager process.

Command Syntax for Starting Java-based Node Manager

The syntax for starting Java-based Node Manager is:

java [java_option=value ...] -D[nodemanager_property=value] -D[server_property=value] weblogic.NodeManager

where:

Notes: For UNIX systems:

If you run Node Manager on a UNIX operating system other than Solaris or HP UX, you cannot have any white space characters in any of the parameters that will be passed to the java command line when starting Node Manager. For example, this command fails due to the space character in the name "big iron".

-Dweblogic.Name="big iron"

For UNIX systems other than Solaris, HP-UX, and Linux operating systems, you must disable the weblogic.nodemanager.nativeVersionEnabled option at the command line when starting Node Manager (or set the property in nodemanager.properties) to use the pure Java version. For more information, see Reviewing nodemanager.properties.

Running Script-based Node Manager

To use the SSH Node Manager Command Shell, start the Administration Server using the following command line option:

-Dweblogic.nodemanager.ShellCommand='ssh -o PasswordAuthentication=no %H wlscontrol.sh -d %D -r %R -s %S %C'

The weblogic.nodemanager.ShellCommand attribute specifies the command template to use to communicate with a remote SSH Node Manager and execute Node Manager functions for server instances under its control.

The template assumes that wlscontrol.sh is in the default search path on the remote machine hosting Node Manager.

The ShellCommand syntax is:

ssh -o PasswordAuthentication=no %H wlscontrol.sh -d %D -r %R -s %S %C'

The possible command line options are listed in Table 3-4. The possible parameter values are listed in Table 3-5.

For example, if you type this command,

ssh -o PasswordAuthentication=no wlscontrol.sh myserver start

The listen address and port of the SSH server default to the listen address and port used by Node Manager on the remote machine. The domain name and domain directory are assumed to be the root directory specified for the target server instance, myserver.

This command:

ssh -o PasswordAuthentication=no 172.11.111.11 wlscontrol.sh -d ProductionDomain -r ProductionDomain -s ServerA'

issues a START command to the server instance named ServerA, in the domain called ProductionDomain, located in the domains/ProductionDomain directory.

The ssh command must include the string:

-o PasswordAuthentication=no

This string passes the ssh PasswordAuthentication option. A value of yes causes the client to hang when it tries to read from the console.

Table 3-4 wlscontrol.sh Command Line Options

Parameter

Description

-n

Specifies the Node Manager root directory

-s

Specifies the server name

-r

Specifies the domain directory

-x

Sets the Node Manager debug flag.

-c

Enables a server start script.

-f

The name of the server start script.

-p

The name of the server stop script.

-h

Prints the usage for wlscontrol.sh.

Table 3-5 Shell Command Templates

Parameter

Description

Default

%H

Host name of the SSH server

NodeManagerMBean.ListenAddress

%P

Port number of SSH server

NodeManagerMBean.ListenAddress

22

%S

WebLogic server name

none

%D

WebLogic domain name

ServerStartMBean.RootDirectory

%R

Domain directory (server root)

ServerStartMBean.RootDirectory

%C

Node manager script command

  • START—Start server

  • KILL—Kill server

  • STAT—Get server status

  • GETLOG—Retrieve server output log.

  • VERSION—Return Node Manager version.

none



Stopping Node Manager

To stop Node Manager, close the command shell in which it is running.



Node Manager Log and Configuration Files

The following sections describe Node Manager configuration and log files:

Configuration Files

Except where noted, configuration files apply to both Java-based and script-based Node Manager.

nodemanager.properties

This is the configuration file used by the Java-based version of Node Manager.See Reviewing nodemanager.properties.

This file is located in WL_HOME/common/nodemanager.

nodemanager.hosts

This file contains a list of all the trusted hosts that can issue commands to Node Manager.

This file is located in WL_HOME/common/nodemanager.

nodemanager.domains

This file contains mappings between the names of domains managed by Node Manager and their corresponding directories. See Configuring nodemanager.domains File.

This file is located in WL_HOME/common/nodemanager.

nm_data.properties

This file stores the encryption data the Node Manager uses a symmetric encryption key. The data is stored in encrypted form.

This file is located in WL_HOME/common/nodemanager.

nm_password.properties

This file stores a username/password pair specific to the Node Manager server that is managing this domain. This is known as the Node Manager secret. The username and password are appended to a salt value (obtained from the SerializedSystemIni.dat of the domain) and SHA-hashed.

This file is located in DOMAIN_HOME/config/nodemanager.

boot.properties

Node Manager uses this file to specify a boot identity when starting a server. See Additional Configuration Information.

This file is located in domain-name/servers/server_name/data/nodemanager.

startup.properties

Each Managed Server instance has its own startup.properties file with properties that control how Node Manager starts up and controls the server. Node Manager automatically creates this file by using properties passed to Node Manager when the Administrative Server was last used to start the server. This allows a Node Manager client or startup scripts to restart a Managed Server using the same properties last used by the Administrative Server.

For more information on startup.properties, see Setting Server Startup Properties. These properties correspond to the server startup attributes contained in ServerStartMBean and the health monitoring attributes in ServerStartMBean.

This file is located in domain-name/servers/server_name/data/nodemanager.

server_name.addr

server_name.addr stores the IP address added when a server starts or is migrated. This file is generated after the server IP address is successfully brought online during migration. server_name.addr is deleted when the IP address is brought offline. The server IP address is used to validate remove requests to prevent addresses being erroneously removed while shutting down the server.

This file is located in domain-name/servers/server_name/data/nodemanager.

server_name.lck

server_name.lck is generated by each server and contains an internally used lock ID.

This file is located in domain-name/servers/server_name/data/nodemanager

server_name.pid

server_name.pid is generated by each server and contains the process ID of the server. Node Manager checks the process ID generated by the server during crash recovery.

This file is located in domain-name/servers/server_name/data/nodemanager

server_name.state

server_name.state is generated by the server and contains the server's current state. Node Manager monitors the contents of this file to determine the current state of the server.

Note: Do not delete or alter this file. Without this file Node Manager cannot determine the current state of the server.

This file is located in domain-name/servers/server_name/data/nodemanager.

Log Files

Use the Node Manager and WebLogic Server log files to help troubleshoot problems in starting or stopping individual Managed Servers.

Table 3-6 Node Manager Log File Locations

Log File

Location

Node Manager Log File

NodeManagerHome/nodemanager.log

Node Manager Server Instance Log Files

domain-name/servers/<server-name>/logs/<server-name>.out

Web Logic Server Log Files

domain-name/servers/<server-name>/logs/<server_name>.log

nodemanager.log

Node Manager creates a log file located in NodeManagerHome/nodemanager.log. This log file stores data about all of the domains administered by Node Manager.

This log file is generated by Node Manager and contains data for all domains that are controlled by Node Manager on a given physical machine. See nodemanager.log.

This file is located in WL_HOME/common/nodemanager.

Log output is appended to the current nodemanager.log. Log rotation is disabled by default, but can be enabled by setting LogCount in nodemanager.properties.

You can view the Node Manager log file by:

server_name.out

For each server instance that it controls, Node Manager maintains a log file that contains stdout and stderr messages generated by the server instance. If the remote start debug property is enabled as a remote start property for the server instance, or if the NodeManager debug property is enabled, Node Manager will include additional debut information in the server output log information.

Note: You cannot limit the size of the log files Node Manager creates. Logging to stdout is disabled by default.

This file is located in domain_name/servers/<server_name>/logs

Node Manager creates the server output log for a server instance in the server instance's logs directory, with the name:

server-name.out

where server-name is the name of the server instance.

You can view the Node Manager log file for a particular server instance by:

There is no limit to the number of server output logs that Node Manager can create.

WebLogic Server Log Files

A server instance under Node Manager control has its own log file, in addition to the log file created by Node Manager.

You can view the regular log file for a server instance by selecting Diagnostics->Log Files, selecting the server log file, and clicking View.



Troubleshooting Node Manager

The table below describes common Node Manager problems and their solutions.

Table 3-7 Troubleshooting Node Manager.

Symptom

Explanation

Error message: Could not start server 'MyServer' via Node Manager - reason: 'Target machine configuration not found'.

You have not assigned the Managed Server to a machine. Follow the steps in Configuring a Machine to Use Node Manager.

Error message: <SecureSocketListener: Could not setup context and create a secure socket on 172.17.13.26:7001>

The Node Manager process may not be running on the designated machine. See Starting and Running Node Manager.

Self-health monitoring attributes are configured for a server, but Node Manager doesn't automatically restart the server.

To automatically reboot a server, you must configure the server's automatic restart attributes as well as the health monitoring attributes. Starting and Running Node Manager.

In addition, in order to restart a Managed Server instance with Node Manager, you must have started the Managed Servers using Node Manager. You cannot automatically reboot servers that were started outside of the Node Manager process (for example, servers started directly at the command line).

Applications on the Managed Server are using the wrong directory for lookups.

Applications deployed to WebLogic Server should not operate on any assumptions about the current working directory. File lookups should generally take place relative to the Root Directory obtained with the ServerMBean.getRootDirectory() method (this defaults to the "." directory). For example, to perform a file lookup, use code similar to

String rootDir = ServerMBean.getRootDirectory();
 //application root directory
File f = new File(rootDir + File.separator +
 "foo.in");

rather than simply:

File f = new File("foo.in");

If an application is deployed to a server that is started using Node Manager, use the following method calls instead:

String rootDir //application root directory
if ((rootDir = ServerMBean.getRootDirectory()) ==
 null) rootDir =
 ServerStartMBean.getRootDirectory();
File f = new File(rootDir + File.separator +
 "foo.in");

The ServerStartMBean.getRootDirectory() method obtains the Root Directory value that you specified when configuring the server for startup using Node Manager. (This corresponds to the Root Directory attribute specified the Configuration—>Remote Start page of the Administration Console.)



Skip navigation bar  Back to Top Previous Next
