WLCS Doc Home   |   Registration and User Processing Package   |   Previous Topic   |   Next Topic   |   Contents   |   Index

For customers who plan on frequenting your e-business on a regular basis, it is beneficial to provide a way for them to store some personal information. In doing so, the ordering process will require less time because your customer will not need to reenter their name, address, payment information, and so on. For security, privacy, and management however, this feature requires customers to log into your site with a username/password combination. This topic describes the JavaServer Pages (JSPs) and associated components that allow customers to register and log into your site by creating a customer profile.

This topic includes the following sections:

• JavaServer Pages (JSPs)

  • login.jsp Template

  • badlogin.jsp Template

  • successfullogin.jsp Template

  • newuser.jsp Template

• Input Processors

  • CustomerProfileIP

• Pipeline Components

  • RegisterUserPC

The Registration and User Processing package contains a number of JavaServer Pages (JSPs) that handle customer registration (initial customer profile creation) and customer login. Remember, you can always use these templates for your Web site, or you can adapt them to meet your specific needs. This section describes each of these pages in detail.

Note: For a description of the complete set of JSPs used in the WebLogic Commerce Server Web application and a listing of their locations in the directory structure, see the Summary of JSP Templates documentation.

The login.jsp template (shown in Figure 2-1) allows a customer who has previously created a profile to log into your e-commerce site by providing a valid username/password combination. Since this page is the entry point to the checkout process, it also establishes mechanisms (such as sessions) that will allow customers to continue their shopping experience.

For customers who have not yet registered with your site, the login.jsp template provides customers with an entry point into a page that allows them to register (create their initial customer profile) for subsequent use on the site.

Figure 2-1 shows an annotated version of the login.jsp template. The dashed lines and numbers in the diagram are not part of the template; they are referenced in the explanation that follows the screen shot.

The numbers in the following list refer to the numbered regions in the figure:

1. The page header (top banner) is created from an import of the innerheader.jsp template. This is standard across many of the JSP templates provided by WebLogic Commerce Server. The import call is:

   <%@ include file="/commerce/includes/innerheader.jsp" %>

2. This region provides two form fields for customers who already have a username and password combination. When the form is posted, authentication is handled by the WebLogic Server (not part of the default Webflow).

3. This region provides a link into the page that allows new customers to register with your e-commerce site. Registration involves creating an initial customer profile, and is where the customer will set their username and password for subsequent logins.

4. The login.jsp template's content in region 4 contains the included innerfooter.jsp template. The include call in login.jsp is:

   <%@ include file="/commerce/includes/innerfooter.jsp" %>

   innerfooter.jsp consists of the horizontal footer at the bottom of the page, plus the right-side vertical column that describes (for the benefit of you and your development team) the name of the current template and links to its About information. In the innerfooter.jsp file, the right-side vertical column is an include file:

   <%@ include file="/commerce/includes/rightside.jsp" %>

You can find the login.jsp template file at the following location, where WL_COMMERCE_HOME is the directory in which you installed WebLogic Commerce Server:

%WL_COMMERCE_HOME%\server\webapps\wlcs\commerce\login.jsp (Windows)
$WL_COMMERCE_HOME/server/webapps/wlcs/commerce/login.jsp (UNIX)

The login.jsp template does not use any JSP tags. Therefore, the template does not include imports of any JSP tag libraries.

The login.jsp template uses Java classes in the following packages and therefore includes these import statements:

<%@ page import="javax.servlet.http.*" %>
<%@ page import="com.beasys.commerce.webflow.*" %>

The login.jsp template itself is not part of the default Webflow. Rather, it is automatically loaded into the browser when a protected page is referenced by the WebLogic Server.

Note: All JSP templates in the /order and /user subdirectories are protected and are accessible only by registered and authenticated customers.

If the customer already has a username/password combination from prior registration and the customer's login is successful, the next page is the protected page the customer was attempting to access. If the customer's login is unsuccessful, a version of the login.jsp template is reloaded with an error message (badlogin.jsp).

If the customer is not yet registered and clicks on the Create button, the next page loaded will allow the customer to create a profile and obtain a username/password combination (newuser.jsp). After the customer has registered, the customer will be returned to login.jsp so they can log in. If the customer's login is then successful, the next page is the successful login page, (successfullogin.jsp), which allows customers to decide whether they want to proceed to their shopping cart (shoppingcart.jsp), proceed to checkout (shipping.jsp), or proceed to the main page (main.jsp). If the customer's login is unsuccessful, a version of the login.jsp template is reloaded with an error message (badlogin.jsp).

Notes: The option to proceed to checkout is only provided on the successfullogin.jsp template if there are items in the customer's shopping cart.

For a detailed description of the main.jsp template, see "Product Catalog JSP Templates and Tag Library" in the BEA WebLogic Commerce Server Product Catalog Management documentation. For a detailed description of the shoppingcart.jsp and shipping.jsp templates, see "Shopping Cart Management Services" or "Shipping Services" in the BEA WebLogic Commerce Server Order Processing Package documentation.

For more information about the default Webflow, see Overview of the Registration and User Processing Package.

The following JSP templates are included in the login.jsp template:

• innerheader.jsp, which creates the top banner.

• innerfooter.jsp, which creates a horizontal footer at the bottom of the page, and also includes the rightside.jsp template. rightside.jsp describes (for the benefit of you and your development team) the name of the current template and links to its About information.

Events

The login.jsp template presents a customer with two buttons, only one of which is considered an event. The event triggers a particular response in the default Webflow that allows customers to continue. The other button is a standard HTML Submit button that posts the page back to the WebLogic Server for authentication. Table 2-1 provides information about the event and the business logic it invokes.

Table 2-1 login.jsp Events

Event	Webflow Response(s)
button(createUser)	No business logic required. Loads newuser.jsp.

Note: The Login button actually is not an event that would trigger a Webflow response. Rather, when a customer clicks the button, control is turned over to the WebLogic Server (specifically, the RDBMS realm of the WebLogic Personalization Server). The WebLogic Server remembers the HTTP request, determines whether the customer's username and password combination is correct, and then reinvokes the Webflow using the request. Since this authentication follows the WebLogic Server and J2EE specifications, more information on this topic can be found in documents at the BEA WebLogic Server 5.1 Documentation Center.

No dynamic data is presented on the login.jsp template.

The primary purpose of the login.jsp template is to allow customers to enter their username and password using two HTML form fields. It is also used to pass needed information to the Webflow.

The form fields used in the login.jsp template, and a description for each of these form fields are listed in Table 2-2.

Table 2-2 login.jsp Form Fields

Parameter Name	Type	Description
"event"	Hidden	Indicates which event has been triggered. It is used by the Webflow to determine what happens next.
"origin"	Hidden	The name of the current page (login.jsp), used by the Webflow.
"j_username"	Textbox	The customer's login name, passed to WebLogic Server for authentication.
"j_password"	Password	The customer's login password, passed to WebLogic Server for authentication.

Note: Parameters that are literals in the JSP code are shown in quotes, while non-literals will require scriptlet syntax (such as
<%= HttpRequestConstants.USER_NAME %>) for use in the JSP.

The badlogin.jsp template (shown in Figure 2-2) informs a customer that they have entered an invalid username/password combination, and allows the customer to try logging into your e-commerce site again by providing a valid username/password combination. Except for the error message, it behaves exactly as the login.jsp template previously described.

Figure 2-2 shows an annotated version of the badlogin.jsp template. The dashed lines and numbers in the diagram are not part of the template; they are referenced in the explanation that follows the screen shot.

The numbers in the following list refer to the numbered regions in the figure:

1. Region 1 displays the login error message to the customer, and prompts the customer to try logging in again or to create a new account.

2. Because the badlogin.jsp template includes the login.jsp template, the following regions are actually part of the login.jsp template:

   1. The page header (top banner) is created from an import of the innerheader.jsp template. This is standard across many of the JSP templates provided by the WebLogic Commerce Server. The import call is:

         <%@ include file="/commerce/includes/innerheader.jsp" %>

   2. This region provides two form fields for customers who already have a username and password combination. When the form is posted, authentication is handled by WebLogic Server (not part of the default Webflow).

   3. This region provides a link into the page that allows new customers to register with your e-commerce site. Registration involves creating an initial customer profile, and is where the customer will set their username and password for subsequent logins.

   4. The login.jsp template's content in region 2d contains the included innerfooter.jsp template. The include call in login.jsp is:

         <%@ include file="/commerce/includes/innerfooter.jsp" %>

      innerfooter.jsp consists of the horizontal footer at the bottom of the page, plus the right-side vertical column that describes (for the benefit of you and your development team) the name of the current template and links to its About information. In the innerfooter.jsp file, the right-side vertical column is an include file:

         <%@ include file="/commerce/includes/rightside.jsp" %>

You can find the badlogin.jsp template file at the following location, where WL_COMMERCE_HOME is the directory in which you installed WebLogic Commerce Server:

%WL_COMMERCE_HOME%\server\webapps\wlcs\commerce\badlogin.jsp (Windows)
$WL_COMMERCE_HOME/server/webapps/wlcs/commerce/badlogin.jsp (UNIX)

The badlogin.jsp template does not use any JSP tags. Therefore, the template does not include imports of any JSP tag libraries.

The badlogin.jsp template does not use any Java classes and therefore does not include any package import statements.

Customers arrive at the badlogin.jsp template when they fail to provide a valid username/password combination on the login.jsp template. If the customer is registered and the customer's second attempt at logging in is successful, the next page is the protected page the customer was attempting to access. If the customer's login is unsuccessful, the badlogin.jsp template is reloaded.

If the customer is not yet registered and clicks on the Create button, the next page loaded will allow them to create a customer profile and obtain a username/password combination (newuser.jsp). After the customer has registered, the customer will be returned to login.jsp so they can log in.

Note: For more information about the default Webflow, see Overview of the Registration and User Processing Package.

The following JSP template is included in the badlogin.jsp template:

• login.jsp, which creates the entire page, with the exception of the error message at the top.

Events

Because the badlogin.jsp template is essentially the same as the login.jsp template, the badlogin.jsp template makes use of the same events. For more information about these events, see login.jsp Template.

No dynamic data is presented on the badlogin.jsp template.

Because the badlogin.jsp template is essentially the same as the login.jsp template, the badlogin.jsp template makes use of the same form fields. For more information about these form fields, see login.jsp Template.

The successfullogin.jsp template (shown in Figure 2-3) informs a customer who has just created a user profile and logged in that the login was successful, and provides the customer with the opportunity to return to their shopping experience through several navigation options.

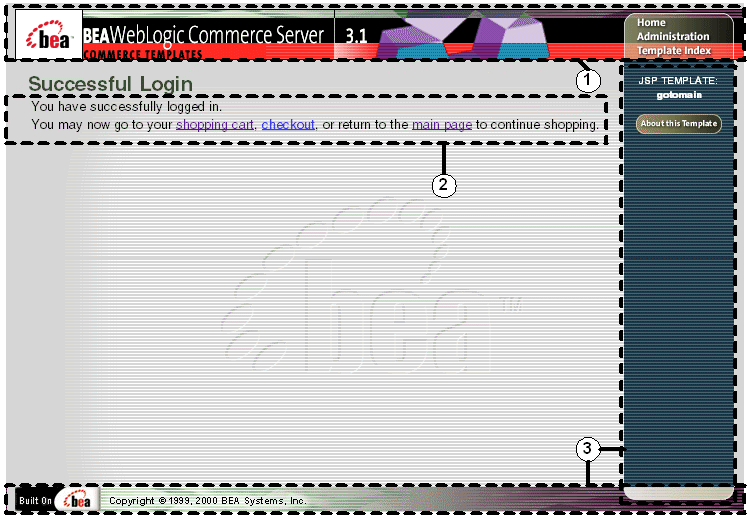

Figure 2-3 shows an annotated version of the successfullogin.jsp template. The dashed lines and numbers in the diagram are not part of the template; they are referenced in the explanation that follows the screen shot.

The numbers in the following list refer to the numbered regions in the figure:

1. The page header (top banner) is created from an import of the innerheader.jsp template. This is standard across many of the JSP templates provided by WebLogic Commerce Server. The import call is:

   <%@ include file="/commerce/includes/innerheader.jsp" %>

2. This region indicates to the customer that their login (and thus registration) was successful, and provides them with links to return to their shopping cart (shoppingcart.jsp), to continue to the checkout process (shipping.jsp) or to return to the main catalog page (main.jsp).

   Notes: For a detailed description of the main.jsp template, see the "Product Catalog JSP Templates and Tag Library" in the BEA WebLogic Commerce Server Product Catalog Management documentation. For a detailed description of the shoppingcart.jsp and shipping.jsp templates, see the "Shopping Cart Management Services" or the "Shipping Services" in the BEA WebLogic Commerce Server Order Processing Package documentation.

   The option to proceed to checkout is only provided on the successfullogin.jsp template if there are items in the customer's shopping cart. Otherwise, the successfullogin.jsp template will leave out this option, as shown in Figure 2-4.

   Figure 2-4 successfullogin.jsp - Without Checkout Option



3. The successfullogin.jsp template's content in region 3 contains the included innerfooter.jsp template. The include call in successfullogin.jsp is:

      <%@ include file="/commerce/includes/innerfooter.jsp" %>

   innerfooter.jsp consists of the horizontal footer at the bottom of the page, plus the right-side vertical column that describes (for the benefit of you and your development team) the name of the current template and links to its About information. In the innerfooter.jsp file, the right-side vertical column is an include file:

      <%@ include file="/commerce/includes/rightside.jsp" %>

You can find the successfullogin.jsp template file at the following location, where WL_COMMERCE_HOME is the directory in which you installed WebLogic Commerce Server:

%WL_COMMERCE_HOME%\server\webapps\wlcs\commerce\user\
successfullogin.jsp (Windows)
$WL_COMMERCE_HOME/server/webapps/wlcs/commerce/user/
successfullogin.jsp (UNIX)

The successfullogin.jsp template uses Pipeline JSP tags. Therefore, the template includes the following JSP tag libraries:

<%@ taglib uri="pipeline.tld" prefix="pipeline" %>

Note: For more information about the Pipeline JSP tags, see BEA WebLogic Commerce Server Webflow and Pipeline Management.

These files reside in the following directory for the WebLogic Commerce Server Web application:

%WL_COMMERCE_HOME%\server\webapps\wlcs\WEB-INF (Windows)
$WL_COMMERCE_HOME/server/webapps/wlcs/WEB-INF (UNIX)

The successfullogin.jsp template uses Java classes in the following packages and therefore includes these import statements:

<%@ page import="javax.servlet.*" %>
<%@ page import="javax.servlet.http.*" %>
<%@ page import="com.beasys.commerce.ebusiness.shoppingcart.*" %>
<%@ page import="com.beasys.commerce.webflow.*" %>

Customers arrive at the successfullogin.jsp template when they have successfully logged into your e-commerce site (on the login.jsp template) only after just having created a customer profile.

Note: If a customer had created a profile on a previous visit and logged in using the login.jsp template, the customer would simply be taken to the protected page the customer was trying to access.

From the successfullogin.jsp template, the customer can return to their shopping cart (shoppingcart.jsp), continue to the checkout process (shipping.jsp), or return to the main catalog page (main.jsp).

Notes: The option to proceed to checkout is only provided on the successfullogin.jsp template if there are items in the customer's shopping cart.

For more information about the default Webflow, see Overview of the Registration and User Processing Package.

The following JSP templates are included in the successfullogin.jsp template:

• innerheader.jsp, which creates the top banner.

• innerfooter.jsp, which creates a horizontal footer at the bottom of the page, and also includes the rightside.jsp template. rightside.jsp describes (for the benefit of you and your development team) the name of the current template and links to its About information.

Events

Every time a customer clicks a button to view more detail about an order, it is considered an event. Each event triggers a particular response in the default Webflow that allows them to continue. While this response can be to load another JSP, it is usually the case that an input processor and/or Pipeline is invoked first. Table 2-3 provides information about these events and the business logic they invoke.

Table 2-3 successfullogin.jsp Events

Event	Webflow Response(s)
link(shoppingcart)	InitShoppingCartIP
link(checkout)	InitShippingMethodListIP
link(home)	GetTopCategoriesIP GetTopCategories

Note: For more information about the GetTopCategoriesIP and GetTopCategories Pipeline, see BEA WebLogic Commerce Server Product Catalog Management.

One purpose of the successfullogin.jsp template is to display navigation options that allow customers to continue their shopping experience after logging in. However, if there are no items in the customer's shopping cart, then checkout is not an option that should be displayed. The decision of whether or not to display this option is accomplished on successfullogin.jsp using a combination of Pipeline JSP tags and accessor methods/attributes.

First, the getPipelineProperty JSP tag retrieves the SHOPPING_CART attribute from the Pipeline session. Table 2-4 provides more detailed information on this attribute.

Table 2-4 successfullogin.jsp Pipeline Session Attributes

Attribute	Type	Description
PipelineSessionConstants.SHOPPING_CART	com.beasys.commerce.ebusiness.shoppingcart.ShoppingCart	The currently active shopping cart.

Listing 2-1 illustrates how this attribute is retrieved from the Pipeline session using the getPipelineProperty JSP tag.

<pipeline:getPipelineProperty
 propertyName="<%=PipelineSessionConstants.SHOPPING_CART%>"
 returnName="shoppingCart"
 returnType="com.beasys.commerce.ebusiness.shoppingcart.
ShoppingCart"/>

Note: For more information on the getPipelineProperty JSP tag, see BEA WebLogic Commerce Server Webflow and Pipeline Management.

The data stored within the Pipeline session attribute is then accessed by using accessor methods/attributes within Java scriptlets. Table 2-5 provides more detailed information about these methods/attributes for shoppingCart.

Table 2-5 shoppingCart Accessor Methods/Attributes

Method/Attribute	Description
isEmpty()	Returns true if the customer's shopping cart is empty.

The presence of items in the shopping cart is evaluated using this method in a Java scriptlet, as shown in Listing 2-2.

<% if (shoppingCart != null && shoppingCart.isEmpty() == false) { %>
<a href="<%=WebflowJSPHelper.createWebflowURL(pageContext, "successfullogin.jsp","button(checkout)", true)%>">checkout</a>
<% } %>

No form fields are used in the successfullogin.jsp template.

The newuser.jsp template (shown in Figure 2-5 through Figure 2-7) allows a new customer to register with your e-commerce site by creating their customer profile, which includes personal information, shipping address information, payment information (optional), and account information.

Figure 2-5 through Figure 2-7 show annotated versions of the newuser.jsp template. Although there are three figures, together these screen shots form the single newuser.jsp template. The dashed lines and numbers in the diagram are not part of the template; they are referenced in the explanation that follows the screen shots.

The numbers in the following list refer to the numbered regions in the figures:

1. The page header (top banner) is created from an import of the innerheader.jsp template. This is standard across many of the JSP templates provided by WebLogic Commerce Server. The import call is:

   <%@ include file="/commerce/includes/innerheader.jsp" %>

2. This region provides form fields for customers to enter their personal customer profile information, including their name, address, phone number(s), and email address. For the address, this region utilizes the form fields defined in the included states.jsp and countries.jsp template files.

   Figure 2-6 Annotated newuser.jsp Template - Shipping Address and Payment Information (Optional)



3. This region provides form fields for customers to enter a shipping address. If the customer wishes to use the address they provided in the personal information section as their shipping address, the customer can click the Same as Above checkbox instead of retyping the information. Other than the checkbox, this region consists almost entirely of the form fields defined in the included newaddresstemplate.jsp template file.

4. If the customer would like to provide their payment information, region 4 allows the customer to do so. This region provides form fields for the type of credit card, the credit card holder's name, the credit card number, the credit card expiration date, and an address associated with the credit card. The information requested in this region is optional, and consists entirely of the form fields defined in the included newcctemplate.jsp template file.

   Figure 2-7 Annotated newuser.jsp Template - Account Information



5. This region provides the customer with the opportunity to specify their username and password for use on your e-business site. If the customer decides to submit this form data, the customer's profile will be saved and the login.jsp template will be reloaded to allow the customer to login.

   Note: The maximum number of characters allowed for usernames and passwords is set to 50, but there are no other restrictions. If you want to impose other restrictions (such as required character types, disallowed character types, or length requirements), you must set up your own field validator.

6. The newuser.jsp template's content in region 6 contains the included innerfooter.jsp template. The include call in newuser.jsp is:

   <%@ include file="/commerce/includes/innerfooter.jsp" %>

   innerfooter.jsp consists of the horizontal footer at the bottom of the page, plus the right-side vertical column that describes (for the benefit of you and your development team) the name of the current template and links to its About information. In the innerfooter.jsp file, the right-side vertical column is an include file:

   <%@ include file="/commerce/includes/rightside.jsp" %>

You can find the newuser.jsp template file at the following location, where WL_COMMERCE_HOME is the directory in which you installed WebLogic Commerce Server:

%WL_COMMERCE_HOME%\server\webapps\wlcs\commerce\registration\
newuser.jsp (Windows)
$WL_COMMERCE_HOME/server/webapps/wlcs/commerce/registration/
newuser.jsp (UNIX)

The newuser.jsp template makes use of the Webflow JSP tags. Therefore, the template includes the following JSP tag libraries:

<%@ taglib uri="weblogic.tld" prefix="webflow" %>

Note: For more information about the Webflow JSP tags, see BEA WebLogic Commerce Server Webflow and Pipeline Management.

These files reside in the following directory for the WebLogic Commerce Server Web application:

%WL_COMMERCE_HOME%\server\webapps\wlcs\WEB-INF (Windows)
$WL_COMMERCE_HOME/server/webapps/wlcs/WEB-INF (UNIX)

The newuser.jsp template uses Java classes in the following packages and therefore includes these import statements:

<%@ page import="javax.servlet.*" %>
<%@ page import="javax.servlet.http.*" %>
<%@ page import="com.beasys.commerce.webflow.tags.WebFlowTagConstants" %>
<%@ page import="com.beasys.commerce.webflow.HttpRequestConstants" %>
<%@ page import="com.beasys.commerce.foundation.pipeline.*" %>
<%@ page import="com.beasys.commerce.webflow.*" %>

The page prior to newuser.jsp is the customer login page (login.jsp). If no errors are found after a customer enters their initial profile information, customers are returned to the customer login page (login.jsp) where they can use their account information to log in. If errors are found, the newuser.jsp is reloaded with an appropriate message next to the erroneous form fields.

Note: For more information about the default Webflow, see Overview of the Registration and User Processing Package.

The following JSP templates are included in the newuser.jsp template:

• innerheader.jsp, which creates the top banner.

• states.jsp, which contains a list of states that are displayed when the customer is prompted to enter an address.

• countries.jsp, which contains a list of countries that are displayed when the customer is prompted to enter an address.

• innerfooter.jsp, which creates a horizontal footer at the bottom of the page, and also includes the rightside.jsp template. rightside.jsp describes (for the benefit of you and your development team) the name of the current template and links to its About information.

About the Included newaddresstemplate.jsp Template

The newaddresstemplate.jsp template (included in most JSP templates that prompt customers for a shipping address) provides a standardized format for both the form field presentation and error handling. The form fields are organized in a table, and upon form submission, the input processors associated with the newaddresstemplate.jsp template will validate the form to ensure that all required fields contain values. If errors are detected, the newaddresstemplate.jsp template will be redisplayed, with an error message at the top and the offending field labels shown in red (as opposed to the original black) font. Further, the information your customer entered correctly will still be displayed in the form.

The behavior described above is accomplished on the newaddresstemplate.jsp template using the getValidatedValue JSP tag, as shown in Listing 2-3.

<table>
<tr>

<!-- use the webflow:getValidatedValue to retrieve a value from the HttpRequest. This value was placed there by the CustomerProfileIP input processor -->

  <td>
    <webflow:getValidatedValue
     fieldName="<%=HttpRequestConstants.CUSTOMER_SHIPPING_ADDRESS1%>"
     fieldValue="customerShippingAddress1" fieldStatus="status"
     validColor="black" invalidColor="red" unspecifiedColor="black"
     fieldColor="fontColor" />

    <div class="tabletext">
      <font color=<%=fontColor%>>Address</font>
    </div>
  </td>

  <td>
    <input type="text"
     name="<%=HttpRequestConstants.CUSTOMER_SHIPPING_ADDRESS1%>"
     value="<%=customerShippingAddress1%>" size="30" maxlength="30">
  </td>

</tr>
</table>

Notes: For more information about the getValidatedValue JSP tag, see BEA WebLogic Commerce Server Webflow and Pipeline Management.

Because the newaddresstemplate.jsp template collects address information, this template also includes states.jsp and countries.jsp where appropriate.

The newcctemplate.jsp template (included in all JSP templates that prompt customers for credit card/payment information) provides a standardized format for both the form presentation and error handling. The form fields are organized in a table, and upon form submission, the input processors associated with the newcctemplate.jsp template will validate the form to ensure that all required fields contain values. If errors are detected, the newcctemplate.jsp template will be redisplayed, with an error message at the top and the offending field labels shown in red (as opposed to the original black) font. Further, the information your customer entered correctly will still be displayed in the form.

The behavior described above is accomplished on the newcctemplate.jsp template using the getValidatedValue JSP tag, as shown in Listing 2-4.

<table>
<tr>

<!-- use the webflow:getValidatedValue to retrieve a value from the HttpRequest. This value was placed there by the CustomerProfileIP input processor -->

  <td>
    <webflow:getValidatedValue
     fieldName="<%=HttpRequestConstants.CUSTOMER_CREDITCARD_HOLDER%>"
     fieldValue="customerCreditCardHolder" fieldStatus="status"
     validColor="black" invalidColor="red" unspecifiedColor="black"
     fieldColor="fontColor" />

    <div class="tabletext">
      <font color=<%=fontColor%>>Name on card</font>
    </div>

  </td>

  <td>
    <input type="text"
     name="<%=HttpRequestConstants.CUSTOMER_CREDITCARD_HOLDER%>"
     value="<%=customerCreditCardHolder%>" size="30">
  </td>

</tr>
</table>

Notes: For more information about the getValidatedValue JSP tag, see BEA WebLogic Commerce Server Webflow and Pipeline Management.

Because the newcctemplate.jsp template collects address information, this template also includes states.jsp and countries.jsp where appropriate.

The newuser.jsp template presents a customer with two buttons, each of which is considered an event. These events trigger a particular response in the default Webflow that allows customers to continue. While this response can be to load another JSP, it is usually the case that an input processor or Pipeline is invoked first. Table 2-6 provides information about these events and the business logic they invoke.

Table 2-6 newuser.jsp Events

Event	Webflow Response(s)
button(cancel)	GetCategoryIP
button(save)	CustomerProfileIP CustomerProfile

Table 2-7 briefly describes each of the Pipelines from Table 2-6, as they are defined in the pipeline.properties file. For more information about individual Pipeline components, see Pipeline Components.

Table 2-7 New User Profile Pipelines

Pipeline	Description
CustomerProfile	Contains EncryptCreditCardPC and RegisterUserPC, and is transactional.

Dynamic Data Display

No dynamic data is presented on the newuser.jsp template.

The primary purpose of the newuser.jsp template is to allow customers to enter their profile information using various HTML form fields. It is also used to pass needed information to the Webflow.

The form fields used in the newuser.jsp template, and a description for each of these form fields are listed in Table 2-8.

Table 2-8 newuser.jsp Form Fields

Parameter Name	Type	Description
"event"	Hidden	Indicates which event has been triggered. It is used by the Webflow to determine what happens next.
"origin"	Hidden	The name of the current page (newuser.jsp), used by the Webflow.
HttpRequestConstants. CUSTOMER_FIRST_NAME	Textbox	The customer's first name.
HttpRequestConstants. CUSTOMER_MIDDLE_NAME	Textbox	The customer's middle initial.
HttpRequestConstants. CUSTOMER_LAST_NAME	Textbox	The customer's last name.
HttpRequestConstants. CUSTOMER_ADDRESS1	Textbox	The first line in the customer's street address.
HttpRequestConstants. CUSTOMER_ADDRESS2	Textbox	The second line in the customer's street address.
HttpRequestConstants. CUSTOMER_CITY	Textbox	The city in the customer's address.
HttpRequestConstants. CUSTOMER_STATE	Listbox	The state in the customer's address.
HttpRequestConstants. CUSTOMER_ZIPCODE	Textbox	The zip code in the customer's address.
HttpRequestConstants. CUSTOMER_COUNTRY	Listbox	The country in the customer's address.
HttpRequestConstants. CUSTOMER_HOME_PHONE	Textbox	The customer's home phone number.
HttpRequestConstants. CUSTOMER_BUSINESS_PHONE	Textbox	The customer's business phone number.
HttpRequestConstants. CUSTOMER_EMAIL	Textbox	The customer's email address.
HttpRequestConstants. SAME_AS_ABOVE	Checkbox	Indicates that the customer's shipping address is the same as the contact address.
HttpRequestConstants. CUSTOMER_SHIPPING_ADDRESS1	Textbox	The first line in the customer's shipping address.
HttpRequestConstants. CUSTOMER_SHIPPING_ADDRESS2	Textbox	The second line in the customer's shipping address.
HttpRequestConstants. CUSTOMER_SHIPPING_CITY	Textbox	The city in the customer's shipping address.
HttpRequestConstants. CUSTOMER_SHIPPING_STATE	Listbox	The state in the customer's shipping address.
HttpRequestConstants. CUSTOMER_SHIPPING_ZIPCODE	Textbox	The zip/postal code in the customer's shipping address.
HttpRequestConstants. CUSTOMER_SHIPPING_COUNTRY	Listbox	The country in the customer's shipping address.
HttpRequestConstants. CUSTOMER_CREDITCARD_TYPE	Listbox	The type of the customer's credit card.
HttpRequestConstants. CUSTOMER_CREDITCARD_HOLDER	Textbox	The name on the credit card.
HttpRequestConstants. CUSTOMER_CREDITCARD_NUMBER	Textbox	The number of the customer's credit card.
HttpRequestConstants. CUSTOMER_CREDITCARD_MONTH	Listbox	The month of the customer's credit card expiration date.
HttpRequestConstants. CUSTOMER_CREDITCARD_YEAR	Listbox	The year of the customer's credit card expiration date.
HttpRequestConstants. CUSTOMER_CREDITCARD_ADDRESS1	Textbox	The first line in the customer's billing address.
HttpRequestConstants. CUSTOMER_CREDITCARD_ADDRESS2	Textbox	The second line in the customer's billing address.
HttpRequestConstants. CUSTOMER_CREDITCARD_CITY	Textbox	The city in the customer's billing address.
HttpRequestConstants. CUSTOMER_CREDITCARD_STATE	Listbox	The state in the customer's billing address.
HttpRequestConstants. CUSTOMER_CREDITCARD_ZIPCODE	Textbox	The zip/postal code in the customer's billing address.
HttpRequestConstants. CUSTOMER_CREDITCARD_COUNTRY	Listbox	The country in the customer's billing address.
HttpRequestConstants. USER_NAME	Textbox	An identity chosen by the customer for login.
HttpRequestConstants. PASSWORD	Password	A password chosen by the customer for login.
HttpRequestConstants. CONFIRM_PASSWORD	Password	Confirmation of the password chosen by the customer for login.

Note: Parameters that are literals in the JSP code are shown in quotes, while non-literals will require scriptlet syntax (such as
<%= HttpRequestConstants.USER_NAME %>) for use in the JSP.

This section provides a brief description of each input processor associated with the Customer Login and Registration Services JSP template(s).

Note: For more information about the GetTopCategoriesIP input processor, see BEA WebLogic Commerce Server Product Catalog Management.

Class Name	com.beasys.commerce.ebusiness.customer.webflow. CustomerProfileIP
Description	Processes the input of newuser.jsp and allows the customer to store their profile. Creates and places a CustomerValue object into the Pipeline session.
Required HTTPServletRequest Parameters (Personal Information)	HttpRequestConstants.CUSTOMER_FIRST_NAME HttpRequestConstants.CUSTOMER_MIDDLE_NAME HttpRequestConstants.CUSTOMER_LAST_NAME HttpRequestConstants.CUSTOMER_ADDRESS1 HttpRequestConstants.CUSTOMER_ADDRESS2 HttpRequestConstants.CUSTOMER_CITY HttpRequestConstants.CUSTOMER_STATE HttpRequestConstants.CUSTOMER_ZIPCODE HttpRequestConstants.CUSTOMER_COUNTRY HttpRequestConstants.CUSTOMER_HOME_PHONE HttpRequestConstants.CUSTOMER_BUSINESS_PHONE HttpRequestConstants.CUSTOMER_EMAIL
Required HTTPServletRequest Parameters (Shipping Information)	HttpRequestConstants.SAME_AS_ABOVE HttpRequestConstants.CUSTOMER_SHIPPING_ADDRESS1 HttpRequestConstants.CUSTOMER_SHIPPING_ADDRESS2 HttpRequestConstants.CUSTOMER_SHIPPING_CITY HttpRequestConstants.CUSTOMER_SHIPPING_STATE HttpRequestConstants.CUSTOMER_SHIPPING_ZIPCODE HttpRequestConstants.CUSTOMER_SHIPPING_COUNTRY HttpRequestConstants.DEFAULT_SHIPPING_ADDRESS
HTTPServletRequest Parameters (Payment Information)	HttpRequestConstants.CUSTOMER_CREDITCARD_TYPE HttpRequestConstants.CUSTOMER_CREDITCARD_HOLDER HttpRequestConstants.CUSTOMER_CREDITCARD_NUMBER HttpRequestConstants.CUSTOMER_CREDITCARD_MONTH HttpRequestConstants.CUSTOMER_CREDITCARD_YEAR HttpRequestConstants.CUSTOMER_CREDITCARD_ADDRESS1 HttpRequestConstants.CUSTOMER_CREDITCARD_ADDRESS2 HttpRequestConstants.CUSTOMER_CREDITCARD_CITY HttpRequestConstants.CUSTOMER_CREDITCARD_STATE HttpRequestConstants.CUSTOMER_CREDITCARD_ZIPCODE HttpRequestConstants.CUSTOMER_CREDITCARD_COUNTRY
Required HTTPServletRequest Parameters (Account Information)	HttpRequestConstants.USER_NAME HttpRequestConstants.PASSWORD HttpRequestConstants.CONFIRM_PASSWORD
Required Pipeline Session Attributes	None
Updated Pipeline Sesion Attributes	PipelineSessionConstants.CUSTOMER PipelineSessionConstants.PASSWORD PipelineSessionConstants.CREDIT_CARD_KEY (only if customer provides a credit card update).
Removed Pipeline Session Attributes	None
Validation	Checks that the required fields contain values and checks that the credit card number is not less than 16 digits (15 digits for AMEX type). Also checks that the password and confirm password fields contain matching values.
Exceptions	InvalidInputException, thrown when required fields are empty or credit card number is less than 16 digits (15 digits for AMEX type).

This section provides a brief description of each Pipeline component associated with the Customer Login and Registration Services JSP template(s).

Note: Some Pipeline components extend other, base Pipeline components. For more information on the base classes, see the Javadoc.

Class Name	com.beasys.commerce.ebusiness.customer.pipeline. RegisterUserPC
Description	Retrieves the CustomerValue object and password from the Pipeline session, and creates a CUSTOMER attribute.
Required Pipeline Session Attributes	PipelineSessionConstants.CUSTOMER PipelineSessionConstants.PASSWORD
Updated Pipeline Session Attributes	None
Removed Pipeline Session Attributes	PipelineSessionConstants.PASSWORD
Type	Java class
JNDI Name	None
Exceptions	PipelineFatalException, thrown when the Pipeline component cannot create the user.
