Installation Guide
 |
 |
 |
|
 |
Get Adobe Reader |
Installing the BEA Tuxedo Mainframe Adapter for OSI TP Product
This section covers the following information:
- Pre-Installation Considerations
- Installing BEA TMA OSI TP on a UNIX-Based Operating System
- Installing BEA Tuxedo Mainframe Adapter for OSI TP on Windows 2000 Advanced Server
Pre-Installation Considerations
Complete the following tasks prior to installing the TMA OSI TP product:
- Read the BEA Tuxedo Mainframe Adapter for OSI TP Release Notes for supported platform information.
- Install and verify the operation of the BEA Tuxedo product with the most recent patch level.
Warning: If you fail to install the correct patch level of Tuxedo, the application may not work correctly. Refer to the BEA Tuxedo Mainframe Adapter for OSI TP Release Notes for information on the correct patch level.
- On a UNIX operating system, if you are upgrading to Tuxedo 8.1 from a previous version of Tuxedo, you must remove the old version of Tuxedo before you install Tuxedo 8.1 or you must install Tuxedo 8.1 in a different directory. Do not overwrite the old version of Tuxedo.
Configuring the Environment to Install TMA OSI TP
Before installing the TMA OSI TP product, you must ensure that the BEA Tuxedo system is installed and configured properly for your environment. Refer to your Tuxedo documentation for more information about setting the Tuxedo environment variables. In addition to the Tuxedo environment variables, the TMA OSI TP system requires an additional environment variable, OSIRUNDIR, before you can boot the gateway or run the osiadmin utility. Refer to the BEA Tuxedo Mainframe Adapter for OSI TP User Guide for more information about the osiadmin utility. If you do not set the OSIRUNDIR environment variable before you boot the gateway, you will receive a message telling you to set OSIRUNDIR. This environment variable specifies the path that the TMA gateway uses for runtime files. You can set the OSIRUNDIR environment variable through a script, a command line entry, or, for Windows 2000 operating systems, through the Windows System Properties in the Control Panel. The variable value should include the path and directory as appropriate for your operating system.
Upgrading from eLink OSI TP 1.3
If you are upgrading from eLink OSI TP 1.3 to BEA Tuxedo Mainframe Adapter for OSI TP 8.1, you must modify your existing dmconfig file to be compatible with the new format. The osiadmin utility performs this upgrade automatically with the importcfg command. It is recommended that you use the osiadmin utility, but you may also upgrade by manually editing your dmconfig file. Refer to the BEA Tuxedo Mainframe Adapter for OSI TP User Guide for more information about using the osiadmin utility and about manually editing the dmconfig file.
BEA Tuxedo Mainframe Adapter for OSI TP 8.1 is a full replacement for eLink OSI TP 1.3 and the Unisys Protocol Stack (OSI TP and ULS). ULS on UNIX-based systems and BEA Tuxedo Mainframe Adapter for OSI TP 8.1 both use port 102 by default. Consider this default setting when configuring the port number of your updated dmconfig file. Beginning with eLink OSI TP 4.1, you can configure a port number other than 102. This option allows you to run your eLink OSI TP 1.3 gateway while you are upgrading. If you will be using port 102 in your TMA OSI TP 8.1 dmconfig file, you must shutdown ULS before attempting to tmboot TMA OSI TP 8.1. If you are running eLink OSI TP 1.3, uninstall eLink OSI TP and the Unisys OSI TP protocol stack including the Unisys Upper Layer Services.
When you are upgrading from a previous release of the eLink OSI TP product, you must shut down all Domain administrative and gateway servers within an application domain, particularly the following:
Upgrading from eLink OSI TP 4.0
If you are upgrading from eLink OSI TP 4.0, you do not need to modify your udmconfig input file. Perform a dmloadcf of the udmconfig file to create the dmconfig binary file, BDMCONFIG. If you are running eLink OSI TP 4.0, uninstall eLink OSI TP 4.0
Note: Beginning with eLink OSI TP 4.1, the version 4.0 udmloadcf utility, the BUDMCONFIG binary file and the eLink OSI TP Administrative Server UDADM no longer exist. The function performed by the version 4.0 udmloadcf command is now done by the dmloadcf command. The information contained in the version 4.0 BUDMCONFIG file is now incorporated within the BDMCONFIG file. If your ubbconfig contains the UDMADM Server, delete it and perform a tmloadcf of the modified ubbconfig file.
Installing BEA TMA OSI TP on a UNIX-Based Operating System
This section explains how to install the BEA Tuxedo Mainframe Adapter for OSI TP product on the following execution platforms:
To install the TMA OSI TP product, you run the install.sh script. This script installs all the necessary software components.
Warning: For UNIX-based operating systems, if you are installing in silent mode the BEA Tuxedo system should be installed first and the TMA OSI TP product should be installed within the same directory. Use the mkdir command to create the directory where you wish to install BEA Tuxedo and the TMA OSI TP product BEFORE you perform your installations. If you do not create the directory first, you will receive an Installation Complete message after you install BEA Tuxedo, but Tuxedo will not be installed. Make sure that you have installed the Tuxedo 8.1 license before you install the TMA OSI TP product.
Perform the following steps to install the TMA OSI TP product on a supported UNIX platform:
- Mount the CD-ROM with the following mount instruction if you are installing on an AIX operating system.The CD-ROM mounts automatically on Solaris.
Use the following mount instruction if you are installing on an HP-UX operating system:
# mount -r -F cdfs -o cdcase /dev/cdrom/c1b0t010 /mnt
# ls -1 /dev/cdrom
total 0
brw-rw-rw- 1 root sys 22, 0 January 5 10:55 c1b0t010
# mount -r -F cdfs /dev/cdrom/c1b0t0l0 /mnt
# cd /mnt
# ls
install.sh hp ibm sun5x uw windows
# sh ./install.sh
Listing 1-1 Install.sh Script Prompts for an AIX Installation
sh install.sh
01) hp/hpux11 02) ibm/aix52 03) sun5x/sol8
Install which platform's files? [01- 3, q to quit, l for list]:2
** You have chosen to install from ibm/aix52 **
BEA Tuxedo Mainframe Adapter for OSI TP 8.1
This directory contains BEA Tuxedo Mainframe Adapter for OSI TP 8.1 for
AIX 5.2 on RS/6000.
Is this correct? [y,n,q]:y
To terminate the installation at any time
press the interrupt key,
typically <del>, <break>, or <ctrl+c>.
The following packages are available:
1 ositp BEA Tuxedo Mainframe Adapter for OSI TP 8.1
Select the package(s) you wish to install (default: 1) [?,??,q]:1
BEA Tuxedo Mainframe Adapter for OSI TP 8.1
(rs6000) Release 8.1
Copyright (c) 2004 BEA Systems, Inc.
All Rights Reserved.
Distributed under license by BEA Systems, Inc.
BEA is a registered trademark of BEA Systems, Inc.
Directory where OSI TP files are to be installed
(Enter your Tuxedo directory path) [?,q]:/work/cmadm/tux81
Using /work/cmadm/tux81 as the OSI TP base directory
Determining if sufficient space is available ...
9904 blocks are required
1865988 blocks are available to /work/cmadm/tux81
Unloading /mnt/sun5x/sol8/ositp/OSITPT80.Z ...
TMA/osi/samples/simpapp/dmconfig
TMA/osi/samples/simpapp/tailor.txt
TMA/osi/samples/simpapp/ubbsimple
bin/GWOSITP
bin/getulogpfx
bin/lic.sh
bin/osiadmin
bin/osiltmain
bin/portproxy
bin/prdebuginfo
bin/setPROXYpriv
lib/libgwo.so
lib/libnwunisys.so
lib/libtasn1.so
locale/C/LIBGWO.text
locale/C/LIBGWO_CAT
locale/C/libnwunisys.cat
udataobj/gbebc2u.fld
udataobj/jbis82u.fld
udataobj/ksc2u.fld
udataobj/u2gbebc.fld
udataobj/u2jbis8.fld
udataobj/u2ksc.fld
9760 blocks
... finished
The $TUXDIR/bin/portproxy executable listens on privileged ports
(< 1024)on behalf of GWOSI TP. The script $TUXDIR/bin/setPROXYpriv is used to set the appropriate permissions.
If you know the root password, you may run setPROXYpriv now.
Run the setPROXYpriv script? [y/n]:yroot's Password:
Owner for /work/cmadm/tux81/bin/portproxy changed to root.
Mode for /work/cmadm/tux81/bin/portproxy changed to 4555.
Changing file permissions...
... finished
If your license file is accessible, you may install it now.
Install license file? [y/n]:n
Please don't forget to use lic.sh located in your product bin directory to install the license file from the enclosed floppy.
Refer to your product Release Notes for details on how to do this.
Installation of BEA Tuxedo Mainframe Adapter for OSI TP 8.1 was successful
Please don't forget to fill out and send in your registration card
Note: The following message may also appear during installation on HP machines:
===================================================
You do NOT HAVE required HP Patches for Tuxedo 8.1
Please refer to the Tuxedo 8.1 Installation Guide
or http://download.oracle.com/docs/cd/E13203_01/tuxedo/tux81/install/inspds.htm#1318335
for more information.
Continue Installation? [y/n]:
If you receive this warning, enter n to exit installation and refer to your Tuxedo 8.1 Installation Guide for more information.
Distribution Libraries and Executables for AIX
The TMA OSI TP CD-ROM contains the following libraries and executable programs for the AIX 5.2 operating system:
|
getulogfx |
|
|
gbebc2u.fld |
|
Distribution Libraries and Executables for HP-UX
The TMA OSI TP CD-ROM contains the following libraries and executable programs for the HP-UX 11 operating system:
|
getulogfx |
|
|
gbebc2u.fld |
|
Distribution Libraries and Executables for Solaris
The TMA OSI TP CD-ROM contains the following libraries and executable programs for the Solaris 8 operating system:
|
getulogfx |
|
|
gbebc2u.fld |
|
Installing BEA Tuxedo Mainframe Adapter for OSI TP on Windows 2000 Advanced Server
Caution: Be sure to review the Pre-Installation Considerations section before you start your installation of the BEA Tuxedo Mainframe Adapter for OSI TP Version 8.1 product.
Perform the following steps to install the TMA OSI TP product on a Windows NT or Windows 2000 operating system:
Warning: For Windows operating systems, the BEA Tuxedo system should be installed first and the TMA OSI TP product should be installed within the same directory.
- Insert the TMA OSI TP product CD-ROM in your CD-ROM drive. The Installation program should automatically start. If it does not start automatically, perform the following steps to begin the installation:
- Click OK to run the executable and begin the installation. Setup searches to make sure the Tuxedo product is installed on your system.
- Setup also notifies you if a prior version of the TMA OSI TP product is installed. If a prior version is detected, you are asked if you want to continue with Setup. Click Yes and the Welcome window displays as shown in Figure 1-1.
- Click Next to continue with the installation. The License Agreement window displays as shown in Figure 1-2.
- The User Information window displays as shown in Figure 1-3. Enter your name in the Name field. Enter the name of your company in the Company field. Click Next to continue with the installation.
- The install license file Question pop-up window displays as shown in Figure 1-4. Click Yes to install your License File now.

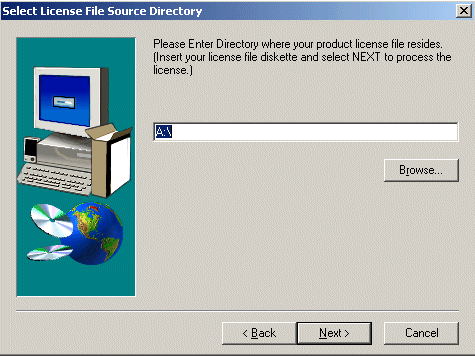

- When you click Yes to install the License File, the Select License File Source Directory window displays as shown in Figure 1-5.
- The installation begins and a progress bar displays the status. The TMA OSI TP components install into the Tuxedo directory. You may abort the installation process anytime prior to completion by clicking Cancel.
- The Setup Complete window, as shown in Figure 1-6 notifies you that the TMA OSI TP product is installed on your system. Click Finish to complete the setup process.
Note: If the Tuxedo product is NOT already installed on your system, an Error pop-up window displays. Click OK on the pop-up window to terminate the installation process. Install the Tuxedo product on your system and reinitiate the installation process.
Figure 1-2 License Agreement Window
Figure 1-3 User Information Window
Note: If you click Yes, the BEA Tuxedo Mainframe Adapter for OSI TP license file is appended to the existing Tuxedo license file, $TUXDIR\udataobj\lic.txt. If you click No, you will need to manually add the TMA OSI TP license to the end of the lic.txt file.
Figure 1-4 Install License File Question
Note: During the TMA OSI TP installation, the $TUXDIR\udataobj\DMTYPE file is updated to include an OSITPX entry if one is not already there.
Distribution Libraries and Executables for Windows 2000 Advanced Server
The TMA OSI TP CD-ROM contains the following libraries and executable programs for Windows operating systems. After installing the TMA OSI TP product, verify that these files and programs are installed on your system.
|
DbgHelp.dll |
|
|
gbebc2u.fld |
|
Uninstalling BEA Tuxedo Mainframe Adapter for OSI TP Product on Windows 2000 Advanced Server
Perform the following steps to uninstall TMA OSI TP on a Windows NT system:
Note: Make sure that TMA OSI TP is shut down before you uninstall.
- Click the Start button, and then point to Settings. Point to the folder that contains Control Panel, and then click Control Panel.
- Double click on the Add/Remove Programs option from the Control Panel listings to access the Add/Remove Programs properties window.
- In the Add/Remove Programs Properties window, select BEA Tuxedo Mainframe Adapter for OSI TP from the program list and click the Add/Remove button.
- The uninstall process for TMA OSI TP begins. The Remove Programs From Your Computer screen displays. Click OK to complete the uninstall process.
Figure 1-7 Remove Programs From Your Computer Screen
