8.1 Supported Configurations: HP-UX 11.0, 11i on PA-RISC

HP-UX 11.0, 11i on PA-RISC with WebLogic Platform 8.1

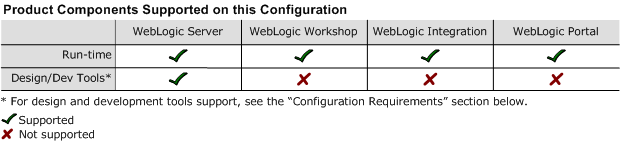

Provides full support for WebLogic Server and run-time support for WebLogic Workshop, WebLogic Integration, and WebLogic Portal. For Design and Development Tools support, see the

Note: WebLogic Platform 8.1 includes WebLogic Server 8.1 Service Pack 1 (SP1).

This section provides the following information:

Related Information

For information about supported database configurations, Web servers, and browsers, plus support for interoperability tools and WebLogic Platform product support information, see WebLogic Platform 8.1 Supported Configurations.
For details about HP-UX 11.0 and 11i, visit HP's Web site: http://www.hp.com

Configuration Requirements

Table 6-1 Requirements for WebLogic Platform 8.1 on HP-UX 11.0, 11i on PA-RISC

Operating System Version and Patches	HP-UX 11.0 and 11i with HP-UX patches for Java^TM. See `http://www.hp.com/products1/unix/java/patches/index.html`.
Chip Architecture and Minimum Processor Speed	PA-RISC (240 MHz)
SDK	HP-UX SDK 1.4.1.02 with Java HotSpot^TM Server VM (32-bit)	HP-UX SDK is supported for development and production on HP-UX.
SDK	HP-UX SDK 1.4.1.03 with Java HotSpot^TM Server VM (32-bit)	Supported on WebLogic Server only.
Design and Development Tools	The WebLogic Workshop IDE and WebLogic Integration Format Builder are not supported on HP-UX. This system is supported for the production deployment of applications developed in the WebLogic Workshop IDE, and for remote debugging of applications developed in the WebLogic Workshop IDE. HP-UX is also supported for the development and production deployment of WebLogic Server applications developed with other tools.
RAM	512 MB required; 1 GB recommended
Performance Pack	Included	`lib/hpux11/libmuxer.sl`
Node Manager	Included	Native
BEA jDrivers for Oracle	For this Oracle client version:	The following shared libraries are provided:
	Oracle 8.1.7.4	`lib/hpux11/oci817_8/libweblogicoci39.sl` `lib/hpux11/oci817_8/libweblogicoxa39.sl`
	Oracle 9.0.1.4	`lib/hpux11/oci901_8/libweblogicoci39.sl` `lib/hpux11/oci901_8/libweblogicoxa39.sl`
	Oracle 9.2.0.3	`lib/hpux11/oci920_8/libweblogicoci39.sl` `lib/hpux11/oci920_8/libweblogicoxa39.sl`

Known Issues

The HP-UX 11.0 default value for maximum threads per process is 64, which may be too low for WebLogic Server and many Java server applications in general. When the value is too low, WebLogic Server may have problems starting up.

BEA recommends that you use the maximum kernel setting for the max_thread_proc and maxusers parameters. Setting maxusers to a higher value increases other machine-wide limits, such as nkthread (the maximum number of kernel threads). The following table provides some examples. Parameter Old Value New Value Description max_thread_proc 64 1024 Maximum threads per process maxfiles 60 256 Soft file limit per process maxusers 32 256 Influences other parameters nkthread 499 3635 Number of threads total on the system nproc 276 2068 Maximum number of processes ncallout 292 2084 Number of pending timeouts

The cacerts file under ${BEA_HOME}/jdk141_01/jre/lib/security is corrupt. For a new version, see HP's developer site. For demonstration purposes use the following file: ${WL_HOME}/server/lib/cacerts.
To avoid OutOfMemory exceptions or JVM crashes, increase the values of three Java options: -Xms, -Xmx, and -XX:MaxPermSize.

Parameter	Old Value	New Value	Description
`max_thread_proc`	64	1024	Maximum threads per process
`maxfiles`	60	256	Soft file limit per process
`maxusers`	32	256	Influences other parameters
`nkthread`	499	3635	Number of threads total on the system
`nproc`	276	2068	Maximum number of processes
`ncallout`	292	2084	Number of pending timeouts

The following values are suggested: -Xms200m, -Xmx512m, and -XX:MaxPermSize=128m.

For more information about known issues with any components of this release, see the appropriate Release Notes document. For a complete list of Release Notes supporting WebLogic Platform 8.1, see:

http://download.oracle.com/docs/cd/E13196_01/platform/docs81/interm/relnotes.html
