Interoperability Solutions Guide

  Previous Next vertical dots separating previous/next from contents/index/pdf Contents View as PDF   Get Adobe Reader

Interoperability with BEA Tuxedo



Introduction

BEA AquaLogic Service Bus and BEA Tuxedo can interoperate to use the services that each product offers.

You can use the following related documentation to learn more about this environment:

The following diagram summarizes this message handling process:

Route to Service Display




This chapter includes the following sections:



Using BEA Tuxedo Services from AquaLogic Service Bus (Outbound Example)

The following sections describe how to use BEA Tuxedo services from AquaLogic Service Bus:

Implementation Overview

AquaLogic Service Bus can utilize services offered by BEA Tuxedo using WebLogic Tuxedo Connector. WebLogic Tuxedo Connector provides a JMS bridge (tBridge) that can directly call Tuxedo services.

After you configure WebLogic Tuxedo Connector and the Tuxedo Queuing Bridge, a request for a Tuxedo service can be placed on a JMS queue and the reply to that request can be received from another JMS queue. tBridge handles the conversion from the JMS message to a Tuxedo buffer type, calls the imported Tuxedo service, converts the reply buffer back to a JMS message type, and places the converted reply onto a JMS queue. The request to Tuxedo can either be made directly to a service or placed on a Tuxedo /Q queue.

Before You Begin

Gather the following information about the Tuxedo application that AquaLogic Service Bus will use:

Prior to configuring the Tuxedo Queuing Bridge, you must create several JMS queues if they do not already exist. Queues are required for the following purposes:

Configuring WebLogic Tuxedo Connector and the Tuxedo Queuing Bridge

You configure WebLogic Tuxedo Connector and the Tuxedo Queuing Bridge (tBridge) using the WebLogic Server Administration Console. For additional information about the WebLogic Tuxedo Connector, see WebLogic Tuxedo Connector in the WebLogic Server documentation.

Log in to the WebLogic Server Administration Console. Perform the configuration steps in the order presented, using the instructions in the following sections.

Create a New WTC Server

Follow these steps:

  1. Click WTC Servers under the Interoperability tab.
  2. Click Lock & Edit; this allows you to make changes. A display similar to Figure 2-1 appears:

    3. Figure 2-1 WTC Server Display

    WTC Server Display



  3. Click New to add the new WTC server. A display similar to Figure 2-2 appears:

    4. Figure 2-2 New WTC Server Data Entry Display

    New WTC Server Data Entry Display



  4. Enter a name for the WTC server and click OK.

    5. A message at the top of the page indicates that the server was added correctly.

  5. Click the newly created WTC server to display its settings.

Create a Local Access Point

Follow these steps:

  1. Click Local APs on the Configuration tab.
  2. Click New to create a new WTC Local Access Point. A display similar to Figure 2-3 appears:

    3. Figure 2-3 New Local Access Point Data Entry Display

    New Local Access Point Data Entry Display



  3. Enter the following values:

    4. Access Point - A name for this access point.

    Access Point ID - The name WebLogic Server will use to refer to the access point. This value must match the Remote Access Point ID that the Tuxedo domain gateway has been configured to use for this WTC instance.

    Network Address - This value must match the remote network address that the Tuxedo domain gateway has been configured to use for this WTC instance.

  4. Click OK.

Create a Remote Access Point

Follow these steps:

  1. Click Remote APs on the Configuration tab.
  2. Click New to create a new WTC Remote Access Point. A display similar to Figure 2-4 appears:

    3. Figure 2-4 New Remote Access Point Data Entry Display

    New Remote Access Point Data Entry Display



  3. Enter the following values:

    4. Access Point - A name for this access point.

    Access Point ID - The name WebLogic Server will use to refer to the access point. This value must match the Local Access Point ID that the Tuxedo domain gateway has been configured to use for this WTC instance.

    Local Access Point - The name of WTC Local Access Point.

    Network Address - This value must match the local network address that the Tuxedo domain gateway has been configured to use for this WTC instance.

  4. Click OK.

Create a WTC Imported Service

Follow these steps:

  1. Click Imported on the Configuration tab.
  2. Click New to create a new WTC Imported Service. A display similar to Figure 2-5 appears:

    3. Figure 2-5 New WTC Import Service Data Entry Display

    New WTC Import Service Data Entry Display



  3. Enter the following values:

    4. Resource Name - The name WebLogic Server will use to refer to the service (including the tBridge)

    Local Access Point - The name of the just created local access point

    Remote Access Point List - The name of the newly created remote access point

    Remote Name - The name of the service as exported by the remote Tuxedo system

  4. Click OK.

Create Field Table Classes (if Required)

If the Tuxedo service expects FML or FML32 buffers, you must add one or more Field Table classes to a resource section in the WebLogic Tuxedo Connector configuration. To create the classes, use the weblogic.wtc.jatmi.mkfldclass utilities for FML field tables or the weblogic.wtc.jatmi.mkfldclass32 utility for FML32 field tables.

If you do not need to create Field Table classes, skip to Create a Queuing Bridge.

To create Field Table classes, follow these steps:

  1. Click Resources on the Configuration tab.
  2. Click New to create a new WTC Resource Configuration. A display similar to Figure 2-6 appears:

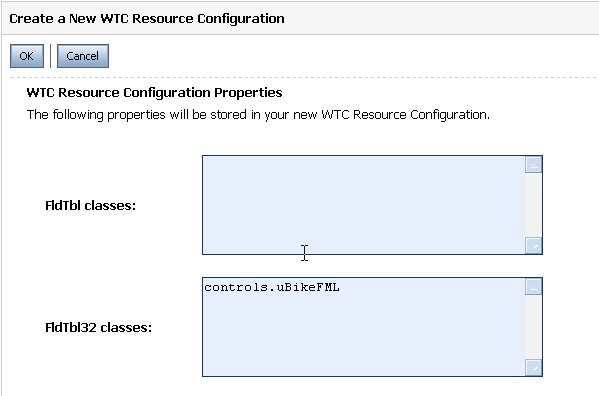

    3. Figure 2-6 New Field Table Class Data Entry Display

    New Field Table Class Data Entry Display



  3. Add the full class names to the FldTbl classes or FldTbl32 classes fields. The classes must be on the WebLogic Server classpath; you might need to change the WebLogic Server classpath. For information on setting the WebLogic Server classpath, see Modifying the Classpath in the WebLogic Server Command Reference.

Create a Queuing Bridge

Follow these steps:

  1. Click Queuing Bridge on the Configuration tab.
  2. Click New to create a new Queuing Bridge. A display similar to Figure 2-7 appears:

    3. Figure 2-7 New WTC Queuing Bridge Data Entry Display

    New WTC Queuing Bridge Data Entry Display



  3. Enter the following values:

    4. WLS Error Destination - Enter the JNDI name of the JMS queue that should receive messages if they can't successfully be delivered to Tuxedo.

    Tuxedo Error Queue - Enter the JNDI name of the JMS queue that is to receive error replies from Tuxedo.

  4. Click OK.

Create a Redirection

Follow these steps:

  1. Click Redirections on the Configuration tab.
  2. Click New to create a redirection for the service that is to be called in Tuxedo. A display similar to Figure 2-8 appears:

    3. Figure 2-8 New WTC Redirection Data Entry Display

    New WTC Redirection Data Entry Display



  3. Enter the following values:

    4. Direction -Specify JmsQ to TuxS.

    TranslateFML - If the Tuxedo service requires XML-to-FML and FML-to-XML translation, select Flat.

    Reply Q - Enter the JNDI name of the JMS queue that is to receive the replies from the Tuxedo service.

    Source Name - Enter the JNDI name of the JMS queue that is to receive the requests for the Tuxedo service.

    Target Access Point - Enter the name of the remote access point that you created previously.

    Target Name - Enter the name of the imported Tuxedo service that you created previously.

  4. Click OK.

Activate Changes

To activate the changes you made, click Activate Changes on the WebLogic Server Administration Console.

Configuring a New Business Service

To utilize the Tuxedo service from AquaLogic Service Bus, you must configure a new Business Service in the AquaLogic Service Bus Console. For more information about Business Services, see Business Services in the AquaLogic Service Bus Console Online Help.

Log in to the AquaLogic Service Bus Console. Perform the configuration steps in the order presented, using the instructions in the following sections.

Add a New Project

Follow these steps:

  1. Click Create to start a new console session.

    2. You must be in a session to edit resources.

  2. Click Project Explorer.
  3. Enter a name for the new project and click Add Project.

    4. A message at the top of the page indicates that the server was added correctly.

Add a Business Service

Follow these steps:

  1. Click the newly created project.
  2. In the Resources area Create Resource dropdown menu, select Business Service.

    3. The Edit a Business Service - General Configuration page displays, as shown in Figure 2-9.

    Figure 2-9 New Business Service Page 1

    New Business Service Page 1



  3. Enter the following values:

    4. Service Name - The name of the service

    Service Type - Select Any XML Service (the default)

    Click Next to display the Edit a Business Service - Transport Configuration page as shown in Figure 2-10.

    Figure 2-10 New Business Service Page 2

    New Business Service Page 2



  4. Enter the following values:

    5. Protocol - Select jms.

    Load Balancing Algorithm - Leave the default as is, or select another algorithm.

    Endpoint URI - Enter a JMS URI. that corresponds to the endpoint URI on the server where the service was deployed.

  5. Click Next to continue.
  6. Enter the following values:

    7. Is Response Required - Select the checkbox.

    Response URI - Enter a valid response URI.

    Response Timeout - 30.

    Message Type - Text.

  7. Click Finish.
  8. At the Summary page, click Save.

Add a Proxy Service

Create a proxy service for testing purposes. For more information about proxy services, see Proxy Services in the AquaLogic Service Bus Console Online Help.

Follow these steps:

  1. In the Resources area Create Resource dropdown menu, select Proxy Service.

    2. The Edit a Proxy Service - General Configuration page displays, as shown in Figure 2-11.

    Figure 2-11 New Proxy Service Data Entry Page 1

    New Proxy Service Data Entry Page 1



  2. Enter the following values:

    3. Service Name - The name of the service

    Service Type - Select Any SOAP Service

    Click Next to display the Edit a Proxy Service - Transport Configuration page, as shown in Figure 2-12.

    Figure 2-12 New Proxy Service Data Entry Page 2

    New Proxy Service Data Entry Page 2



  3. Enter the following required values:

    4. Protocol - Select http.

    Endpoint URI - The URI field automatically displays a URI corresponding to your proxy service name. You can leave it as is, or enter a different URI.

  4. Click Finish.
  5. At the Summary page, click Save.

Configure the Proxy Service

AquaLogic Service Bus Message Flows define the implementation of proxy services. Message flows can include zero or more pipeline pairs: request and response pipelines for the proxy service (or for the operations on the service) and error handler pipelines that can be defined for stages, pipelines, and proxy services. Pipelines can include one or more stages, which in turn include actions. To change the routing behavior of the proxy service you will edit this message flow to:

Follow these steps:

  1. In the AquaLogic Service Bus Console navigation panel, select Resource Browser from the list of available choices, if it is not already selected.

    2. The Resource Browser pane is opened in the navigation panel and the Summary of Proxy Services project page is displayed in the console.

  2. In Options, click the Message Flow icon New Proxy Service Data Entry Page 2 . A display similar to Figure 2-13 appears:

    3. Figure 2-13 Message Flow Default Display

    Message Flow Default Display




    The Edit Message Flow page for the proxy service you created previously is displayed. This page displays the default message flow configuration. The default configuration consists of a start node. This is the minimum configuration of a message flow. The behavior of the message flow is sequential.

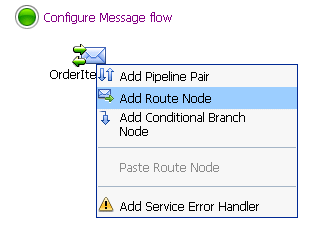

  3. Click the Start Node. From the popup menu select the Add Route Node link, as shown in Figure 2-14.

    4. Figure 2-14 Convert to Route Node Display

    Convert to Route Node Display



  4. In the configuration dialog, name the route node as desired and click Save.

    5. In the message flow, the name of the node changes to display the route node name.

  5. Click the route node and from the pop up menu select Edit > Route Node, as shown in Figure 2-15:

    6. Figure 2-15 Edit Route Node Display

    Edit Route Node Display




    The Edit Stage Configuration page is displayed. The page contains a single link, Add an Action.

    A stage is an element of a pipeline and it is a container for actions defined in a pipeline. Actions are the elements of a pipeline stage that define the handling of messages as they flow through a proxy service.

  6. Click the Add an Action link, then select Routing from the popup menu, as shown in Figure 2-16:

    7. Figure 2-16 Message Flow Routing Display

    Message Flow Routing Display




    The Edit Stage Configuration page changes to display the contents of the action. The contents of the action are defined by the type of node we created—a route node.

  7. In Route to <Service>, click <Service>, as shown in Figure 2-17:

    8. Figure 2-17 Route to Service Display

    Route to Service Display




    The Service Browser displays the names of the Proxy Service and Business Service that you created.

  8. Select the Business Service that you created in Add a Business Service.
  9. Click Submit.

    10. The display updates to show routing to the Business Service.

The configuration is completed and ready to test.

Testing Your Configuration

Now that you have configured AquaLogic Service Bus to work with BEA Tuxedo, you can test the application. One way to test the configuration is to use a WebLogic Workshop-based application, by setting up a web service proxy and calling it using a default pipeline.

The following list of tasks summarizes the process of testing outbound usage of BEA Tuxedo by AquaLogic Service Bus.

  1. Build and start the Tuxedo servers and the WebLogic Workshop application.
  2. Set up a WebLogic Workshop application to call the AquaLogic Service Bus proxy.
  3. Run the web service in the WebLogic Workshop application, inputting a request. A successful response to the request indicates that the configuration is correct.



Using AquaLogic Service Bus Services from BEA Tuxedo (Inbound Example)

The following sections describe how to use AquaLogic Service Bus services from BEA Tuxedo:

Implementation Overview

The WebLogic Tuxedo Connector allows BEA Tuxedo applications to call an EJB as though it were another BEA Tuxedo application. This scenario uses a particular example EJB that performs the function of receiving a Tuxedo service request, translating the buffer as necessary, and placing the resulting message on a JMS queue. The method described in this document is based on setting up an EJB using deployment descriptors; this method also provides translation of Tuxedo buffers to and from JMS messages.

Before You Begin

Gather the following information about the AquaLogic Service Bus application that BEA Tuxedo will use:

You must create the following JMS queues if they do not already exist:

Configuring the Sample EJB ToQSBean

Set environment entries in the ejb-jar.xml file and set the name of the exported service that WebLogic Tuxedo Connector will allow other domains to call. The following sections contain instructions for these tasks.

Edit the ejb-jar.xml File

In the ejb-jar.xml file, set the following environment entries:

Edit the weblogic-ejb-jar.xml File

In the weblogic-ejb-jar.xml file, set the EJB's JNDI name to tuxedo.services.svcnameHome where svcname is the ATMI service name that the deployment supports. This is the name of the exported service that WTC allows other domains to call.

For reference information on the structure of the weblogic-ejb-jar.xml file, see weblogic-ejb-jar.xml Deployment Descriptor Reference in Programming WebLogic Enterprise JavaBeans.

Adding Field Classes to EJB's JAR File

This task is optional if you set up field classes as described in Create Field Table Classes (if Required). Any Field Table class files required for XML to FML and FML to XML conversion must be included in the EJB's JAR file. For instructions on performing this task, see the WebLogic Server Javadoc.

Building and Deploying the EJB

Deploying an EJB enables WebLogic Server to serve the components of an EJB to clients. You can deploy an EJB using one of several procedures, depending on your environment and whether or not your EJB is in production.

For general instructions on deploying WebLogic Server applications and modules, including EJBs, see Deploying Applications to WebLogic Server in the WebLogic Server documentation. For EJB-specific deployment issues and procedures, see Deployment Guidelines for Enterprise Java Beans in Programming WebLogic Enterprise JavaBeans.

Configuring WebLogic Tuxedo Connector

You configure WebLogic Tuxedo Connector using the WebLogic Server Administration Console. For additional information about the WebLogic Tuxedo Connector, see WebLogic Tuxedo Connector in the WebLogic Server documentation.

Log in to the WebLogic Server Administration Console and perform these steps in the order presented.

Note: If you performed the WTC setup described in Configuring WebLogic Tuxedo Connector and the Tuxedo Queuing Bridge, you can skip the corresponding tasks described here; the only required task is to create a WTC Export Service.

To complete this configuration, you will perform the tasks described in the following sections:

Create a New WTC Server

Follow these steps:

  1. Click WTC Servers under the Interoperability tab.
  2. Click Lock & Edit; this allows you to make changes. A display similar to Figure 2-18 appears:

    3. Figure 2-18 WTC Server Display

    WTC Server Display



  3. Click New to add the new WTC server. A display similar to Figure 2-19 appears:

    4. Figure 2-19 New WTC Server Data Entry Display

    New WTC Server Data Entry Display



  4. Enter a name for the WTC server and click OK.

    5. A message at the top of the page indicates that the server was added correctly.

  5. Click the newly created WTC server to display its settings.

Create a Local Access Point

Follow these steps:

  1. Click Local APs on the Configuration tab.
  2. Click New to create a new WTC Local Access Point. A display similar to Figure 2-20 appears:

    3. Figure 2-20 New Local Access Point Data Entry Display

    New Local Access Point Data Entry Display



  3. Enter the following values:

    4. Access Point - A name for this access point.

    Access Point ID - The name WebLogic Server will use to refer to the access point. This value must match the Remote Access Point ID that the Tuxedo domain gateway has been configured to use for this WTC instance.

    Network Address - This value must match the remote network address that the Tuxedo domain gateway has been configured to use for this WTC instance.

  4. Click OK.

Create a Remote Access Point

Follow these steps:

  1. Click Remote APs on the Configuration tab.
  2. Click New to create a new WTC Remote Access Point. A display similar to Figure 2-21 appears:

    3. Figure 2-21 New Remote Access Point Data Entry Display

    New Remote Access Point Data Entry Display



  3. Enter the following values:

    4. Access Point - A name for this access point.

    Access Point ID - The name WebLogic Server will use to refer to the access point. This value must match the Local Access Point ID that the Tuxedo domain gateway has been configured to use for this WTC instance.

    Local Access Point - The name of WTC Local Access Point.

    Network Address - This value must match the local network address that the Tuxedo domain gateway has been configured to use for this WTC instance.

  4. Click OK.

Create a WTC Export Service

Follow these steps:

  1. Click Exported on the Configuration tab.
  2. Click New to create a new WTC Exported Service. A display similar to Figure 2-22 appears:

    3. Figure 2-22 New WTC Export Service Data Entry Display

    New WTC Export Service Data Entry Display



  3. Enter the following values:

    4. Resource Name - The name WebLogic Server will use to refer to the service (including the tBridge)

    Local Access Point - The name of the local access point you created earlier

    EJB Name - The complete name of the EJB home interface to use when invoking a service

    Remote Name - The name of the service as exported by the remote Tuxedo system

  4. Click OK.

Adding and Configuring a Proxy Service

To utilize theAquaLogic Service Bus service from Tuxedo, you must configure a new proxy service using the AquaLogic Service Bus Console. For more information about proxy services, see Proxy Services in the AquaLogic Service Bus Console Online Help.

Log in to the AquaLogic Service Bus Console and perform these steps in the order presented.

To complete this configuration, you will perform the tasks described in the following sections:

Add a New Project

Follow these steps:

  1. Click Create to start a new console session.

    2. You must be in a session to edit resources.

  2. Click Project Explorer.
  3. Enter a name for the new project and click Add Project.

    4. A message at the top of the page indicates that the server was added correctly.

Add a Proxy Service

Follow these steps:

  1. In the Resources area Create Resource dropdown menu, select Proxy Service.

    2. The Edit a Proxy Service - General Configuration page displays, as shown in Figure 2-23.

    Figure 2-23 New Proxy Service Data Entry Page 1 - Inbound

    New Proxy Service Data Entry Page 1 - Inbound



  2. Enter the following values:

    3. Service Name - The name of the service

    Service Type - Select Any XML Service (the default)

    Click Next to display the Edit a Proxy Service - Transport Configuration page, as shown in Figure 2-24.

    Figure 2-24 New Proxy Service Data Entry Page 2 - Inbound

    New Proxy Service Data Entry Page 2 - Inbound



  3. Enter the following required values:

    4. Protocol - Select jms.

    Endpoint URI - Enter a JMS URI. that corresponds to the endpoint URI on the server where the service was deployed.

  4. Click Next to continue.
  5. Enter the following values:

    6. Is Response Required - Select the checkbox.

    Message Type - Text.

  6. Click Finish.
  7. At the Summary page, click Save.

Configure the Proxy Service

AquaLogic Service Bus Message Flows define the implementation of proxy services. Message flows can include zero or more pipeline pairs: request and response pipelines for the proxy service (or for the operations on the service); and error handler pipelines that can be defined for stages, pipelines, and proxy services. Pipelines can include one or more stages, which in turn include actions. To change the routing behavior of the proxy service you will edit this message flow to:

Follow these steps:

  1. In the AquaLogic Service Bus Console navigation panel, select Resource Browser from the list of available choices, if it is not already selected.

    2. The Resource Browser pane is opened in the navigation panel and the Summary of Proxy Services project page is displayed in the console.

  2. In Options, click the Message Flow icon New Proxy Service Data Entry Page 2 - Inbound . A display similar to Figure 2-25 appears:

    3. Figure 2-25 Message Flow Default Display

    Message Flow Default Display




    The Edit Message Flow page for the proxy service you created previously is displayed. This page displays the default message flow configuration. The default configuration consists of a start node. This is the minimum configuration of a message flow. The behavior of the message flow is sequential.

  3. Click the Start Node. From the popup menu select the Add Route Node link, as shown in Figure 2-26.

    4. Figure 2-26 Convert to Route Node Display

    Convert to Route Node Display



  4. In the configuration dialog, name the route node as desired and click Save.

    5. In the message flow, the name of the node changes to display the route node name.

  5. Click the route node and from the pop up menu select Edit > Route Node, as shown in Figure 2-27:

    6. Figure 2-27 Edit Route Node Display

    Edit Route Node Display




    The Edit Stage Configuration page is displayed. The page contains a single link, Add an Action.

    A stage is an element of a pipeline and it is a container for actions defined in a pipeline. Actions are the elements of a pipeline stage that define the handling of messages as they flow through a proxy service.

  6. Click the Add an Action link, then select Routing from the popup menu, as shown in Figure 2-28:

    7. Figure 2-28 Message Flow Routing Display

    Message Flow Routing Display




    The Edit Stage Configuration page changes to display the contents of the action. The contents of the action are defined by the type of node we created—a route node.

  7. In Route to <Service>, click <Service>, as shown in Figure 2-29:

    8. Figure 2-29 Route to Service Display

    Route to Service Display




    The Service Browser displays the names of the Proxy Service and Business Service that you created.

  8. Select the Business Service that you want to expose to Tuxedo.
  9. Click Submit.

    10. The display updates to show routing to the Business Service.

The configuration is completed and ready to test.

Testing Your Configuration

Now that you have configured BEA Tuxedo to work with AquaLogic Service Bus, you can perform a test to verify that it is working correctly. If you are using XML-to-FML32 and FML32-to-XML conversions, you can test this configuration using the "ud32" Tuxedo client program that is included with BEA Tuxedo. (If you are using FML conversions, you can use the "ud" client.) ud32 reads input consisting of text representation of FML buffers. For more information, see the information on the ud and ud32 commands in the Tuxedo Command Reference.

If you are not using XML-to-FML and FML-to-XML conversions, you must develop a test client program in Tuxedo to test this configuration. To find information on this task, refer to the BEA Tuxedo documentation.



Skip navigation bar  Back to Top Previous Next
