Installation Guide

Installing Data Services Platform Using GUI Mode

This chapter describes how to install Data Services Platform (DSP) using GUI mode. It includes the following sections:

Following installation, you can perform specific post-installation tasks such as verifying successful installation and exploring DSP shortcuts and paths. For more information, see Post-Installation Tasks.

Figure 2-1 illustrates the current step in the overall installation process.

Figure 2-1 GUI Mode Installation Step

GUI Mode Installation Step

Before You Install

Before you begin installing DSP, confirm that the following conditions are met:

WebLogic Server or WebLogic Platform 8.1 installed in the <BEAHOME> directory in which you are going to install DSP.
DSP is not running on the system.

You must remove DSP in cases when it is located in the same <BEAHOME> directory to which you plan to install. See Uninstalling Data Services Platform for details.

It is recommended for Windows (and a requirement for UNIX) that an entry for the JDK142_05 bin directory (for example <BEA_HOME>/JDK142_05/bin) be included in your PATH environment variable setting before any other JDK bin directories.

For additional information about installation prerequisites, see Installation Prerequisites in Preparing to Install BEA AquaLogic Data Services Platform.

Installing Using GUI Mode

This section describes how to using the GUI installer application to install DSP on Microsoft Windows and UNIX-based platforms.

To install DSP in GUI mode:

Launch the GUI installer application.

On Microsoft Windows-based systems, do the following:

Navigate to the folder to which you downloaded the DSP installer using Windows Explorer.

Double-click on the installer executable file aldsp_201_win32-1.exe.

On UNIX and Linux-based systems, do the following:

Verify that the console attached to

the machine on which you are installing the software supports a Java-based GUI.

Open a command window, and change (cd) to the directory to which you downloaded the DSP installer file.

Start the installer in a new shell by entering the following:

sh filename.bin
where filename.bin is the name of the DSP installation program specific to your platform. For example, enter the following to start the Solaris version of the DSP installation program:
sh aldsp_201_solaris32.bin
Alternatively, if you have the current JDK supported by WebLogic Platform 8.1 in your path you can just try running: ./aldsp_201_linux32.bin

The installer application welcomes you to install DSP, as illustrated in Figure 2-2. Figure 2-2 DSP Installation Welcome Screen

Click Next to begin the installation.

The License Agreement appears.

Review the License Agreement, using the scroll bar to display the text. Choose Yes to accept, and click Next.

A screen appears enabling you to specify the BEA home directory, as illustrated in Figure 2-3. Figure 2-3 Choose BEA Home Directory
The BEA home (<BEAHOME>) directory serves as the central support directory for all the BEA products installed on your system. For a detailed description of how the <BEAHOME> directory is used, see "BEA Home Directory" in "Preparing to Install WebLogic Server" in Installing WebLogic Server. This document is available, in the BEA WebLogic Server document set, at the following URL:
http://download.oracle.com/docs/cd/E13222_01/wls/docs81/installprepare.html

Specify the BEA home directory, and click Next.

You can choose a directory from the list, or type the directory name in the BEA Home Directory field. You must install DSP in the same directory where you installed WebLogic Platform 8.1
A warning message is displayed under two conditions:

When a previously installed copy of DSP is found. In this case, you must uninstall DSP before installing the product again.
When WebLogic Platform 8.1 is not found in the specified BEA home directory. Verify that the specified directory has a WebLogic Platform 8.1 installation. If not, exit the DSP installation and install WebLogic Platform 8.1 before proceeding.

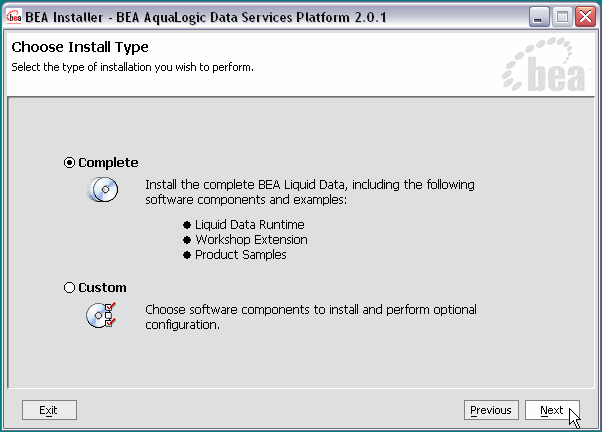

A screen appears enabling you to choose the type of installation, as illustrated in Figure 2-4. Figure 2-4 Choose Install Set

Choose either Complete or Custom as the install type, and click Next.

The following describes the options:

Complete

This option installs all DSP components, including the DSP runtime, the WebLogic Workshop extensions, the WebLogic Administration Console, and sample domains.

Custom

Enables you to choose which DSP components to install. Choosing Custom causes the screen in Figure 2-5 to appear after you click Next. Choose the components and click Next. Figure 2-5 Choosing Components to Install

The installer displays a progress screen, and begins installing the files on your system. When the installation is complete, the Installation Complete screen appears.

Click Done.

You have successfully installed an instance of Data Services Platform.
