Display Library Components With Automatic Bundles

Display all library components that have an automatic log bundle within a specified time period.

  1. In the left navigation, expand Tape System Hardware and then select the Overview screen of a component type (such as Libraries—Overview).

    Tape System Hardware menu with Overview selected.

  2. Verify that the Last Automatic Bundle Created column is in the table. If not, add the column to the table:
    1. From the View drop-down, click Columns.
    2. Select Last Automatic Bundle Created from the list, or alternatively, repeatedly press the down arrow and select Manage Columns at the end of the list. You can use this dialog to make the Last Automatic Bundle Created column visible. When you are finished, click OK.
  3. Filter for bundles created during specified time period:
    1. Click Filter Data Filter Data icon in the table toolbar.
    2. In the filter matching field, select Match ALL of the following.
    3. Specify criteria using the Last Automatic Bundle Created attributes.

      For example: Last Automatic Bundle Created (Dates) | Is After | a date.

    4. Click Apply.

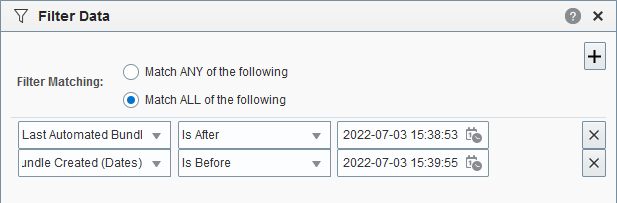

      Sample filter dialog box using Last Automate Bundle Created
