3 Verifone P400/P630 Power over Ethernet (PoE) Splitter

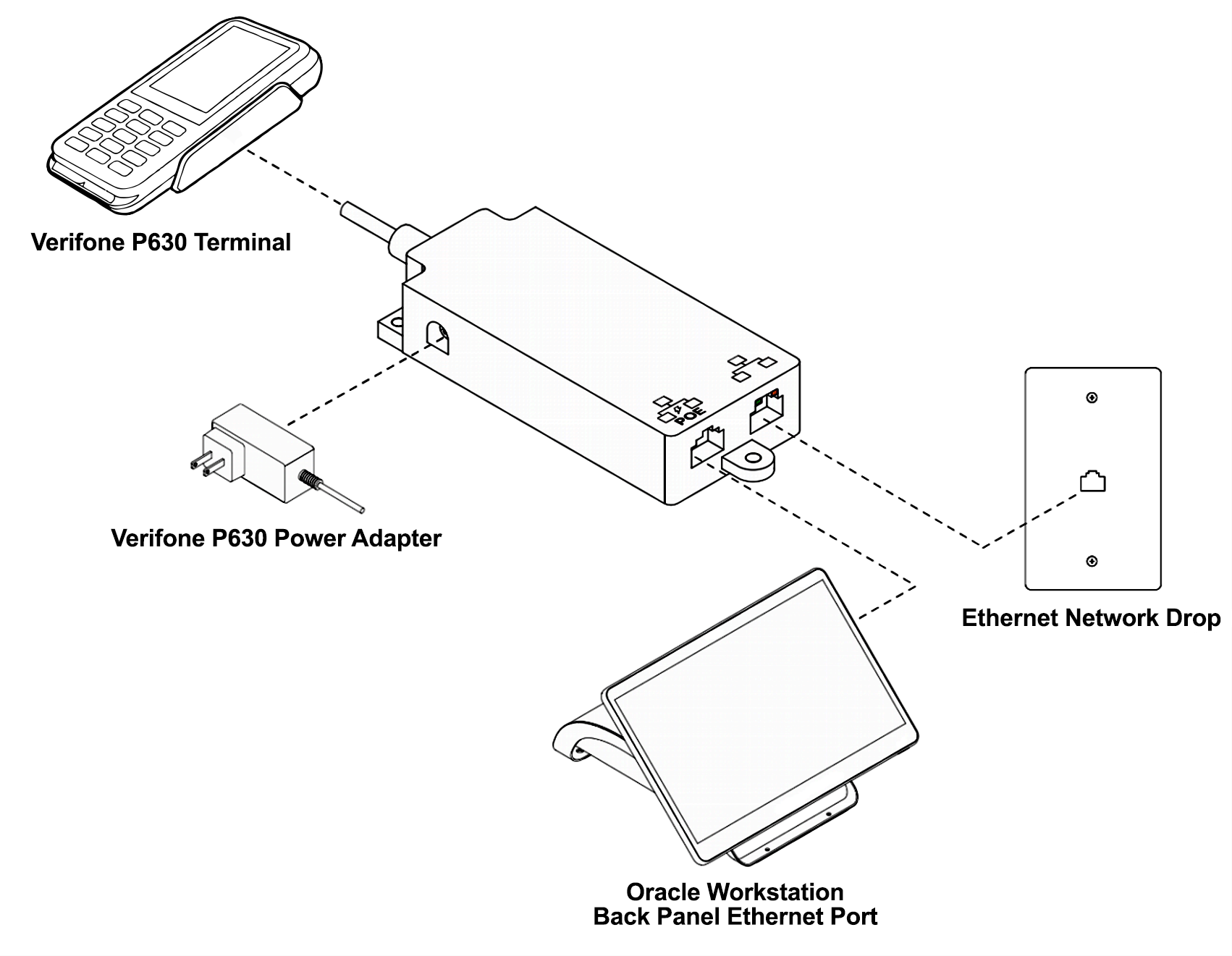

The Verifone P400/P630 PoE Splitter lets you use a single Ethernet data connection for both the Oracle Workstation and the Verifone P630 payment terminal. If PoE is available, you can eliminate the need for an external power adapter. Without PoE, you can use the existing P400/P630 power adapter as shown in the connection diagram.

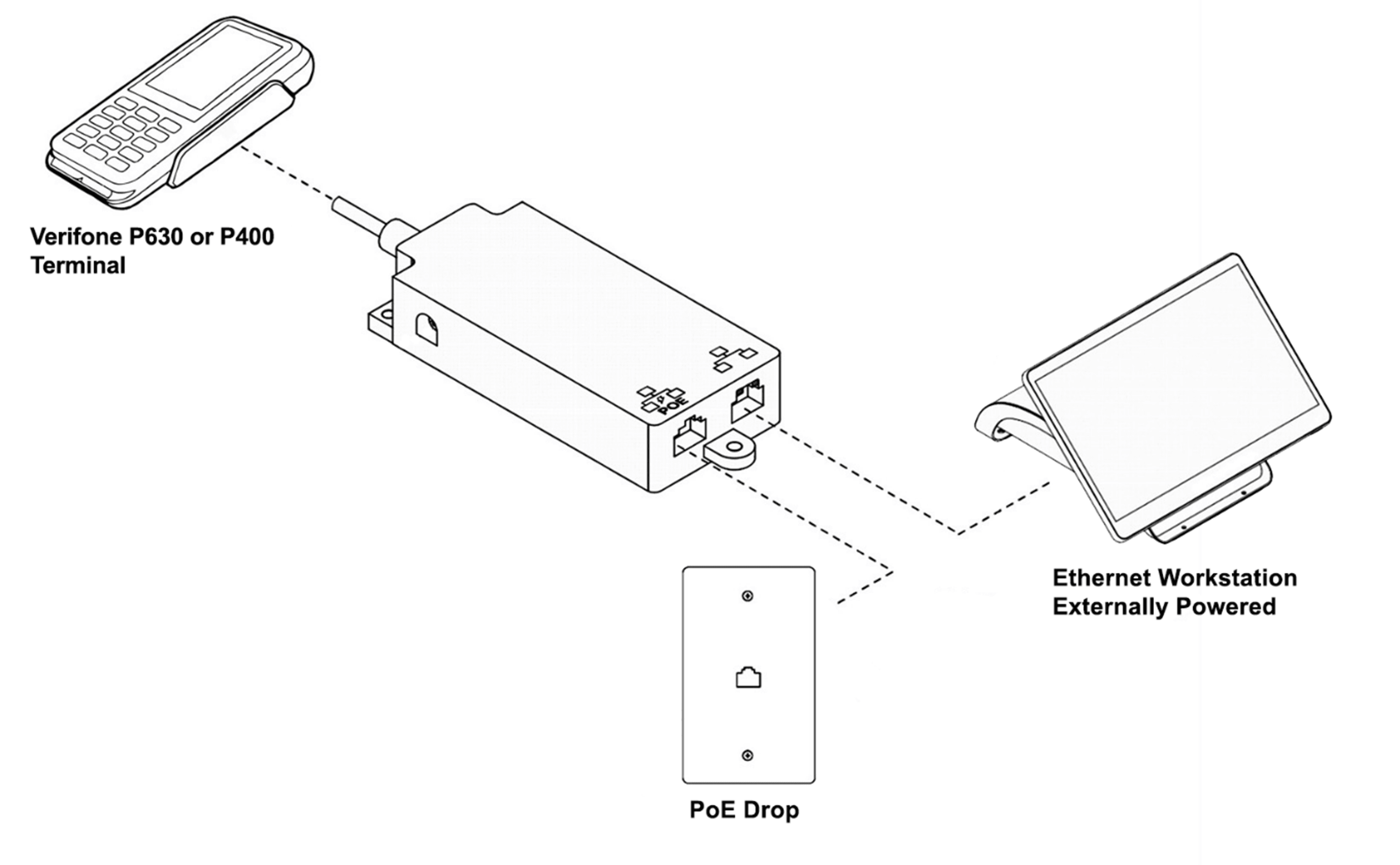

This figure shows how to install the Verifone P400/P630 PoE Splitter in an environment with PoE availability.

Prerequisites

  • Verifone P630

  • Verifone P400/P630 PoE Splitter (P/N CBL435-011-01-B)

  • 2 Ethernet cables

  • Adyen Device Admin PIN

  • Oracle Simphony Workstation not on VPN

Install the Verifone P400/P630 PoE Splitter

  1. Connect the payment terminal power supply to the Verifone P400/P630 PoE Splitter, and then connect the power supply to an outlet.

  2. Connect an Ethernet cable from the lightless PoE Ethernet port on the Verifone P400/P630 PoE Splitter to the Ethernet port on an Oracle workstation.

  3. Connect the Ethernet cable from the router/switch to the lighted Ethernet port on the Verifone P400/P630 PoE Splitter.

  4. On the payment terminal, press the 9 key and then the green confirm button to enter the Admin console.

  5. Enter the admin PIN provided by the Oracle MICROS Payments team, and then press the green 0 Confirm key.

  6. In the Admin menu, tap Network, and then tap 2. Ethernet.

  7. Tap Static, scroll down and tap Apply, and then press the red X key on the payment terminal to go back to the network type selection screen.

  8. Log in EMC Workstations, and then open Devices SPI Configuration.

  9. Under Transport Service Properties, click the Primary Host field, and then add the payment terminal address in the following format: https://PinpadIPAddress:8443.

    Note: Replace PinpadIPAddress with the actual IP address of your P630. To determine the correct IP address, press the 9 key, press the green 0 Confirm key, tap Network, and then tap USB ethernet. The IP address field at the top of the screen displays the IP address of the P630.

  10. Under Security, click the Security Settings field, and then select Use Https with No Certificate Validation.
