3.9.2 View Scoring Feature

This topic describes the systematic instructions to view the list of scoring feature.

The user can configure the scoring feature using the Create Scoring Feature screen. The status of the created scoring feature is displayed as Unauthorized and Open. Once the checker authorizes the model, the status is updated to Authorized and Open.
Specify User ID and Password, and login to Home screen.
  1. On Homescreen, click Core Maintenance under Core Maintenance, click Credit Decision.
  2. Under Credit Decision, click Maintenance, under Maintenance, click Scoring Feature, under Scoring Feature, click View Scoring Feature.
    The View Scoring Feature screen displays.

    Figure 3-31 View Scoring Feature


    Description of Figure 3-31 follows
    Description of "Figure 3-31 View Scoring Feature"

    For more information on fields, refer to the field description table.

    Table 3-29 View Scoring Feature – Field Description

    Field Description
    Feature Code Displays the feature code.
    Feature Description Displays the description of the feature.
    Product Processor Displays the product processor for which the feature is created.
    Authorization Status Displays the authorization status of the record.
    The options are:
    • Authorized
    • Rejected
    • Unauthorized
    Record Status Displays the status of the record.
    The options are:
    • Open
    • Closed
    Modification Number Displays the number of modification performed on the record.
  3. On View Scoring Feature screen, Click
    Search

    icon.
    The View Scoring Feature - Search screen displays.

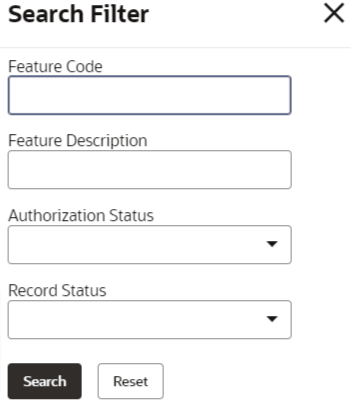

    Figure 3-32 View Scoring Feature - Search


    Description of Figure 3-32 follows
    Description of "Figure 3-32 View Scoring Feature - Search"

    For more information on fields, refer to the field description table.

    Table 3-30 View Scoring Feature - Search – Field Description

    Field Description
    Feature Code Specify the feature code.
    Feature Description Specify the feature description.
    Authorization Status Select the authorization status from the drop-down list.
    The available options are:
    • Authorized
    • Rejected
    • Unauthorized
    Record Status Select the record status from the drop-down list.
    The available options are:
    • Open
    • Closed
  4. Click Search to display the required scoring feature.
  5. On View Scoring Feature screen, click
    Three dots

    icon to Unlock, Delete, Authorize or View the created scoring feature.
  6. Click Unlock to modify the created scoring feature..
    The Scoring Feature Maintenance - Modify screen displays.

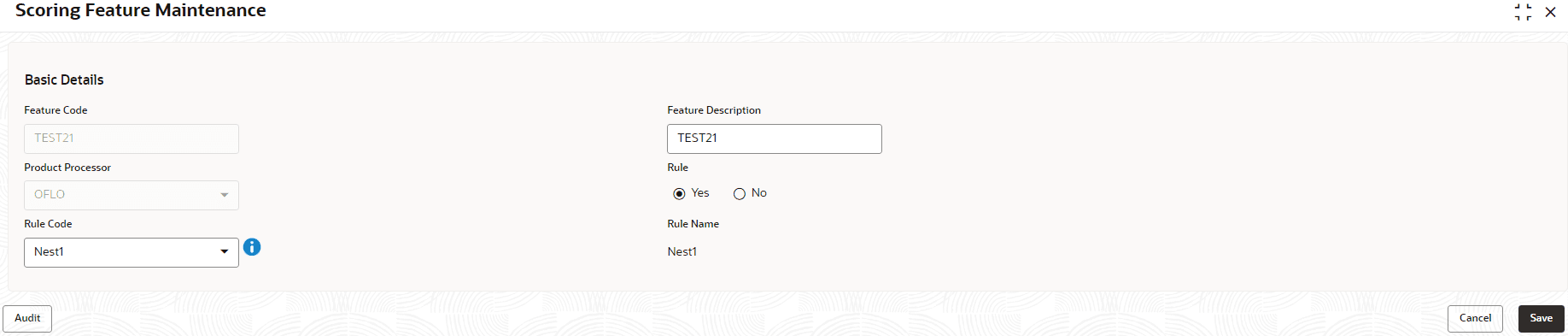

    Figure 3-33 Scoring Feature Maintenance - Modify


    Description of Figure 3-33 follows
    Description of "Figure 3-33 Scoring Feature Maintenance - Modify"

    Note:

    The fields marked as Required are mandatory.

    For more information on fields, refer to the field description table.

    Table 3-31 Scoring Feature Maintenance - Modify - Field Description

    Field Description
    Feature Code Displays the feature code.
    Feature Description The user can modify the feature description.
    Product Processor Displays the product processor for the created scoring feature.
    Rule The user can modify the rule defined to the feature.
    Rule Code The user can modify the rule code of the feature.

    This field is displayed, if the Rule is selected as Yes.


    Info

    		 Click this icon to get the information about the rule.
    Rule Name Displays the rule name of the feature.

    This field is displayed, if the Rule is selected as Yes.

    Fact Code The user can modify the fact code of the feature.

    This field is displayed, if the Rule is selected as No.

    Fact Name Displays the fact name of the feature.

    This field is displayed, if the Rule is selected as No.

  7. Click Save to update the modified fields.

Parent topic: Scoring Feature
