This topic describes the systematic instructions to view the aggregate.

1. On Homescreen, click Core Maintenance, under Core Maintenance, click Credit Decision.
2. Under Credit Decision, click Maintenance, under Maintenance, click Aggregate Configuration, under Aggregate Configuration , click View Aggregate Configuration.
   The View Aggregate Configuration screen is displayed.

   Figure 3-139 View Aggregate Configuration





   Description of "Figure 3-139 View Aggregate Configuration"




   For more information on fields, refer to the field description table.

   Table 3-118 View Aggregate Configuration - Field Description

   Field	Description
   Aggregate Name	Displays the name of the aggregate being created.
   Aggregate ID	Displays the aggregate ID associated with the aggregate.
   Table Name	Displays the auto generated from given entity name.
   Authorization Status	Displays the authorization status of the record. The options are: Authorized Rejected Unauthorized
   Record Status	Displays the status of the record. The options are: Open Closed
   Modification Number	Displays the number of modification performed on the record.

3. On View Aggregate Configuration screen, click icon.
   The View Aggregate Configuration - Search screen is displayed.

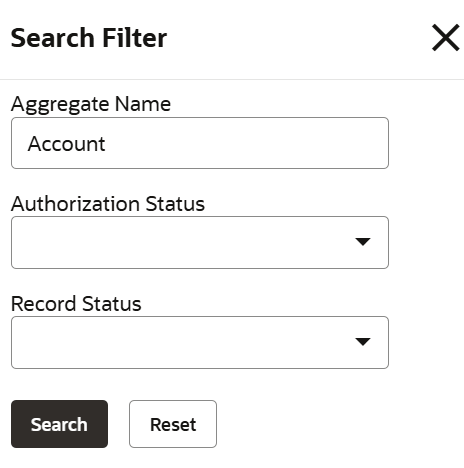

   Figure 3-140 View Aggregate Configuration - Search





   Description of "Figure 3-140 View Aggregate Configuration - Search"



4. On View Aggregate Configuration - Search screen, specify the Search Filter to fetch the required aggregate configuration.

   For more information on fields, refer to the field description table.

   Table 3-119 View Aggregate Configuration - Search – Field Description

   Field	Description
   Aggregate Name	Specify the aggregate code name.
   Authorization Status	Select the authorization status from the drop-down list. The available options are: Authorized Rejected Unauthorized
   Record Status	Select the record status from the drop-down list. The available options are: Open Closed

5. Click Search to display the required aggregate configuration.
6. On View Aggregate Parameter screen, click icon to Unlock, Delete, Authorize or View the created configurations.
7. Click Unlock to modify the created aggregate configuration.
   The Aggregate Maintenance - Modify screen is displayed.

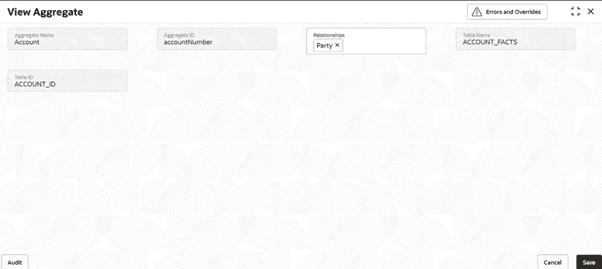

   Figure 3-141 Aggregate Maintenance - Modify





   Description of "Figure 3-141 Aggregate Maintenance - Modify"




   For more information on fields, refer to the field description table.

   Table 3-120 Aggregate Maintenance - Modify - Field Description

   Field	Description
   Aggregate Name	Displays the created aggregate name.
   Aggregate ID	Displays the created aggregate ID.
   Relationship	Displays the separated list of existing aggregates(existing entity name) to which a relationship exists. User can modify the same.
   Table Name	Displays the table name.
   Table ID	Displays the table ID.

8. Click Save to update the modified fields.
9. Click View to view the created aggregate configuration.
   The Aggregate Maintenance - View screen is displayed.

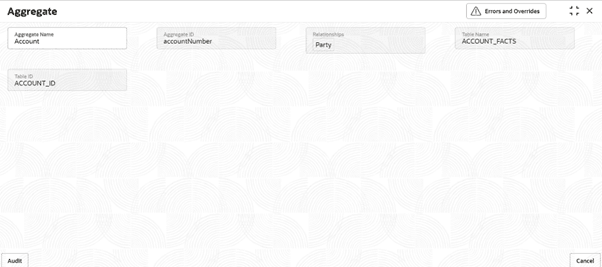

   Figure 3-142 Aggregate Maintenance - View





   Description of "Figure 3-142 Aggregate Maintenance - View"




   For more information on fields, refer to the field description table.

   Table 3-121 Aggregate Maintenance - View - Field Description

   Field	Description
   Aggregate Name	Displays the created aggregate name.
   Aggregate ID	Displays the created aggregate ID.
   Relationship	Displays separated list of existing aggregates(existing entity name) to which a relationship exists.
   Table Name	Displays the table name.
   Table ID	Displays the table ID.
