This topic provides information on target distribution path.

The target receiver server must establish a connection path to the source distribution server. This setup enables the OCI GoldenGate deployment to pull trail files from the source to the target OCI GoldenGate environment.

To create a Target-Initiated Distribution Path, follow the steps below:

1. In the OCI GoldenGate self-service console, go to the Receiver Service section.
2. Under the Receiver Service page, locate and select the Target-Initiated Path option.
3. Click on the “+” symbol to create a new Target-Initiated Path.
4. Enter the Path Details as shown in the images below, and then click Create Path to complete the configuration.
   1. Path Name – Enter a unique name for the path.
   2. Source Host / Endpoint – Specify the source distribution server hostname or IP.
   3. Port – Enter the listener port of the source distribution service.
   4. Authentication Details – Provide the Operator username and password from the source deployment.
   5. Encryption Profile – Select the required encryption profile (OCI Vault or Local Wallet).

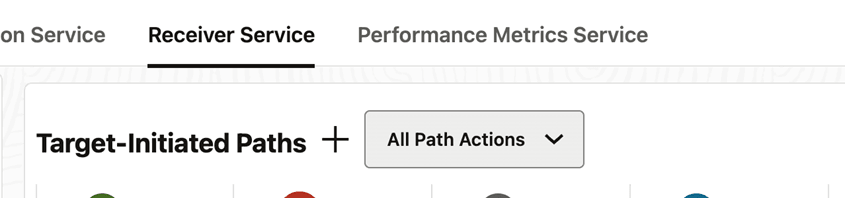

Figure 2-52 Add Receiver path

Description of "Figure 2-52 Add Receiver path"

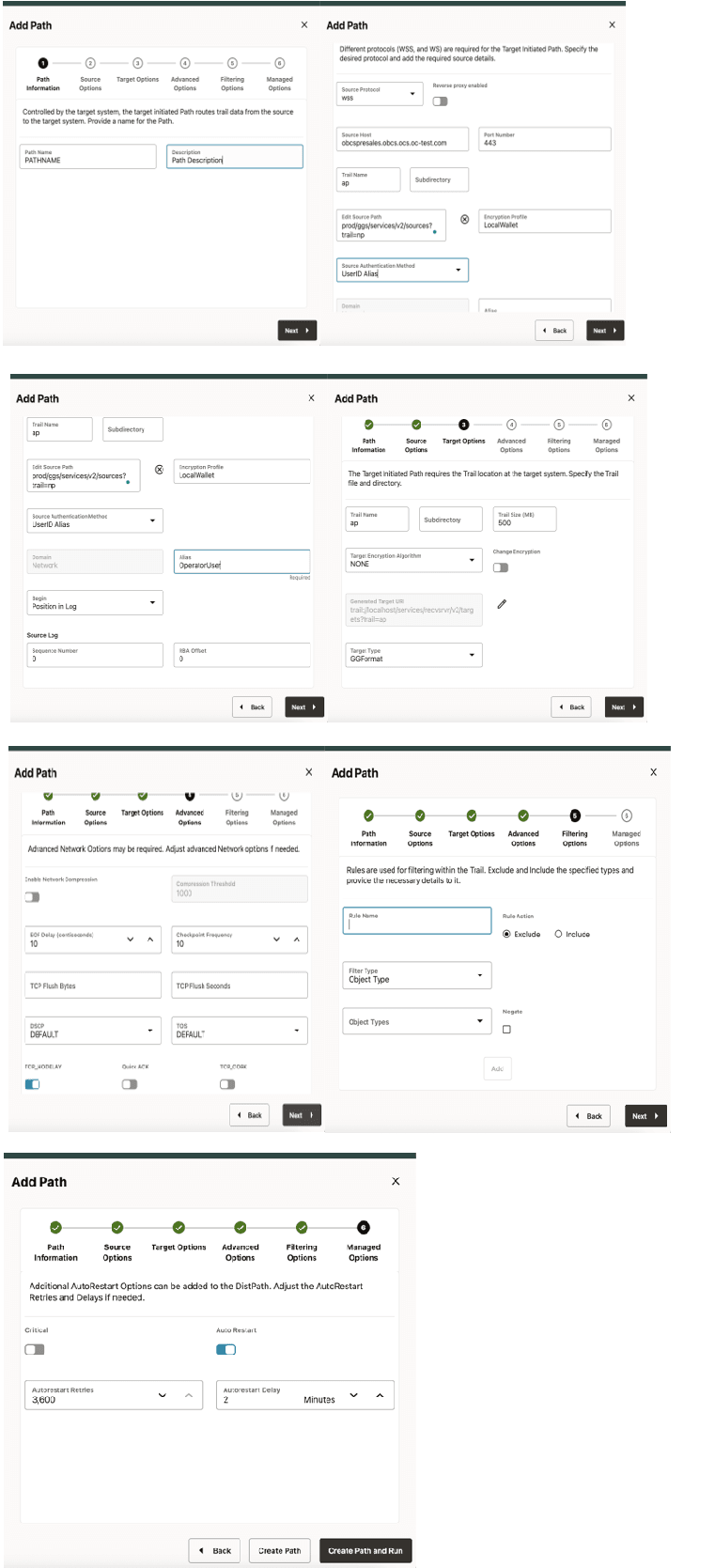

Figure 2-53 Create Path

Description of "Figure 2-53 Create Path"

User should note the following configuration settings while creating the Target-Initiated Distribution Path:

• Reverse Proxy Enabled? → Off
• Source Authentication Method → UserID Alias
• Source → wss
• Source Host → <host:port> (provided by the OBCS SaaS team via Service Request)
• Source Trail Name → <trail name> (same as the trail name used in Extract)
• Source Alias → dt1np_ggnet alias created in the Credentials step above
• Target Trail Name → np (can be any two-letter name)
• Auto Restart → On

After successfully creating the Distribution Path, the newly created path will be displayed on the Target-Initiated Distribution Path page.

Figure 2-54 Receiver current State

Description of "Figure 2-54 Receiver current State"

• To validate the Target-Initiated Path, navigate to the Target-Initiated Path menu on the left, click on the started path, and then select Path Statistics.
• You should now be able to view the Path statistics, displaying details such as DDL changes, table updates, and other relevant replication metrics.

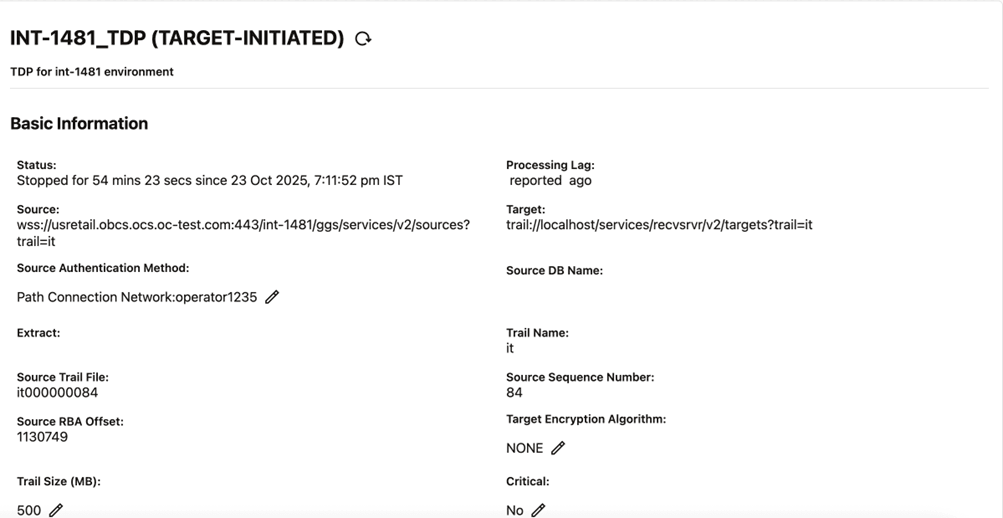

Figure 2-55 Receiver current Details

Description of "Figure 2-55 Receiver current Details"

• Navigate back to Target Initiated Path and from the Action list for the Path, select Start.

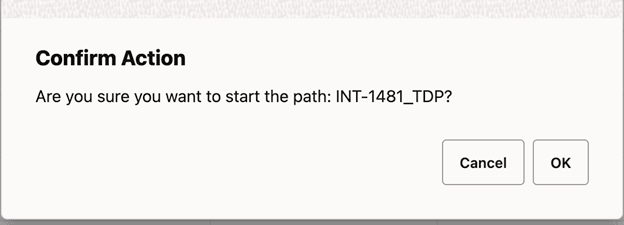

  Figure 2-56 Start Receiver Service





  Description of "Figure 2-56 Start Receiver Service"



• Once the path is up and running, navigate to Target-Initiated Path from the left-hand menu and click on the created path to view its details.

  Figure 2-57 Target-Initiated Path





  Description of "Figure 2-57 Target-Initiated Path"



• To validate the Target-Initiated Path, navigate to the Target-Initiated Path menu on the left, click on the started path, and then select Path Statistics.
• You should now be able to view the Path statistics, displaying details such as DDL changes, table updates, and other relevant replication metrics.

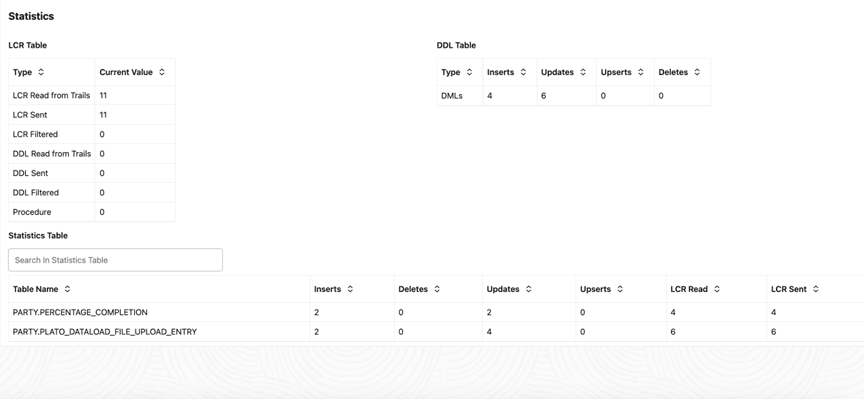

  Figure 2-58 Path statistics





  Description of "Figure 2-58 Path statistics"



• This confirms that the SaaS-to-PaaS Data Replication has been successfully established and that the target is actively pulling trail files from the SaaS environment.
