2.4.1 Create an OCI GoldenGate Deployment

This topic describes the systematic instructions to create an OCI GoldenGate deployment.

User can create an OCI GoldenGate Deployment by following the process below:

  1. Navigate to the Oracle Cloud Infrastructure console.
  2. Select the region where the user wants to create the GoldenGate deployment.

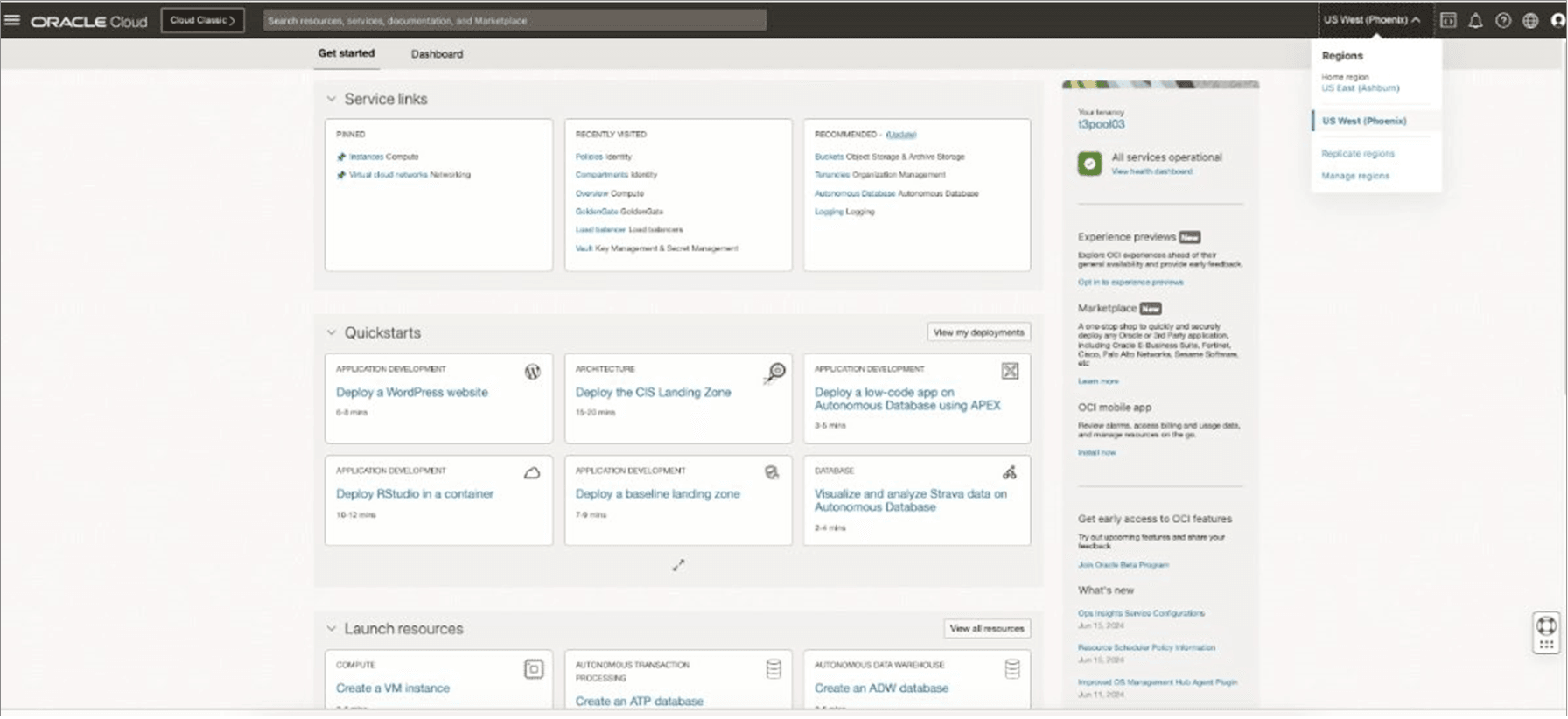

    Figure 2-29 Get Started - Regions


    Description of Figure 2-29 follows
    Description of "Figure 2-29 Get Started - Regions"

  3. Click Create Deployment, to create a GoldenGate Deployment

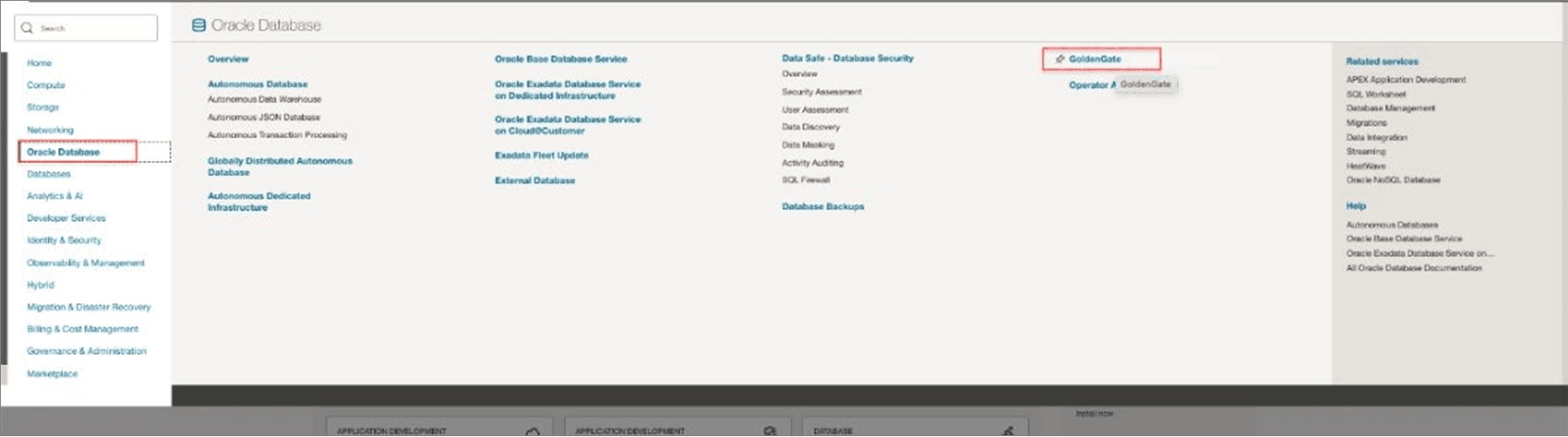

    Figure 2-30 Create Deployment


    Description of Figure 2-30 follows
    Description of "Figure 2-30 Create Deployment"

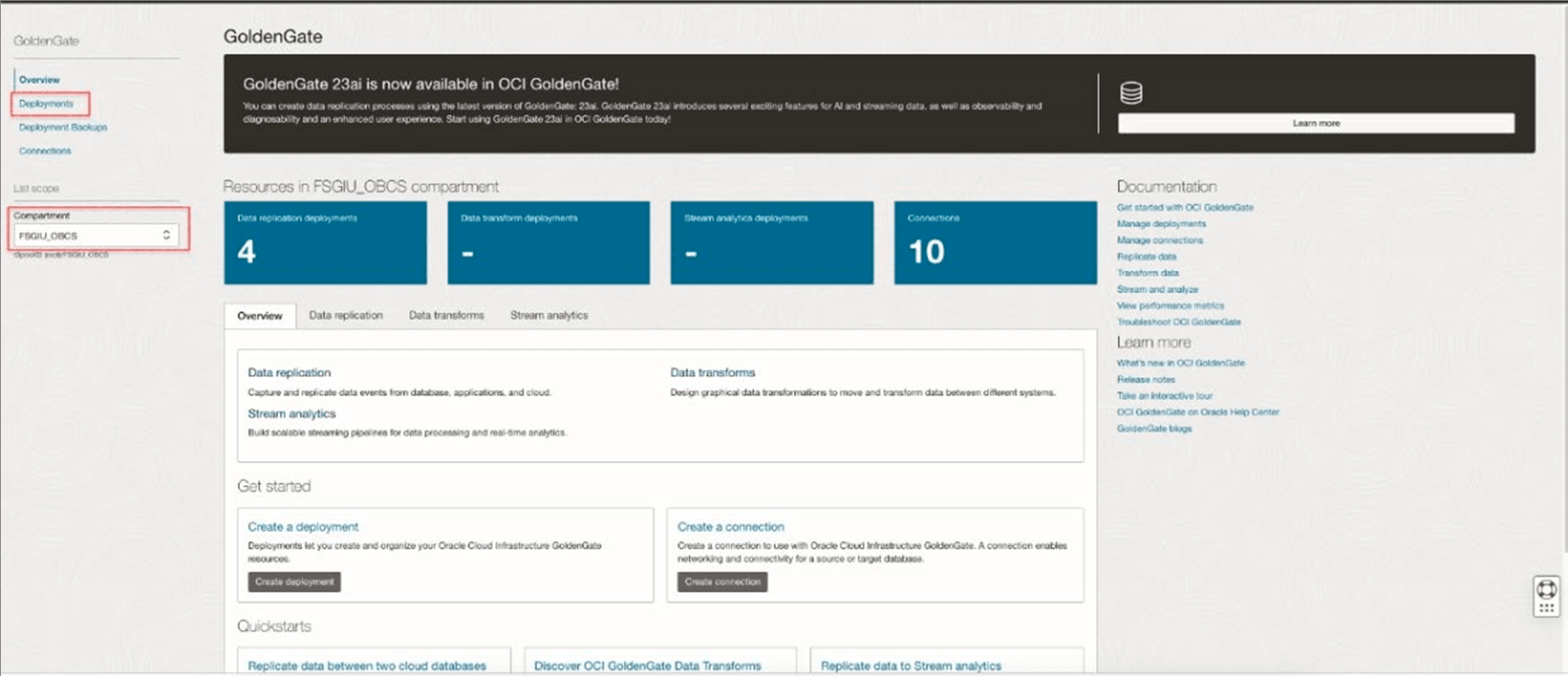

    Figure 2-31 GoldenGate


    Description of Figure 2-31 follows
    Description of "Figure 2-31 GoldenGate"

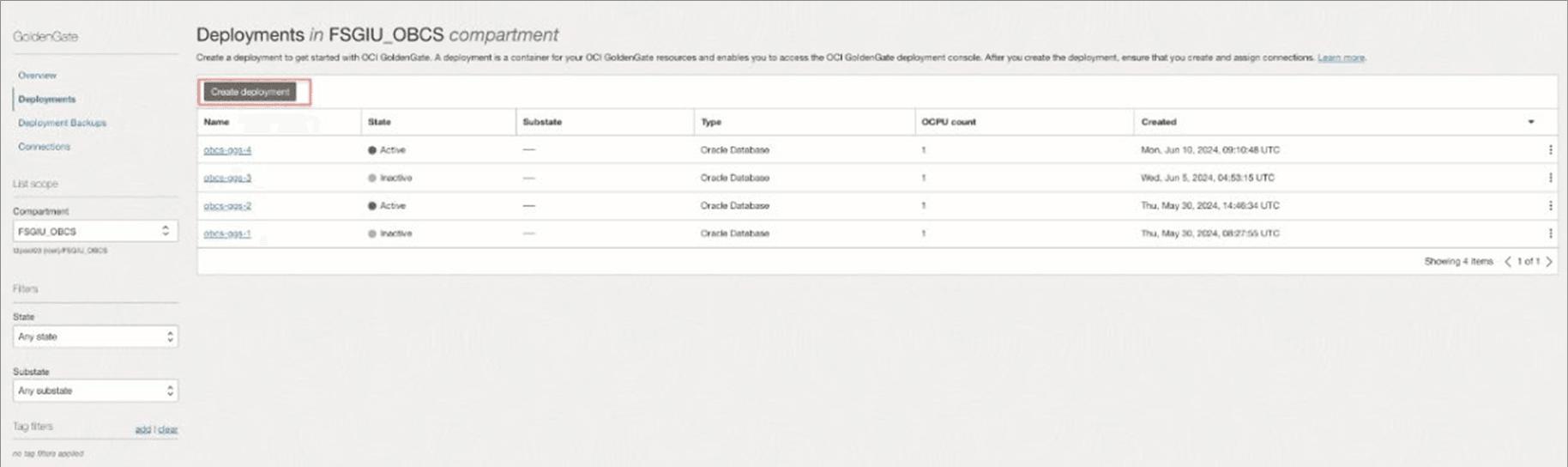

    Figure 2-32 Deployments in FSGIU_OBCS Compartment


    Description of Figure 2-32 follows
    Description of "Figure 2-32 Deployments in FSGIU_OBCS Compartment"

  4. Select Oracle GoldenGate and provide necessary details like name, compartment, and network information.

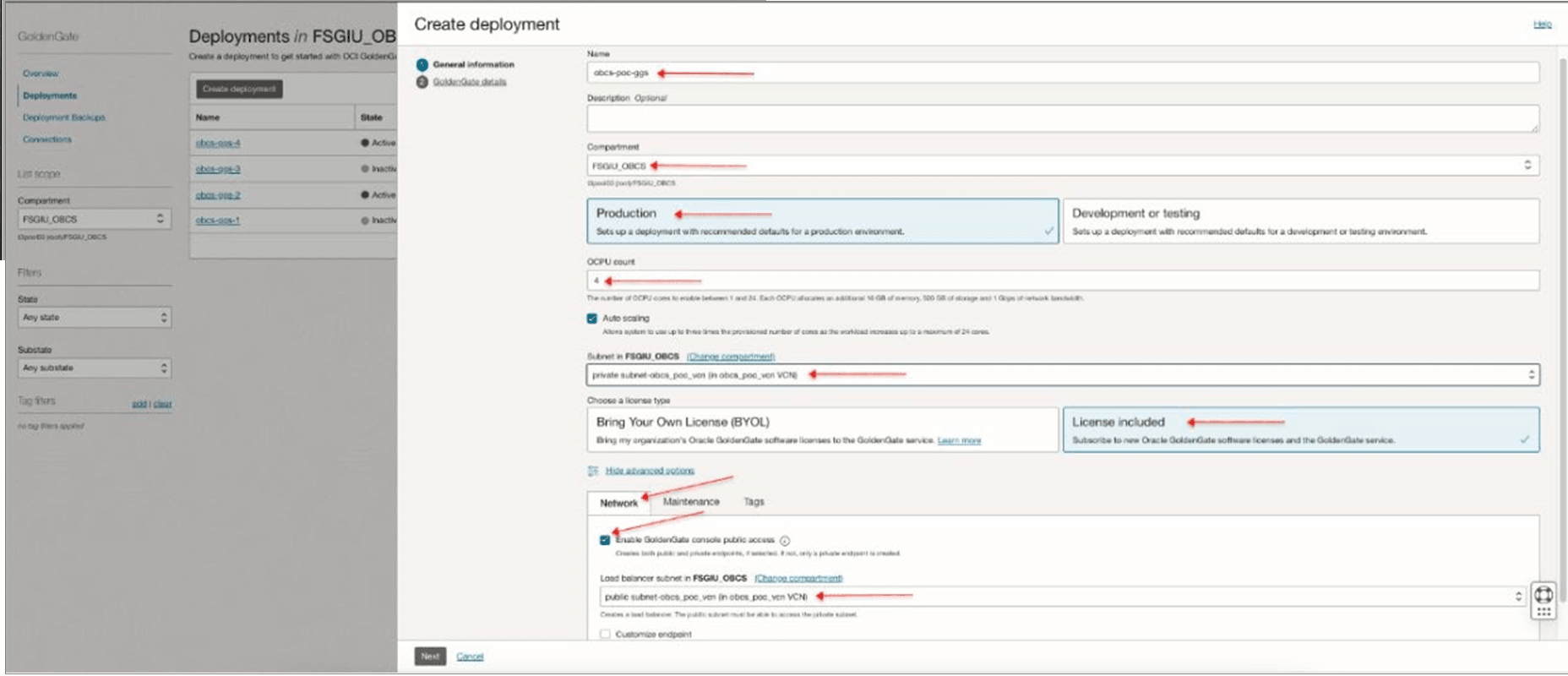

    Figure 2-33 Create Deployment


    Description of Figure 2-33 follows
    Description of "Figure 2-33 Create Deployment"

  5. Select the appropriate compute shape and configure other deployment settings.
  6. Click Create.

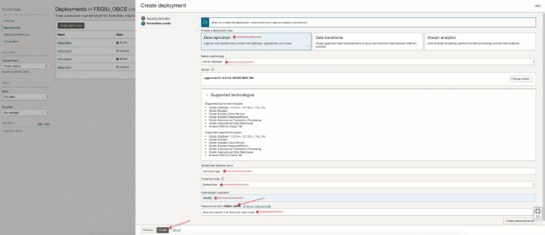

    Figure 2-34 Create Deployment


    Description of Figure 2-34 follows
    Description of "Figure 2-34 Create Deployment"

    Once the deployment is created, configure it. Note down the Admin URL and credentials.

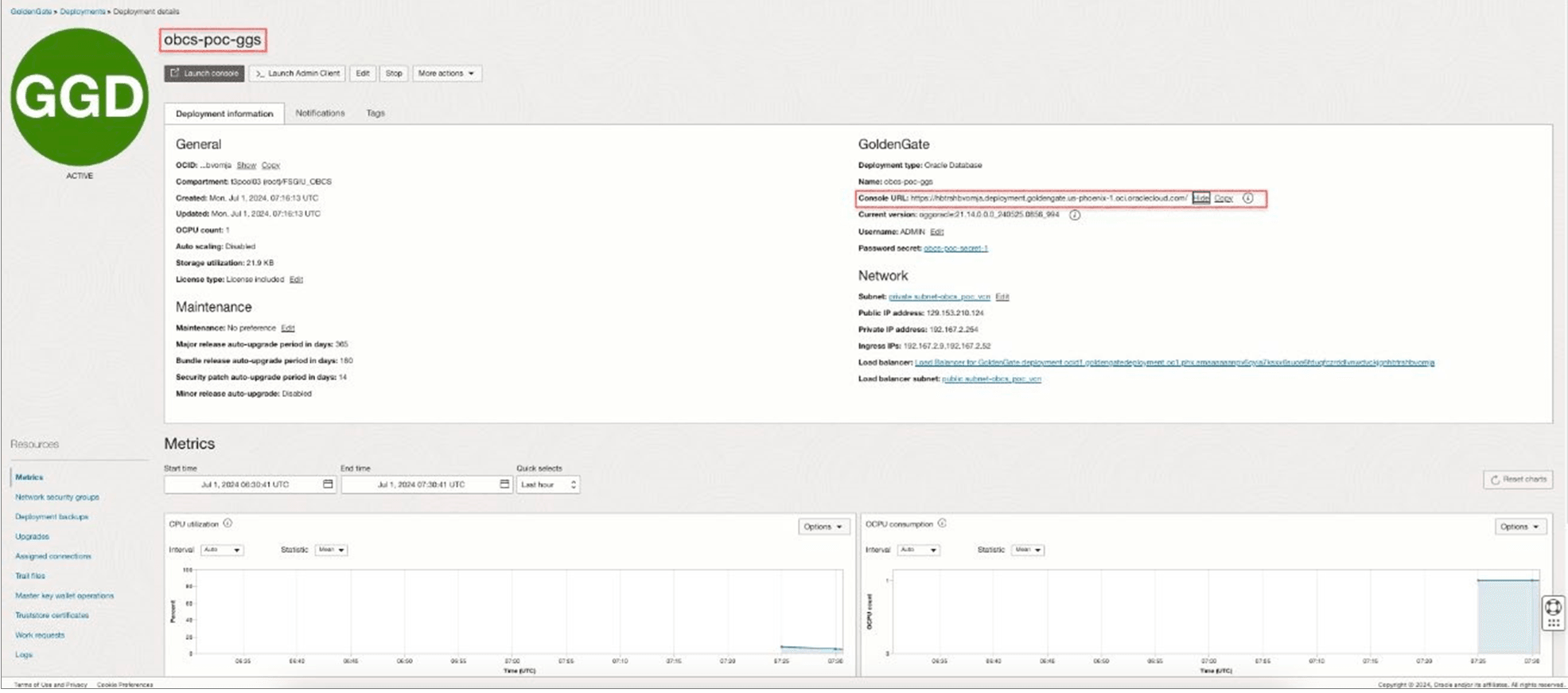

    Figure 2-35 OBCS_POC_GGS


    Description of Figure 2-35 follows
    Description of "Figure 2-35 OBCS_POC_GGS"

Parent topic: OCI GoldenGate Deployment Setup
