This topic provides the systematic instructions to create the group role mapping and perform specific actions on a record.

1. Click Security Management, and under Security Management, click Group Role Mapping.
2. Under Group Role Mapping, click Create Group Role Mapping.
   The Create Group Role Mapping screen is displayed.

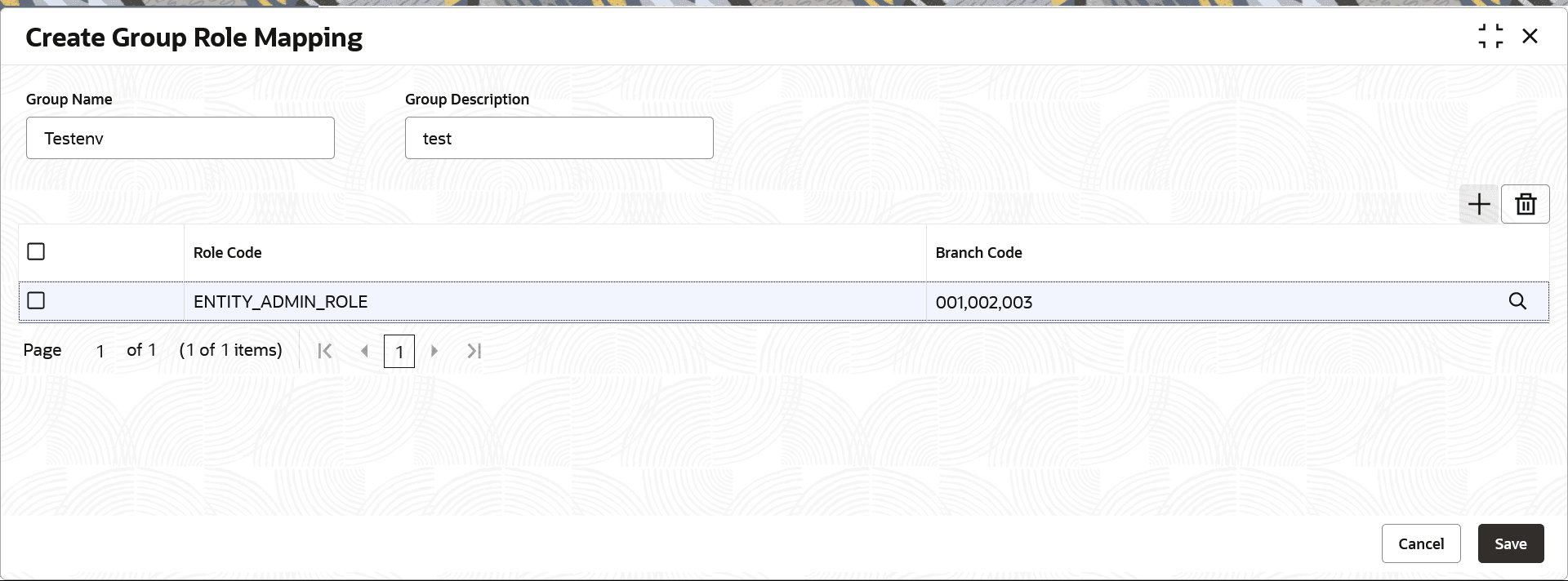

   Figure 3-1 Create Group Role Mapping





   Description of "Figure 3-1 Create Group Role Mapping"



3. Specify the fields on the Create Group Role Mapping screen.

   Note:

   The fields marked as Required are mandatory.

   For more information on fields, refer to the field description table below.

   Table 3-1 Create Group Role Mapping - Field Description

   Field	Description
   Group Name	Specify the name of the group. The field is mandatory and takes alphanumeric characters and the underscore character.
   Group Description	Specify the description for the group.
   Role Code	Select the role code that group should be associated with.
   Branch Code	Select the branch code(s) that group should be associated with.

   1. Click + to add Branch Code, and Role Code for Group Role Mapping.
      A new blank row displays.
   2. Click the search icon under Role Code column.
      The Role Code popup is displayed.

      Click Fetch and select the desired role code that group should be associated with.

   3. Click the search icon under Branch Code column.
      The Branch Selection popup screen.

      Click Search and select the desired branch code(s).

      Click > to select the branch code(s) from the list that group should be associated with.

      Click Add to add the selected branch code(s).

4. Click Save.
   The Save dialog displays.
5. Provide appropriate maker remark.
6. Click Confirm.
   The new group role mapping is created.
