This topic describes about systematic instructions on mapping of transport fact.

1. From Home screen, click Core Maintenance. Under Core Maintenance, click Credit Decision.
2. Under Credit Decision, click Maintenance. Under Maintenance, click Transport Fact Mapping, then click Create Transport Fact Mapping.
   The Create Transport Fact Mapping screen is displayed.

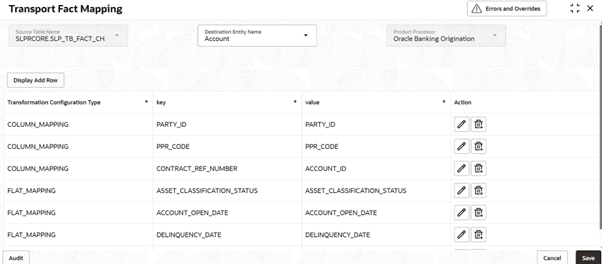

   Figure 3-164 Create Transport Fact Mapping





   Description of "Figure 3-164 Create Transport Fact Mapping"



3. Specify the fields on the Create Transport Fact Mapping screen.

   Note:

   The fields marked as Required are mandatory.

   For more information on fields, refer to the field description table.

   Table 3-134 Create Transport Fact Mapping - Field Description

   Field	Description
   Source Table Name	The name of the Transport Fact Mapping being created. Select the table name from the drop-down list.
   Entity Name	The Transport Fact Mapping ID associated with the Transport Fact Mapping. Select the entity name from the drop-down list. The available options are: Account Party
   Product Processor	Select the product processor from the drop-down list for which configuration is being created.
   Transformation Configuration Type	Select the type from the drop-down list. The available options are: COLUMN_MAPPING - The _FACTS table is expected to have a column where data from source tables column is populated directly. FLAT_MAPPING - Source tables specific column value is mapped to a facts value in destination table (_FACT table). New row is created in _FACTS table with the specific fact name and value.
   Key	Select the key from the drop-down list. Auto generated from given entity name.
   Value	Select the value from the drop-down list.
   Action	Click the icons to edit or delete the record.

4. Perform one of the following action:
   • Click Save to save the details.

     The Create Transport Fact Mapping is successfully created and can be viewed using the View Transport Fact Mapping screen.

   • Click Cancel to discard the changes and close the screen.
