6.4 Deploying RESTful WebService

Please follow the below steps to deploy RESTful WebService.
  1. Login to Web Logic application server enterprise manager (e.g.: http://hostname:port/em)

    Figure 6-14 Deploy RESTful WebService 1


    Description of Figure 6-14 follows
    Description of "Figure 6-14 Deploy RESTful WebService 1"

  2. Enter valid login credentials.
    The following window is displayed.

    Figure 6-15 Deploy RESTful WebService 2


    Description of Figure 6-15 follows
    Description of "Figure 6-15 Deploy RESTful WebService 2"

  3. Select Lock & Edit option in the lock drop-down list available in the header.
  4. Click Deployment in the left panel. Select Lock & Editoption in the lock drop-down list available in the header.
    The following window is displayed.

    Figure 6-16 Deploy RESTful WebService 3


    Description of Figure 6-16 follows
    Description of "Figure 6-16 Deploy RESTful WebService 3"

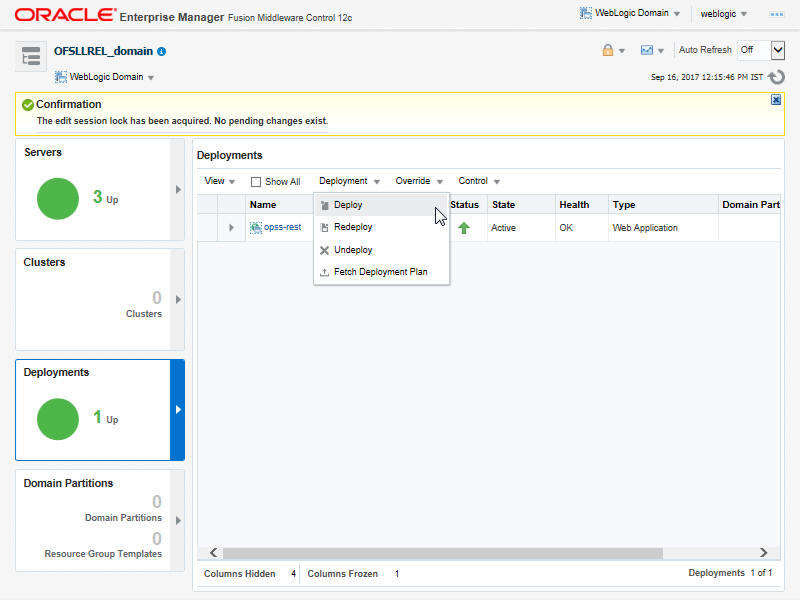

  5. Select Deploy from the Deployment drop-down list.
    The following window is displayed.

    Figure 6-17 Deploy RESTful WebService 4


    Description of Figure 6-17 follows
    Description of "Figure 6-17 Deploy RESTful WebService 4"

  6. The following window is displayed.

    Figure 6-18 Deploy RESTful WebService 5


    Description of Figure 6-18 follows
    Description of "Figure 6-18 Deploy RESTful WebService 5 "

  7. Browse to the folder containing the WebService. Eg: C:/OfsllRestEAR.ear
  8. Click Next.
    The following window is displayed.

    Figure 6-19 Deploy RESTful WebService 6


    Description of Figure 6-19 follows
    Description of "Figure 6-19 Deploy RESTful WebService 6"

  9. Select the server on which the WebService needs to be deployed.
  10. Click Next.
    The following window is displayed.

    Figure 6-20 Deploy RESTful WebService 7


    Description of Figure 6-20 follows
    Description of "Figure 6-20 Deploy RESTful WebService 7"

  11. Select the option Install and start application (servicing all requests).
  12. Check the context root and click Next.
    The following window is displayed.

    Figure 6-21 Deploy RESTful WebService 8


    Description of Figure 6-21 follows
    Description of "Figure 6-21 Deploy RESTful WebService 8"

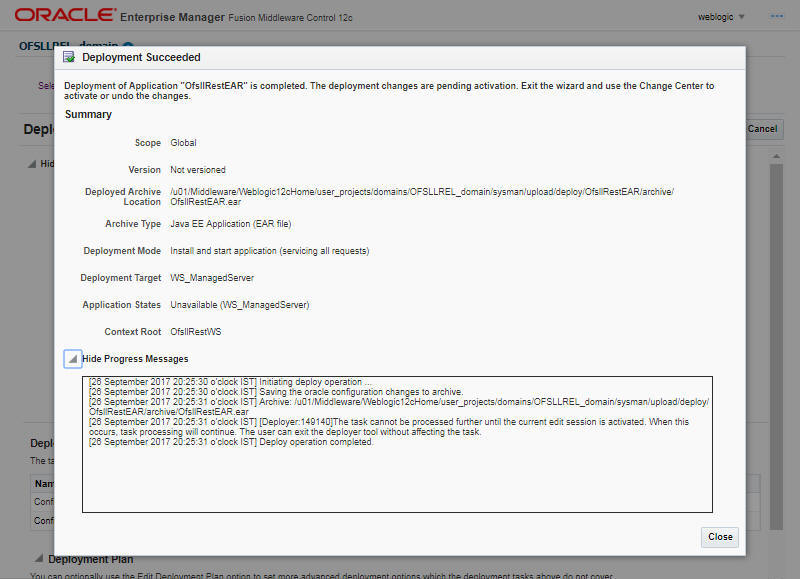

  13. Click Deploy . On successful deployment, the following window is displayed.

    Figure 6-22 Deploy RESTful WebService 9


    Description of Figure 6-22 follows
    Description of "Figure 6-22 Deploy RESTful WebService 9"

  14. Click Close. Post deployment, you need to activate the changes by selecting Active Changes option from Edit Session drop-down list as indicated in step 4 above.
The next step is to Identifying the RESTful Webservice URL.

Parent topic: Configure RESTful WebService
