2.6 App configuration for enabling chatbot

The below section details the process of app configuration for enabling chatbot to appear on OFSLL home page.
  1. Enabling BOT and adding parameters:
    • Channel ID
    • URI
    • Enabled – Yes / No
  2. Enable the FLS Access Key - FLL.CMN.UIX.TXNCHATBOT.BUTTON as indicated in the Access Setup screen.

    Figure 2-25 Enable the FLS Access Key


    Description of Figure 2-25 follows
    Description of "Figure 2-25 Enable the FLS Access Key"

  3. Search for System parameter in the box below.

    Figure 2-26 System parameter


    Description of Figure 2-26 follows
    Description of "Figure 2-26 System parameter"

  4. Enter the Channel id, click save and return.
  5. Enter the URI , click save and return.
  6. Enable Transaction bot.

    Figure 2-29 Enable Transaction bot


    Description of Figure 2-29 follows
    Description of "Figure 2-29 Enable Transaction bot"

    The below code needs to be implemented in the chatbot.js file as shown below:

    Figure 2-30 Code implementation


    Description of Figure 2-30 follows
    Description of "Figure 2-30 Code implementation"

    Ensure that no changes are done to the following js code:

    function onLoginPageLoad(event) {
var source = event.getSource();
AdfCustomEvent.queue(source, "LoginChatbotEvent",
{
'someArg' : 'true'
},
true);
}
function onHomePageLoad(evt) {
var eventSource = evt.getSource();
AdfCustomEvent.queue(eventSource, "HomeChatbotEvent",
{
'someArg' : 'true'
},
true);
}
function initSdk(name, uri, channel) {
var chatWidgetSettings = {
initUserHiddenMessage : 'Hi', openChatOnLoad : false, URI : uri, channelId : channel,
font: '12px "Helvetica Neue", Helvetica, Arial, sans-serif',
locale: 'en-US',
enableClearMessage: true,
enableAutocomplete:false,
setSize:('400px' ,'786px'),
showConnectionStatus:true,
showTypingIndicator:true,
displayActionsAsPills:true,
enableSpeech:true,
enableAttachment:false,
enableBotAudioResponse: true,
skillVoices: [{
lang: 'en-US',
name: 'Samantha'
}, {
lang: 'en-US',
name: 'Alex'
}, {
lang: 'en-UK'
}]
};
if (!name) {
name = 'Bots';
}
setTimeout(function () {
const Bots = new WebSDK(chatWidgetSettings);// Initiate library with configuration
Bots.connect()// Connect to server
.then(function () {
})
window[name] = Bots;
});
}
  7. Web-sdk.js needs to be added from the << OFSLL Installed Directory >>/ /web_interface/ofsllbot/WebApp/scripts.
    The BOT after login is as shown below:

    Figure 2-31 BOT logged in


    Description of Figure 2-31 follows
    Description of "Figure 2-31 BOT logged in"

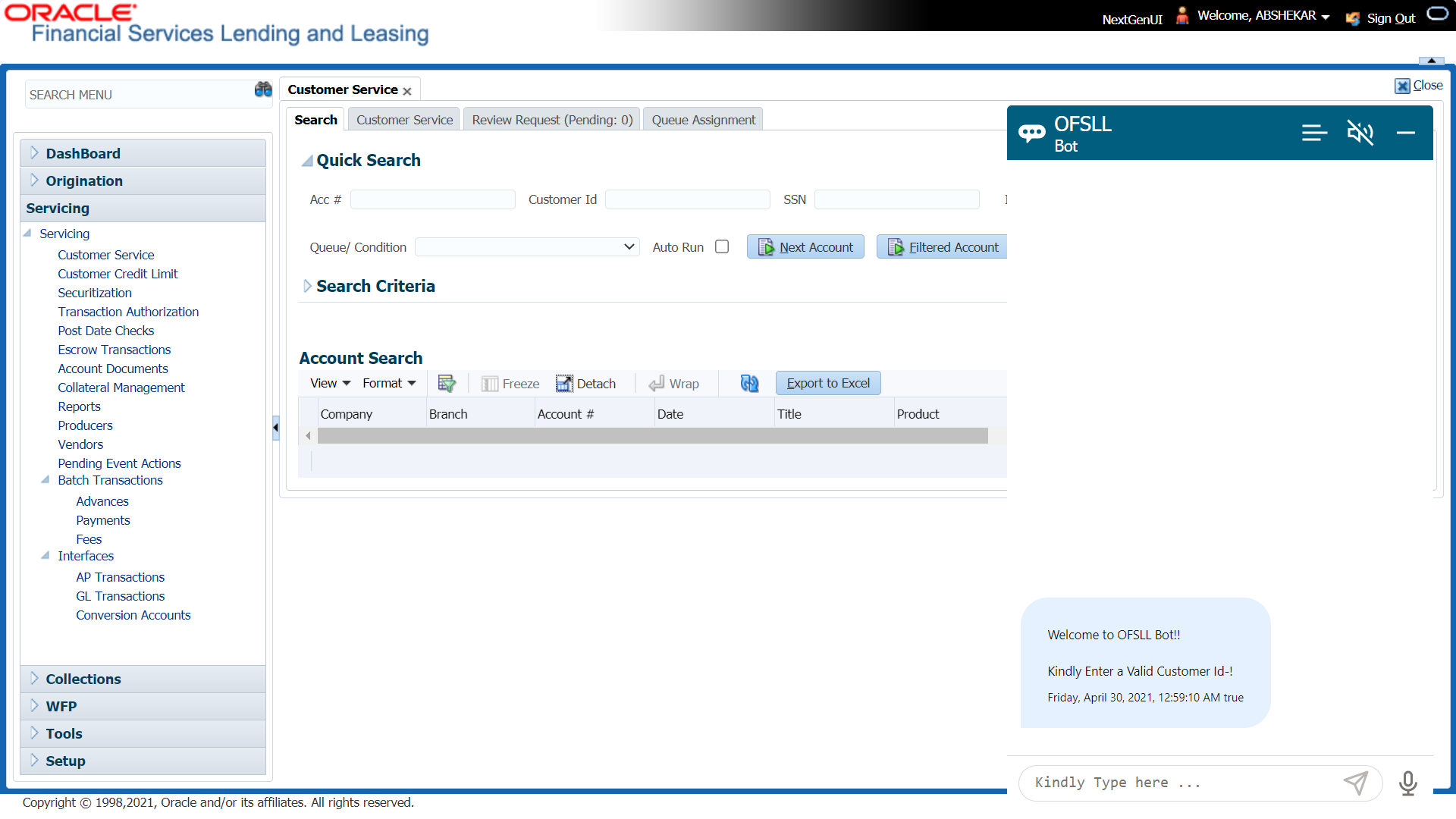

    On clicking bot icon, the interface is as displayed:

    Figure 2-32 BOT interface


    Description of Figure 2-32 follows
    Description of "Figure 2-32 BOT interface"

Parent topic: Developer Guide for BOT Customization
