8.3.2 Create JMS Server for Outbound Queue

Follow the below steps to create JMS server for outbound queue.
  1. Login to WebLogic Server 12c console (http://hostname:port/console).
    The following screen is displayed.

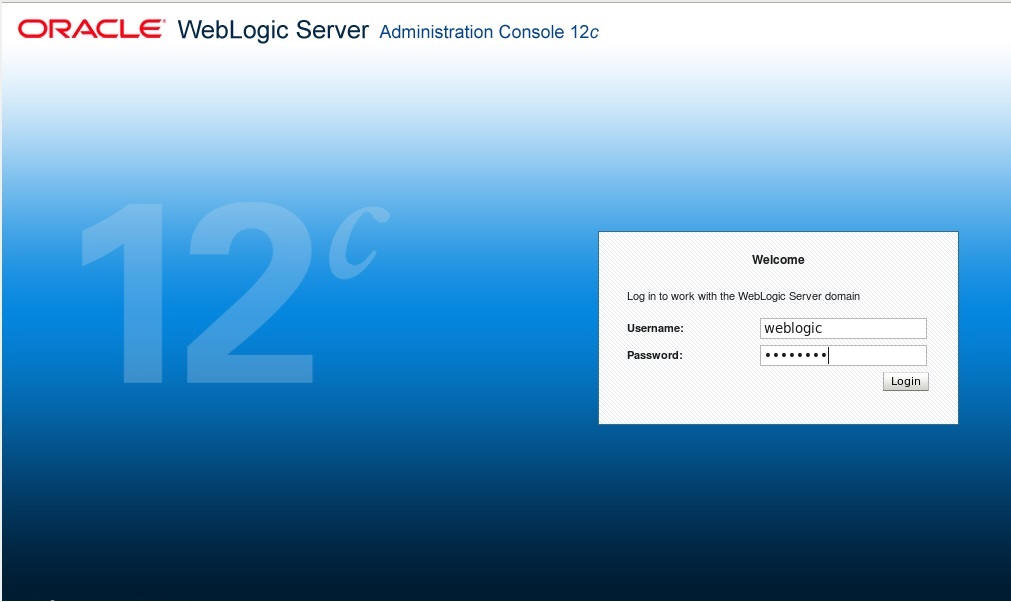

    Figure 8-50 JMS Server for Outbound Queue 1


    Description of Figure 8-50 follows
    Description of "Figure 8-50 JMS Server for Outbound Queue 1"

  2. Specify the Weblogic administrator user name and password and click Log In.
    The Oracle Weblogic home page is displayed.

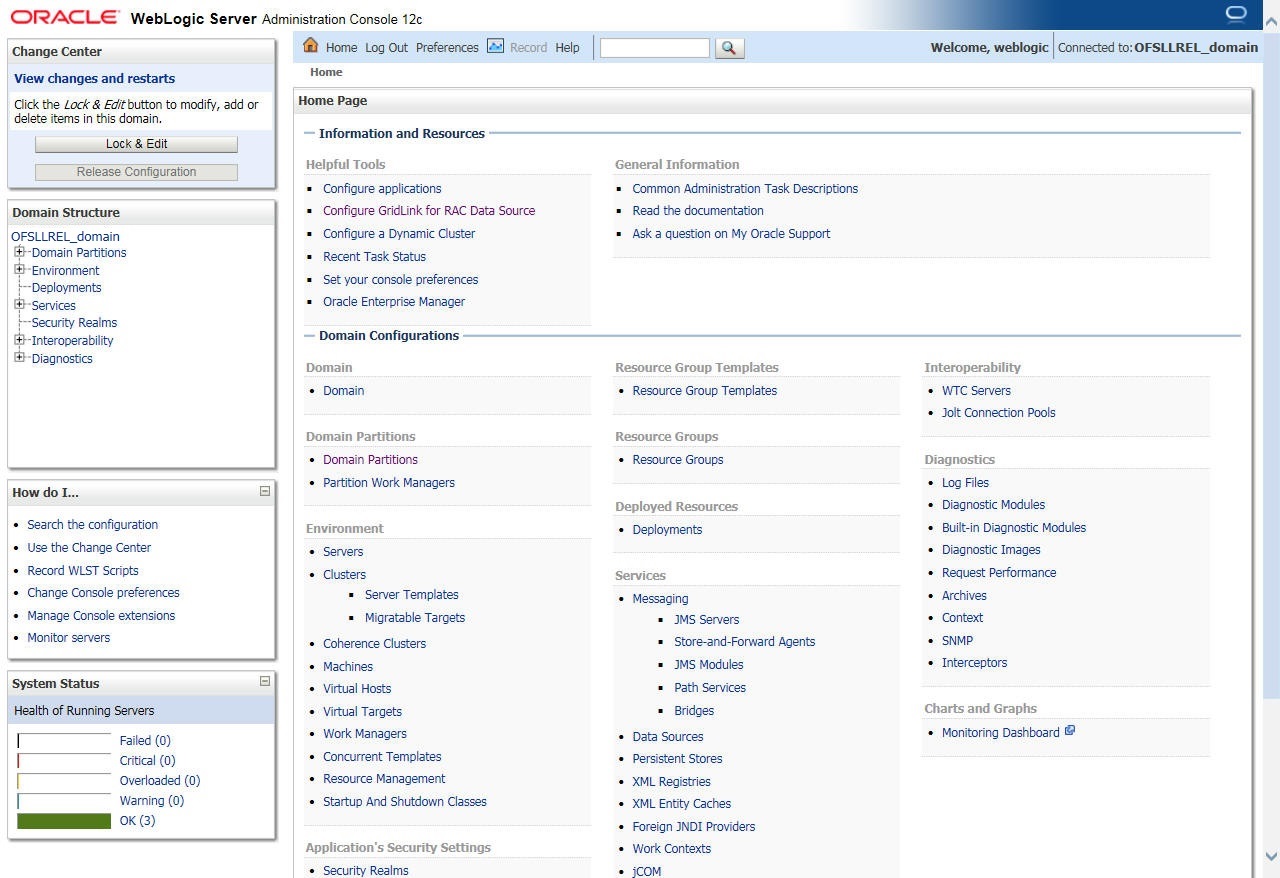

    Figure 8-51 JMS Server for Outbound Queue 2


    Description of Figure 8-51 follows
    Description of "Figure 8-51 JMS Server for Outbound Queue 2"

  3. Click Domain Name > Services > Messaging > JMS Server.
  4. In the main window, click Lock & Edit.
    The following window is displayed.

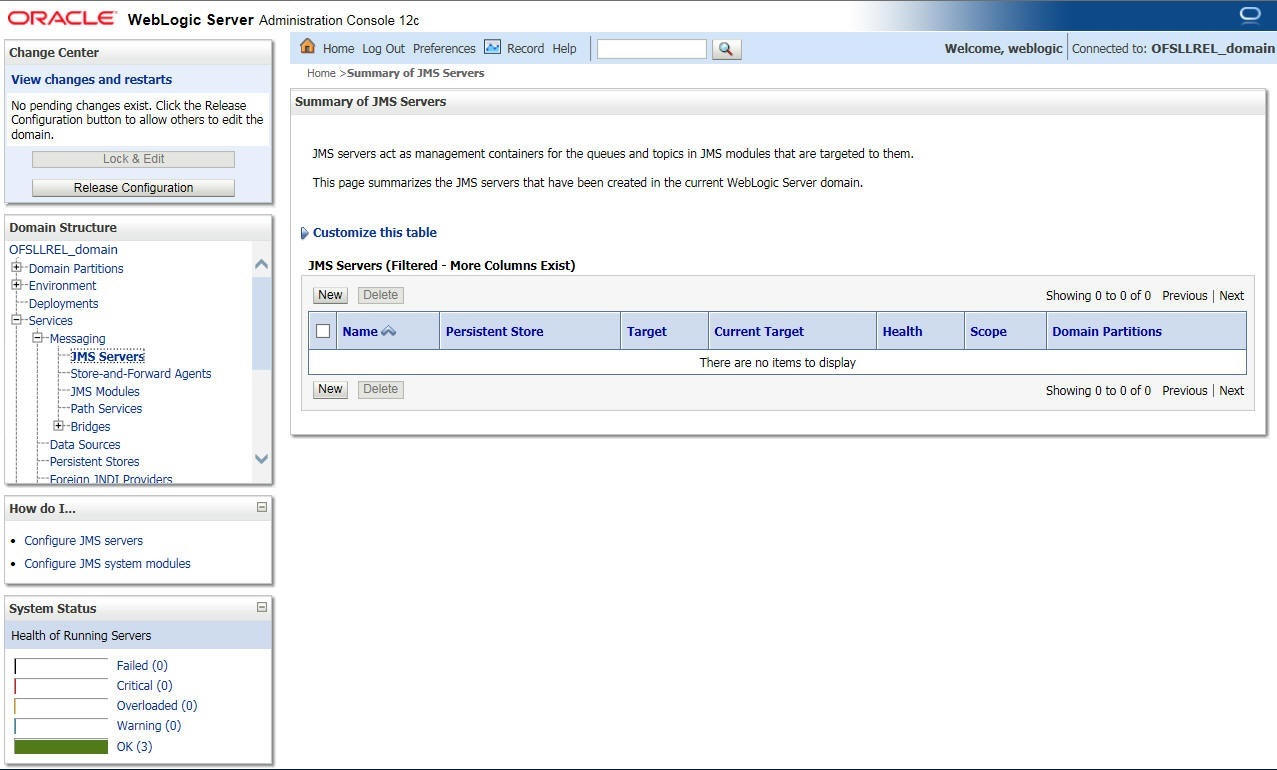

    Figure 8-52 JMS Server for Outbound Queue 3


    Description of Figure 8-52 follows
    Description of "Figure 8-52 JMS Server for Outbound Queue 3"

  5. Click New.
    The following window is displayed.

    Figure 8-53 JMS Server for Outbound Queue 4


    Description of Figure 8-53 follows
    Description of "Figure 8-53 JMS Server for Outbound Queue 4"

  6. Specify the JMS Server Name as OfsllOutboundServer. Click Next.
    The following window is displayed.

    Figure 8-54 JMS Server for Outbound Queue 5


    Description of Figure 8-54 follows
    Description of "Figure 8-54 JMS Server for Outbound Queue 5"

  7. Select OfsllStore as the Persistent Store type. Click Next.
    The following window is displayed.

    Figure 8-55 JMS Server for Outbound Queue 6


    Description of Figure 8-55 follows
    Description of "Figure 8-55 JMS Server for Outbound Queue 6"

  8. Select the target managed server and click Finish.
  9. Click Activate Changes under Change Center section in LHS menu. Once done, the following window is displayed.

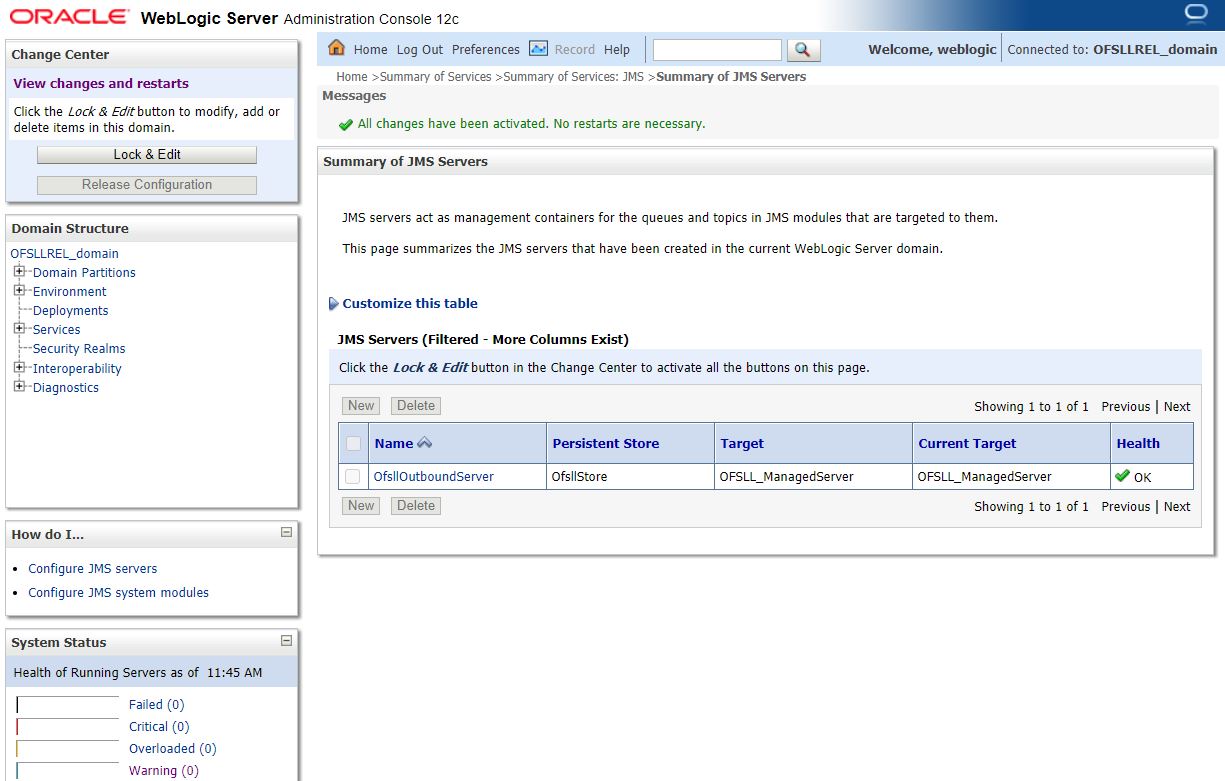

    Figure 8-56 JMS Server for Outbound Queue 7


    Description of Figure 8-56 follows
    Description of "Figure 8-56 JMS Server for Outbound Queue 7"

  10. Once done the following window is displayed.

    Figure 8-57 JMS Server for Outbound Queue 8


    Description of Figure 8-57 follows
    Description of "Figure 8-57 JMS Server for Outbound Queue 8"
