This topic provides systematic instruction for plato services deployment.

1. Create a managed server for Plato-Config service and set the service startup parameter.
2. Deploy the other Plato services in another managed server. (Both Plato services and Plato config services should not be deployed in the same managed server).

   Follow the below steps to deploy the other Plato services:

   1. Download and install Web Logic Remote Console.
   2. Configure Web Logic Remote Console with Web Logic Host and Port, Username and Password.
   3. Select servers in the “Environment” section.
   4. Choose Runtime Data – Monitoring Tree view in right pane.
   5. Select the managed server (Managed server where the Plato Config Service is deployed).
   6. Start the selected managed server by clicking on “Start” option.

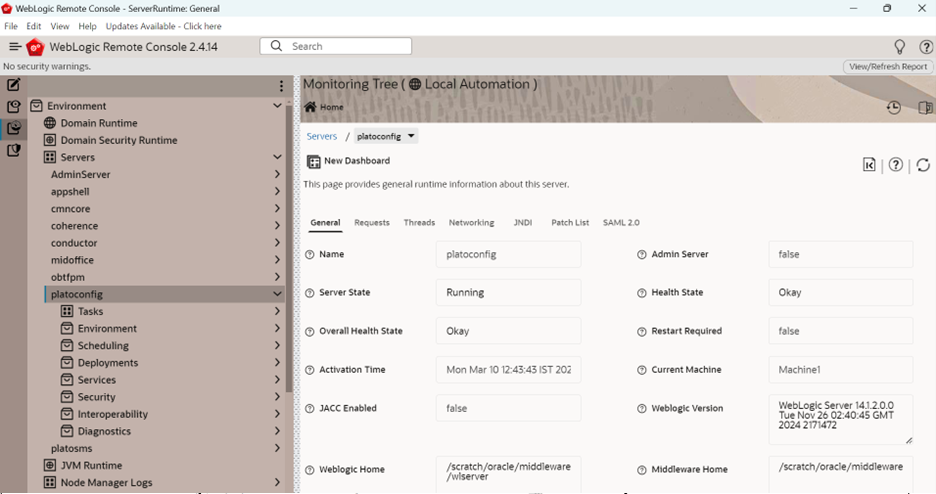

   Figure 1-1 Web Logic Remote Console





   Description of "Figure 1-1 Web Logic Remote Console"

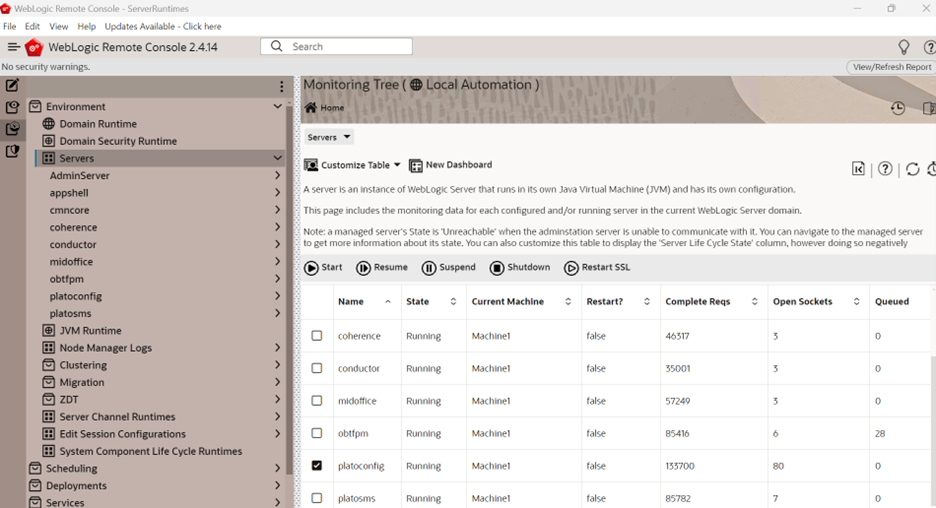

   Figure 1-2 Web Logic Remote Console - Servers





   Description of "Figure 1-2 Web Logic Remote Console - Servers"
