4.1 Approot Object Conversion: Shared Application

This topic provides systematic instructions about approot object conversion - shared Application.

Shared Application

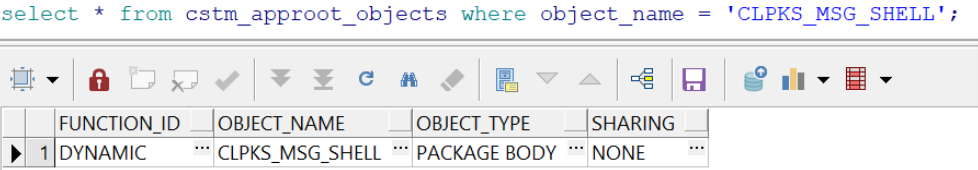

Kindly make sure all dynamic package exceptions should have an entry in “CSTM_APPROOT_OBJECTS” table.

Example: Only package body will be considered as exception and package will be converted to METADATA link.
Shared Application

For multi-tenant deployment setup using the installer with deployment model as ‘Shared Application’, follow the steps given below.

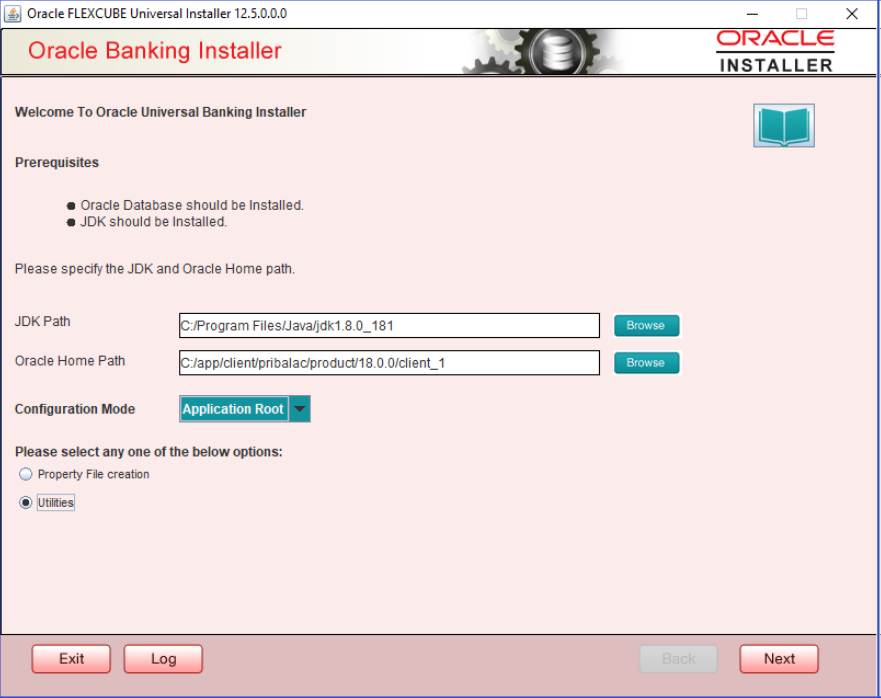

  1. Double-click ‘FCUBSInstaller.bat’ batch file to launch Oracle FLEXCUBE Universal Installer. The following screen is displayed. Select Utilities option, configuration mode as “Application Root” and click ‘Next’ button.
    Description of 4.1-application-root_prerequisites.png follows
    Description of the illustration 4.1-application-root_prerequisites.png

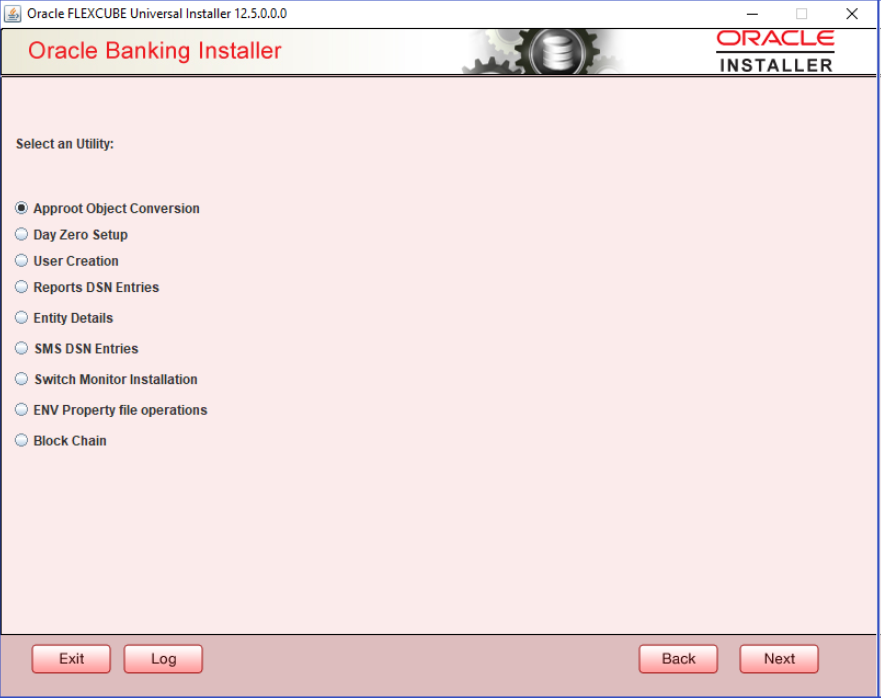

  2. Select ‘Approot Object Conversion” in Utility Screen and click Next as shown below:
    Description of 4.2_approot-object-conversion.png follows
    Description of the illustration 4.2_approot-object-conversion.png

  3. In the Approot Object Conversion screen, Enter Application Name and the Application root schema details where the conversion has to be applied and click on ‘Test Connection’.
  4. Once the connection is successful, ‘Finish’ button will be enabled.
  5. User has to select the option ‘Shared Application’ and click on the ‘Finish’ button to complete object conversion.

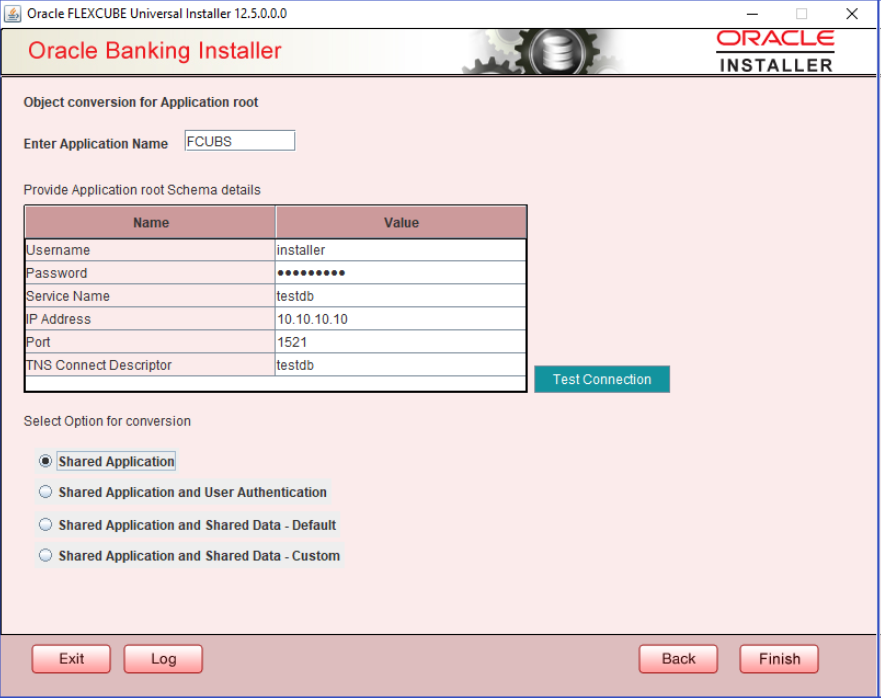

    Description of 4.1_shared-application.png follows
    Description of the illustration 4.1_shared-application.png

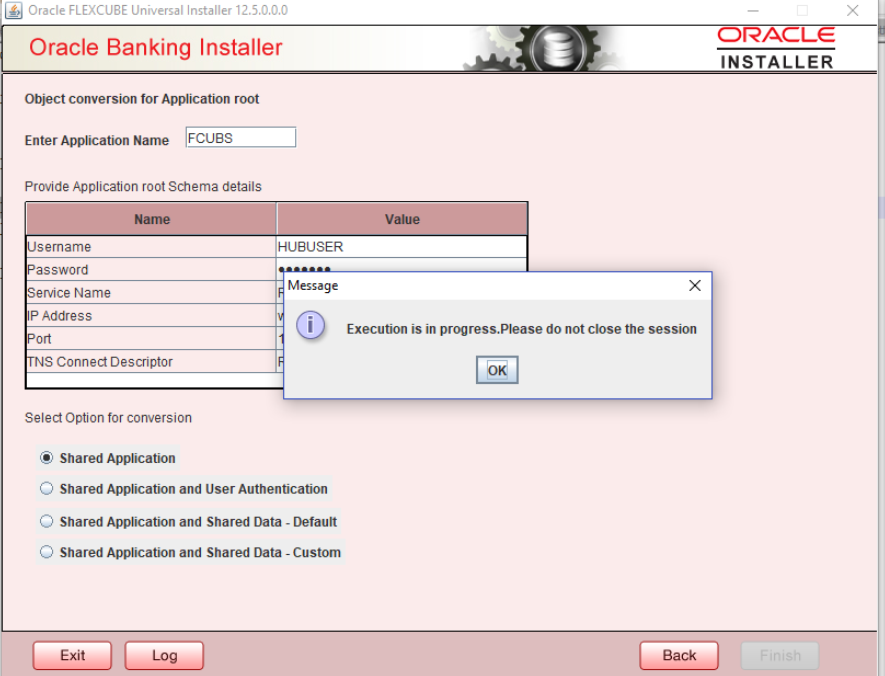

  6. Execution will take few minutes and post completion, a dialog box displays ‘Compilation Success’ message in the front end.
    Description of 4.1_compilation-success_message.png follows
    Description of the illustration 4.1_compilation-success_message.png

  7. This completes the setup and user can click on Exit to close the session.

Parent topic: EAR Creation and Deployment
