2.4 Shared Application with Shared Data - Custom

This would be using Application Container in 19C, Single front end application and an URL. Sharing of Entities from Approot to individual PDBs.

  • Application would be deployed in an Application Container.
  • Source code at Approot level shared with PDBs.
  • Data Model at Approot level shared with PDBs.
  • Single Frontend Application and Single URL.
  • Sharing of Entities/data like.
    • User Authentication, SMS Roles
    • Core Entities like Country, Currency, MIS Classes, UDFs
    • Chart of Account, Product, Account Class
  • User can opt-out the entities which are not required to be the candidates of approot and move to PDB.
Sample of components deployed in Shared Application and Shared Data model is given below:

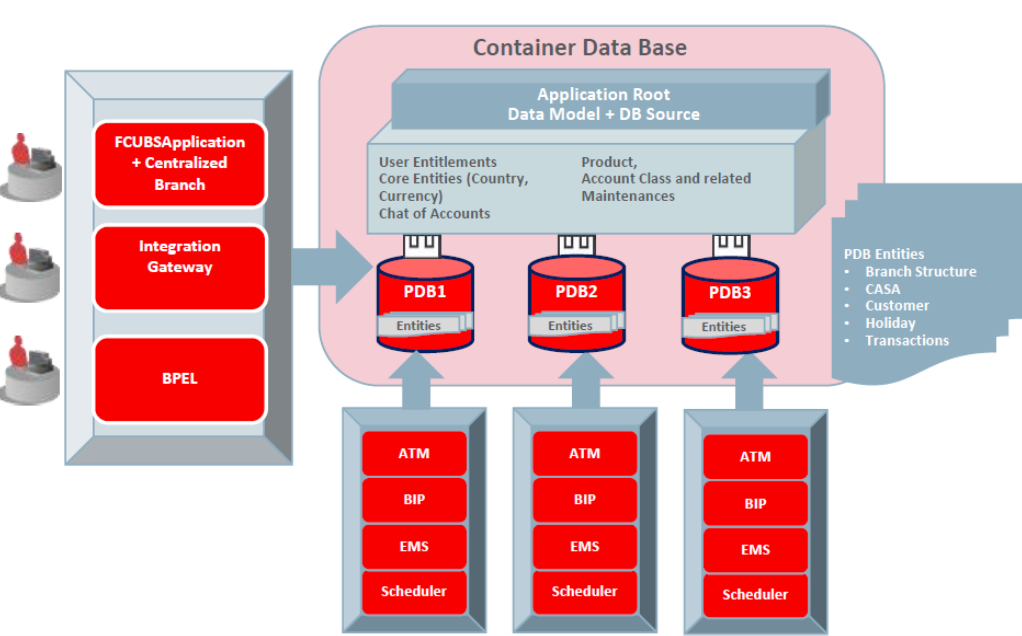

Figure 2-1 Component Deployment Architecture


Description of Figure 2-1 follows
Description of "Figure 2-1 Component Deployment Architecture"

Application and Gateway will be common and single URL will be available for the application. ATM, BIP, EMS, Scheduler has to be configured separately for each PDBs.
