7.6.2 Work Manager Creation

  1. Login into weblogic console, navigate to Domain  Environment  WorkManager Create new workmanager with the name GWMDBWM(as mentioned in property file) by following below steps:
    Description of 8.6.2_workmanager.png follows
    Description of the illustration 8.6.2_workmanager.png


    Description of 8.6.2_gwmdbwm.png follows
    Description of the illustration 8.6.2_gwmdbwm.png


    Description of 8.6.2_cluster-app.png follows
    Description of the illustration 8.6.2_cluster-app.png


    Description of 8.6.2_s1_work-managers_message.png follows
    Description of the illustration 8.6.2_s1_work-managers_message.png

  2. Create new Max Thread Constraint and in the Count field give the desired thread count.
    Description of 8.6.2_s2_max-thread-constraint.png follows
    Description of the illustration 8.6.2_s2_max-thread-constraint.png


    Description of 8.6.2_s2_max-thread-constraint-2.png follows
    Description of the illustration 8.6.2_s2_max-thread-constraint-2.png


    Description of 8.6.2_s2_max-thread-constraint-3.png follows
    Description of the illustration 8.6.2_s2_max-thread-constraint-3.png


    Description of 8.6.2_s2_max-thread-constraint-4.png follows
    Description of the illustration 8.6.2_s2_max-thread-constraint-4.png

  3. Modify the newly created workmanager and assign the Maximum Thread Constraint that is created in above step.
    Description of 8.6.2_maximum-thread-constraint_assign.png follows
    Description of the illustration 8.6.2_maximum-thread-constraint_assign.png

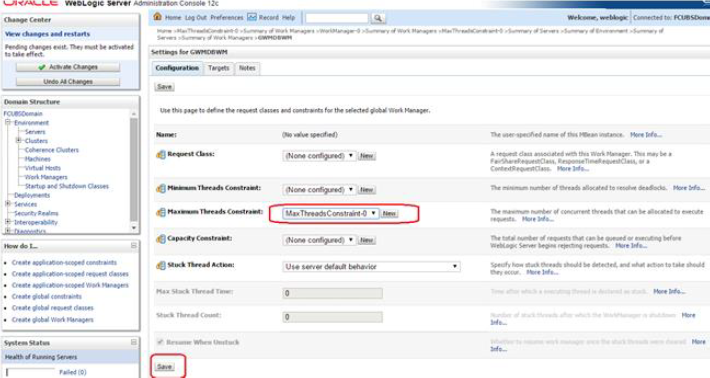

    Description of 8.6.2_s3_save.png follows
    Description of the illustration 8.6.2_s3_save.png

  4. Restart managed servers and notice the change in the number of consumers for the QUEUE’s.
