3.3.1 Queue Creation

  1. In JMS_MODULE Click on New.
    Description of 4.3.1_s1_queue-creation_new.png follows
    Description of the illustration 4.3.1_s1_queue-creation_new.png

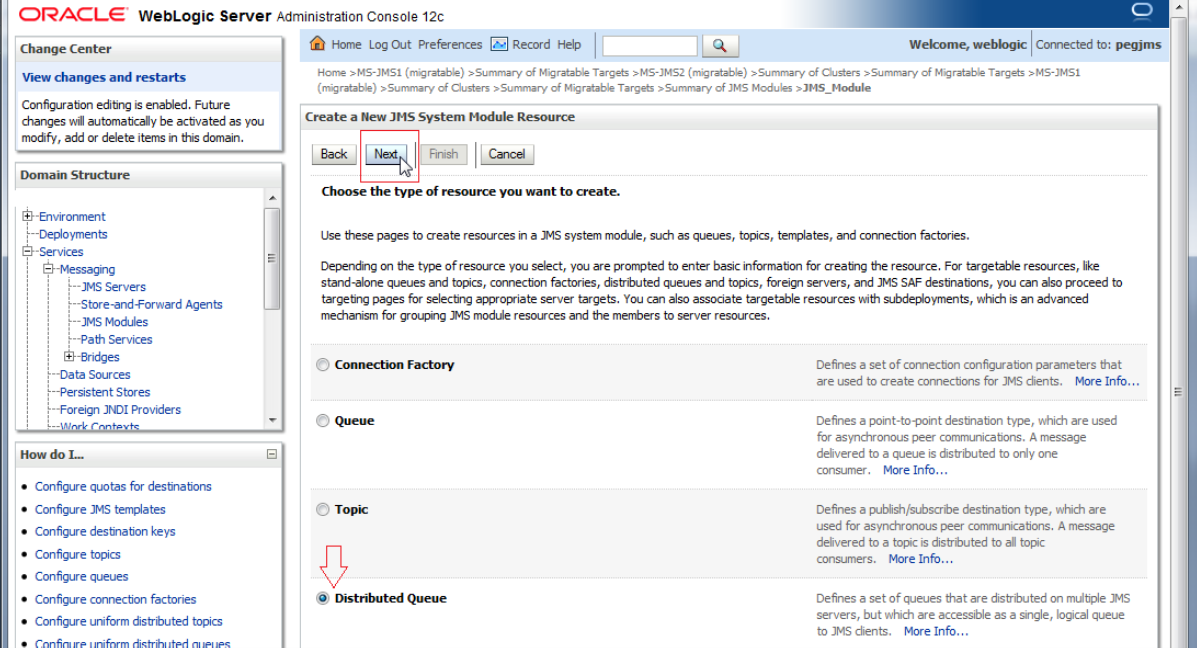

  2. Select Distributed Queue and Click on Next.
    Description of 4.3_s2_distributed-queue.png follows
    Description of the illustration 4.3_s2_distributed-queue.png

  3. Enter the queue name and Click on Next.
    Description of create-new-jms-system-modules-resource-jms-destination-properties.png follows
    Description of the illustration create-new-jms-system-modules-resource-jms-destination-properties.png

  4. Click on Advance Targeting.
    Description of 4.3.2_s4_advance-targeting.png follows
    Description of the illustration 4.3.2_s4_advance-targeting.png

  5. Select Subdeployement as JMS_SUB and Click on Finish.
    Description of 4.3_s5_jms_sub_finish.png follows
    Description of the illustration 4.3_s5_jms_sub_finish.png

  6. MDB_QUEUE is created
    Description of 4.3_s6_mdb_queue.png follows
    Description of the illustration 4.3_s6_mdb_queue.png

  7. Similarly Create MDB_QUEUE_RESPONSE and MDB_QUEUE_DLQ
    Description of 4.3_s7_mdb_queue_response.png follows
    Description of the illustration 4.3_s7_mdb_queue_response.png
