2.2.6 Outbound RTP Message Browser

  1. On Homepage, specify PUSOTBRW in the text box, and click next arrow.
    Outbound US RTP Message Browser screen is displayed.

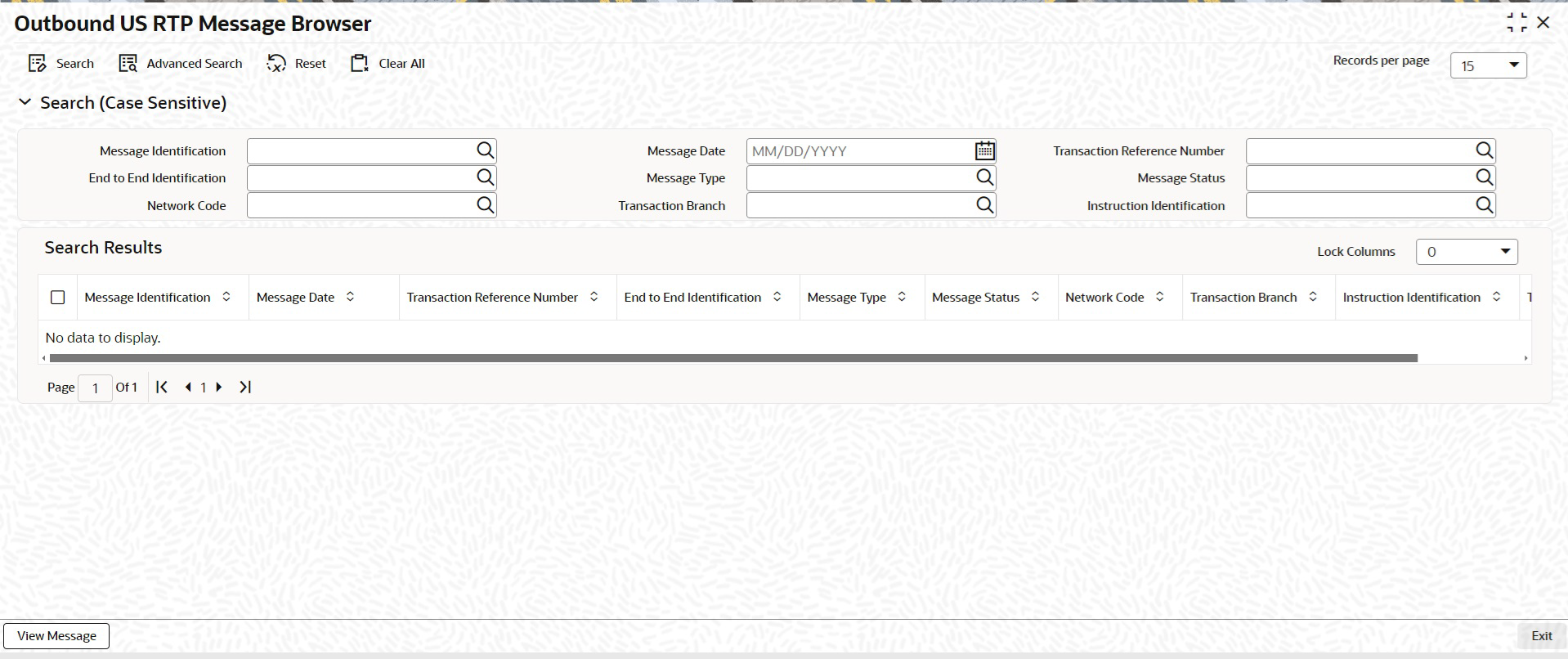

    Figure 2-29 Outbound US RTP Message Browser

    Description of Figure 2-29 follows
    Description of "Figure 2-29 Outbound US RTP Message Browser"
  2. Search using one or more of the following parameters:
    • Message Identification
    • Message Date
    • Transaction Reference Number
    • End to End Identification
    • Message Type
    • Message Status
    • Network Code
    • Transaction Branch
    • Instruction Identification
  3. Select a record and click on ‘View Message’ to view the message details. The following messages can be viewed from this browser:
    • pacs.008 -outbound payment message
    • pacs.008-retry message for time out cases
    • pacs.002-Accept/reject of inbound payments
    • camt.035-Payment Acknowledgment (generated for inbound payments with status ACWP)
  4. Once you specified the parameters, click the Search button.
    System displays the records that match the search criteria.
  5. Double click a record after selecting a record to view the detailed screen.

Parent topic: Outbound US RTP Transactions
