2.3.6 Inbound RTP Message Browser

  1. On Homepage, specify PUSINBRW in the text box, and click next arrow.
    Inbound US Faster Payments Message Browser screen is displayed.

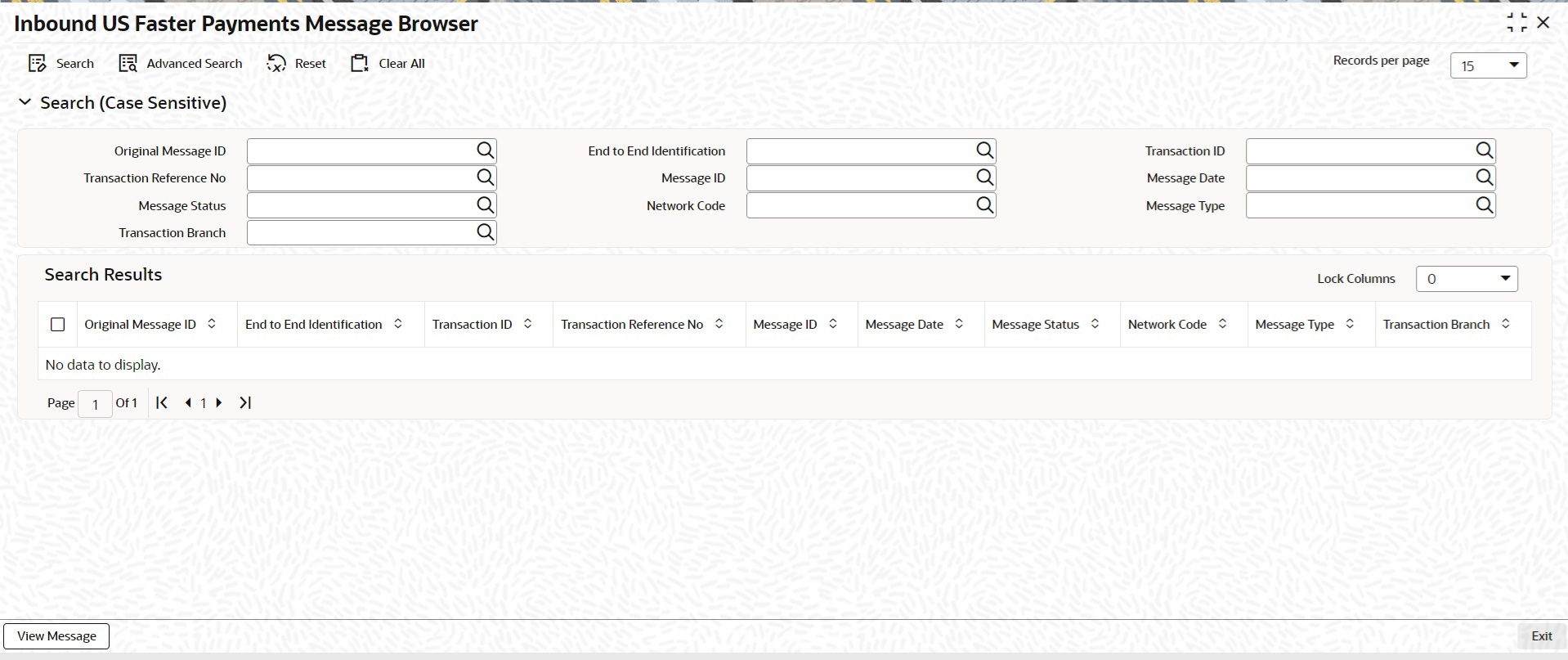

    Figure 2-37 Inbound US Faster Payments Message Browser

    Description of Figure 2-37 follows
    Description of "Figure 2-37 Inbound US Faster Payments Message Browser"
  2. Search using one or more of the following parameters:
    • Original Message ID
    • End to End ID
    • Transaction ID
    • Transaction Reference Number
    • Message ID
    • Message Date
    • Message Status
    • Network Code
    • Message Type
    • Transaction Branch
  3. Select a record and click on ‘View Message’ to view the message details. The following messages can be viewed from this browser:
    • pacs.008 -Inbound payment message
    • pacs.008-inbound received for retry time out cases
    • pacs.002-Accept/reject of outbound payments from Network or Beneficiary bank
    • pacs.002-Accept/reject of inbound payments from Network
    • camt.056-Cancel of inbound payment from network
    • camt.035-Payment acknowledgment
  4. Once you specified the parameters, click the Search button.
    System displays the records that match the search criteria.
  5. Double click a record after selecting a record to view the detailed screen.

Parent topic: Inbound US RTP Payments
