2.19.1 ISO 2-Char Country Mapping Detailed

This maintenance maps the 3-character country code value defined in the existing Country Code Maintenance (STDCNMNT) to the 2-character ISO country code from the factoryshipped table.

  1. On Homepage, specify PMDCNMNT in the text box, and click next arrow.
    ISO 2-Char Country Mapping Detailed screen is displayed.

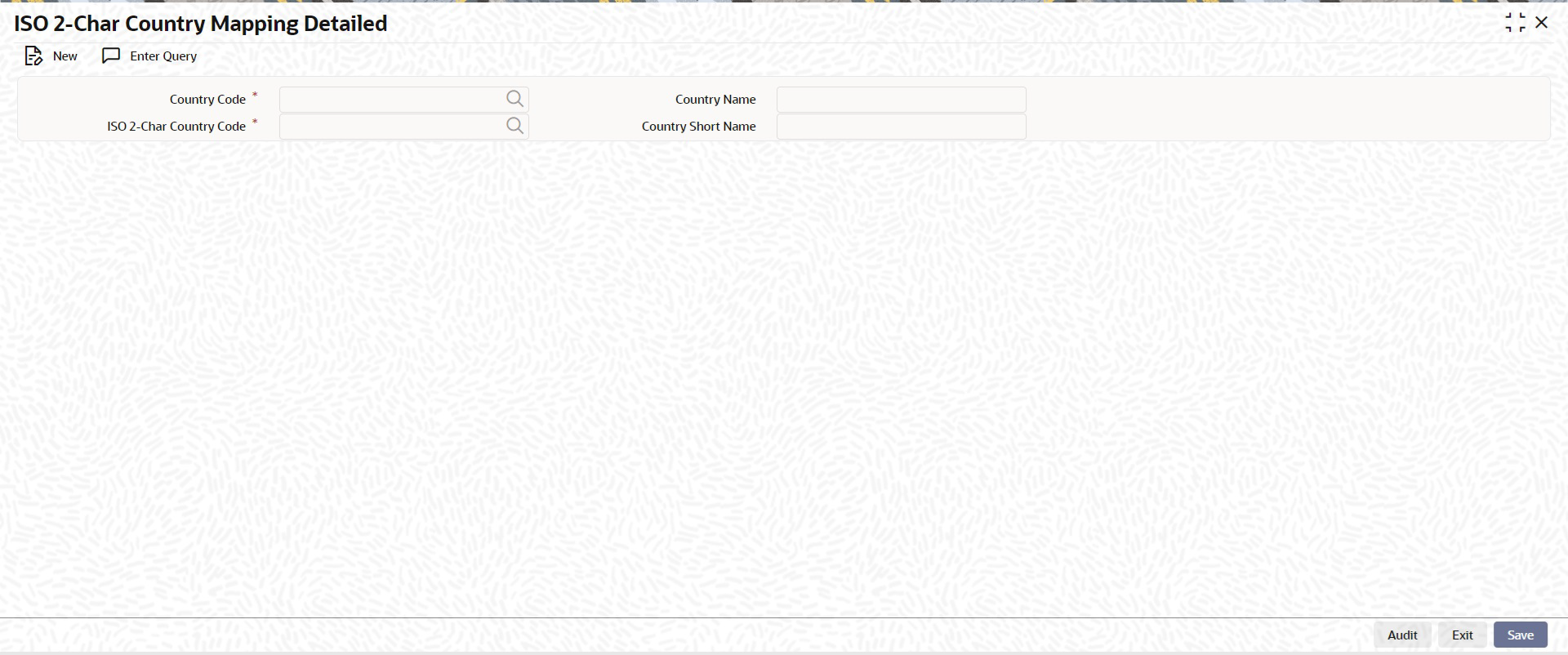

    Figure 2-339 ISO 2-Char Country Mapping Detailed


    Description of Figure 2-339 follows
    Description of "Figure 2-339 ISO 2-Char Country Mapping Detailed"

  2. Click New button on the Application toolbar.
  3. On ISO 2-Char Country Mapping Detailed screen, specify the fields.

    Table 2-177 ISO 2-Char Country Mapping Detailed - Field Description

    Field Description
    Country Code Specify the country code from list of values. It lists the Open / Authorized country codes from Country Code Maintenance (STDCNMNT) screen.
    ISO 2-Char Country Code Specify the country code from list of values. It lists the ISO 2-Char Country codes from the factory shipped table.
    Country Name System defaults the Country Name from the Country Code Maintenance (STDCNMNT) screen for the selected Country Code.
    Country Short Name System defaults the Country Short Name from the factory-shipped table for the selected 2-Char country code.

Parent topic: Country Code Mapping
