4.3.2 NEFT Inbound Message Browser

The NEFT Inbound Message Browser screen allows user to view all the inbound NEFT messages such as Incoming pacs.008.001.09, N03, camt.054.001.08, N09, N10, and camt.059.001.06 generated.

  1. On Homepage, specify PTSINBRW in the text box, and click next arrow.
    NEFT Inbound Message Browser screen is displayed.

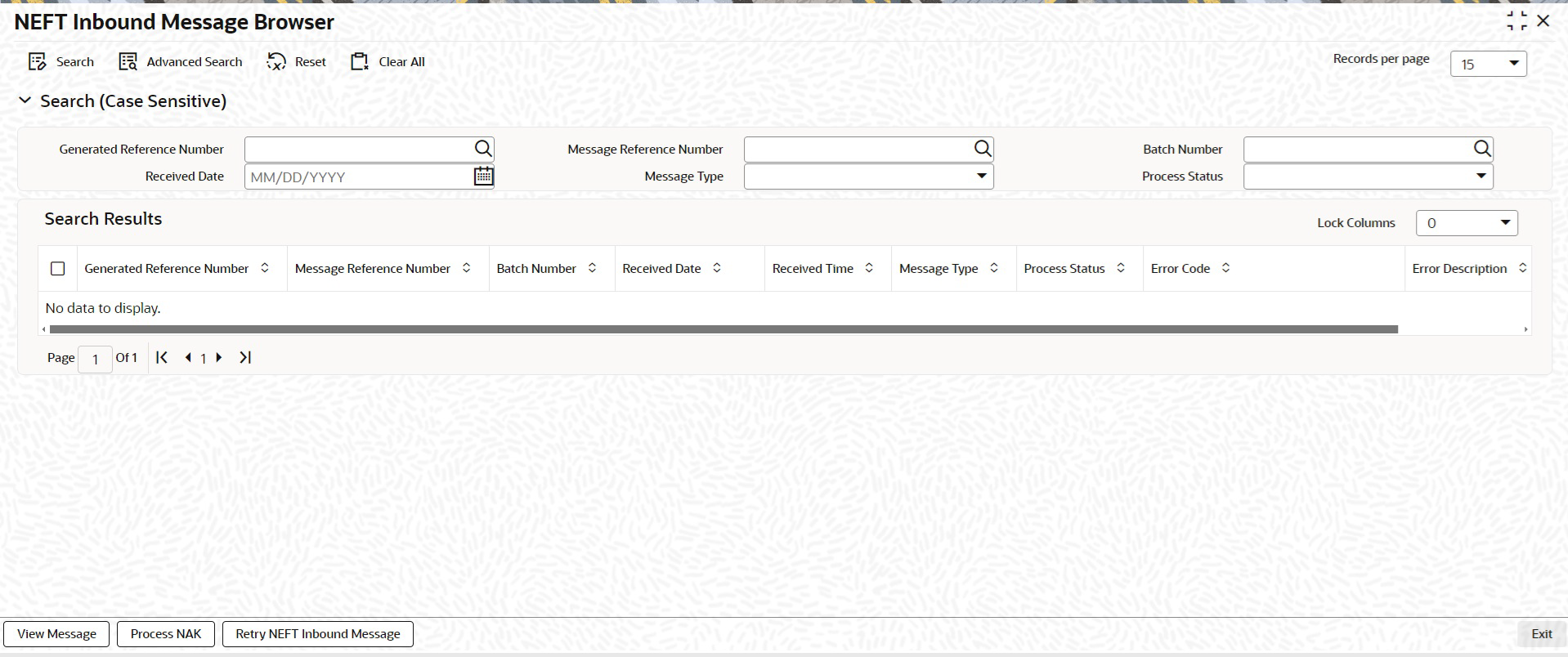

    Figure 4-22 NEFT Inbound Message Browser

    Description of Figure 4-22 follows
    Description of "Figure 4-22 NEFT Inbound Message Browser"
  2. Search using one or more of the following parameters:
    • Generated Reference Number
    • Message Reference Number
    • Batch Number
    • Received Date
    • Message Type
    • Process Status
  3. Once you specified the parameters, click the Search button.
    System displays the records that match the search criteria.

    Note:

    Inbound SFMS ACK/NAK Messages, can be viewed against respective Outgoing pacs.008.001.09 dispatch in NEFT outbound browser (PTSOUTBR).

  4. User can perform following actions:
    Action Description
    View Message All the messages - Incoming pacs.008.001.09, N03, camt.054.001.08, N09 and camt.059.001.06 are listed in this Inbound browser screen. Select a record and click on ‘View Message’ button to view the message details.
    Process NAK Click the 'Process NAK' option to launch N03 Transaction Summary View screen (PTSN03TX). Process NAK option helps to validate the negative acknowledgment and perform appropriate action like reverse or regenerate the transaction.
    Retry NEFT Inbound Message

    On clicking Retry button, NEFT Upload Retry sub screen is displayed.

    On Retry action, system re-processes upload of error records. On completion of the upload, Process status is marked as 'Processed'.

Parent topic: NEFT Message Browser
