15.3.1.1 RTGS ISO Report Request Transaction Input Summary View

  1. On Homepage, specify PSSOGWRR in the text box, and click next arrow.
    RTGS ISO Report Request Transaction Input Summary View screen is displayed.

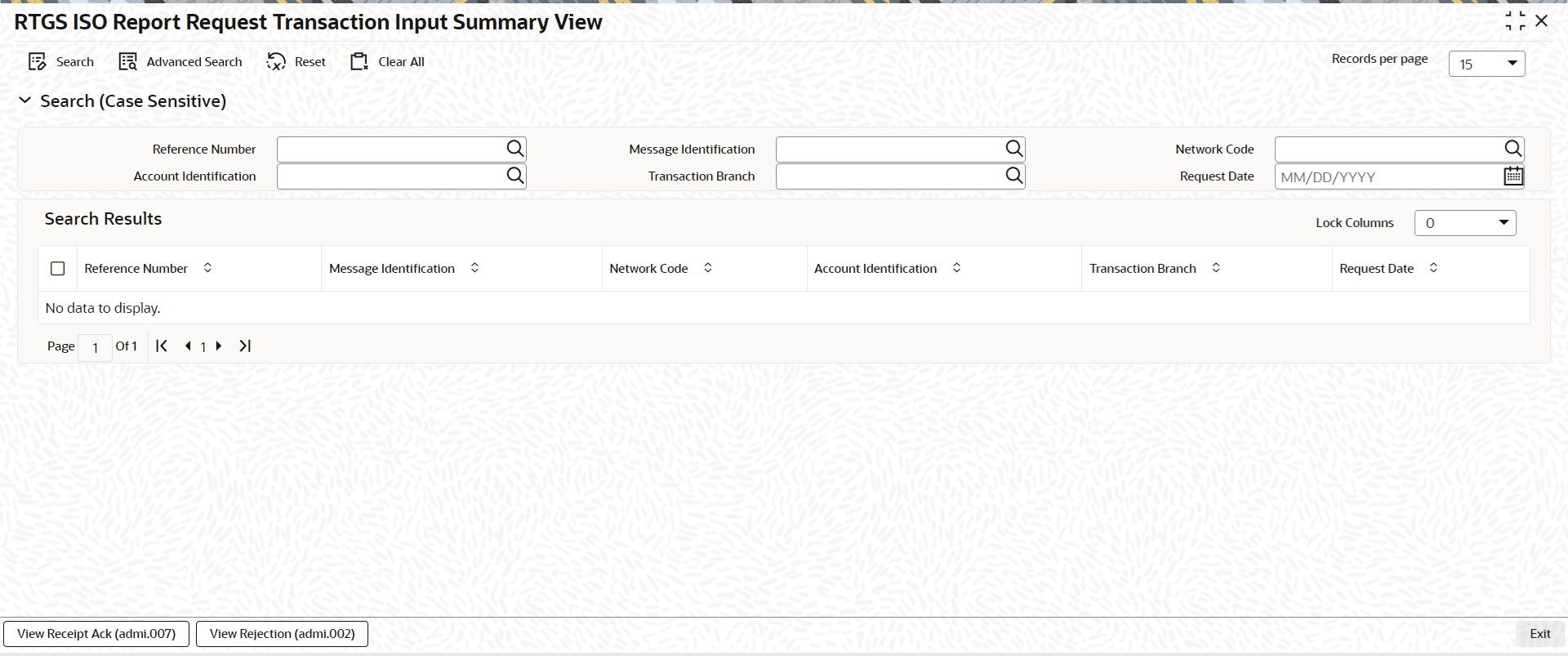

    Figure 15-11 RTGS ISO Report Request Transaction Input Summary View

    Description of Figure 15-11 follows
    Description of "Figure 15-11 RTGS ISO Report Request Transaction Input Summary View"
  2. Search using one or more of the following parameters:
    • Reference Number
    • Message Identification
    • Network Code
    • Account Identification
    • Transaction Branch
    • Request Date
  3. Once you specified the parameters, click the Search button.
    System displays the records that match the search criteria.
  4. Perform the following actions:

    Click ‘View Receipt Ack (admi.007)’ button to launch Generic Wires ISO Receipt Acknowledgement View (PSDIGRAV) screen and display the Acknowledgement (admi.007) message received for outgoing admi.005 message.

    In case if no Acknowledgement (admi.007) message is received and user clicks on ‘View Receipt Ack (admi.007)’ button then error message "Receipt Acknowledgement (admi.007) is not received for the transaction" is displayed.

    Click View Rejection (admi.002) button to launch Generic Wires ISO Message Rejection View (PSDIMRVW) screen and display the Rejection (admi.002) message received for outgoing admi.005 message.

    It displays error message "Rejection (admi.002) is not received for the transaction", if you receive no Rejection (admi.002) message on clicking View Rejection (admi.002) button.

Parent topic: Generic Wires ISO Report Request Transaction Input
