15.1.1 Generic Wires ISO Message Rejection View

The Generic Wires ISO Message Rejection View screen allows user to view the parsed data of incoming admi.002 message.
  1. On Homepage, specify PSDIMRVW in the text box, and click next arrow.
    Generic Wires ISO Message Rejection View screen is displayed.

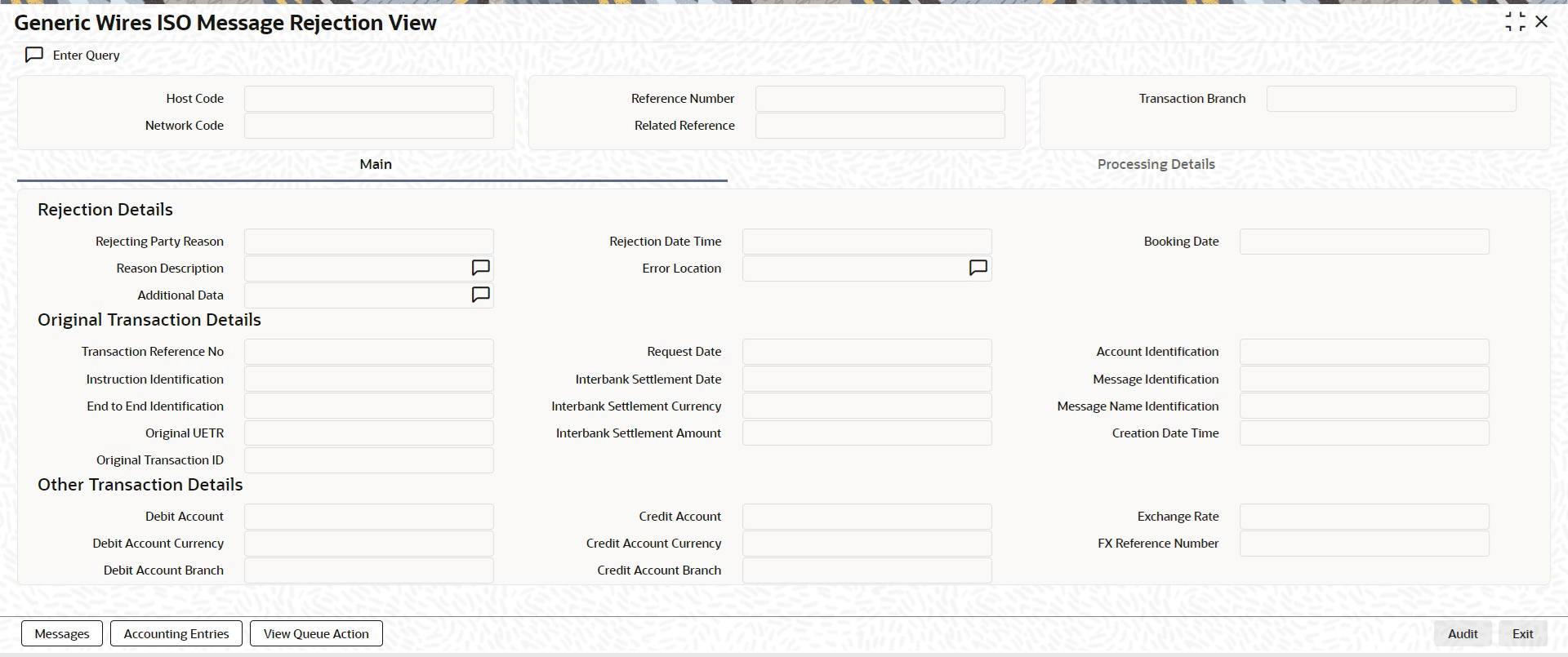

    Figure 15-1 Generic Wires ISO Message Rejection View


    Description of Figure 15-1 follows
    Description of "Figure 15-1 Generic Wires ISO Message Rejection View"

  2. Click New button on the Application toolbar.
  3. On Generic Wires ISO Message Rejection View screen, specify the fields.

    Table 15-1 Generic Wires ISO Message Rejection View - Field Description

    Field Description
    Host Code System defaults the Host Code of the user’s logged in branch on clicking ‘New’ button.
    Network Code System defaults the Network Code of the original message with which the admi.002 message is matched.
    Reference Number System displays the Transaction Reference Number.
    Related Reference System displays the Related Reference Received in the message.
    Transaction Branch System defaults the branch code of the logged in user branch.

Parent topic: Generic Wires ISO Message Rejection (admi.002)
