Business Type

The CNAPS Business Types screen allows users to maintain business types allowed for CNAPS. This is host-level maintenance.
  1. On Homepage, specify PHDBTYPE in the text box, and click next arrow.
    CNAPS Business Types screen is displayed.

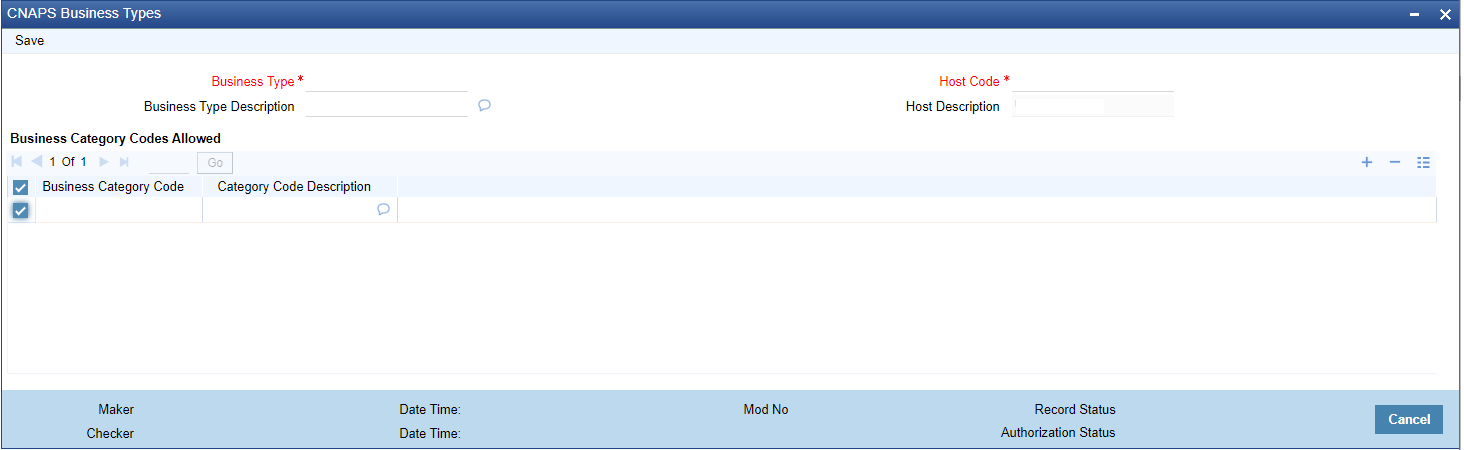

    Figure 2-5 CNAPS Business Types

    Description of Figure 2-5 follows
    Description of "Figure 2-5 CNAPS Business Types"
  2. Click New button on the Application toolbar.
  3. On CNAPS Business Types screen, specify the fields.
    For more information on fields, refer to the field description below:

    Table 2-5 CNAPS Business Types - Field Description

    Field Description
    Business Type Specify the Business Type. Alphanumeric characters are allowed and is mandatory.

    Note: Chinese characters are not allowed in this field.

    Business Type Description Specify the Business Type Description. Alphanumeric characters are allowed and supported length is 255 characters.

    Note:Chinese characters are allowed in Business type Description field.

    SSI Label Specify the SSI Label and this is an user input field. It is mandatory and allowed character length is 35.
    Host Code System displays the Host Code of selected branch of the logged in user on clicking ‘New’ button.
    Host Code Description System defaults the description of the Host Code.
    Business Category Codes Allowed --
    Business Category Code Specify the Business Category Codes allowed for the business type. It is mandatory to maintain at-least one Business Category Code per business type. Alphanumeric values are allowed up-to a length of 5 characters.

    Note:Chinese characters are not allowed in this field.

    Category Code Description Specify the Category Code Description. Alphanumeric characters are allowed and supported length is 255 characters.

    Note: Chinese characters are allowed in Category Code Description field.
