1.3.7 Network Address Preferences Detailed

The Network Address Preferences Detailed screen allows user to maintain allowed address categories for each Network.

This maintenance is used for adding preferences based on address category (structured / hybrid / unstructured) for SWIFT MX and SEPA modules.

  1. On Homepage, specify PMDNWADD in the text box, and click next arrow.
    Network Address Preferences Detailed screen is displayed.

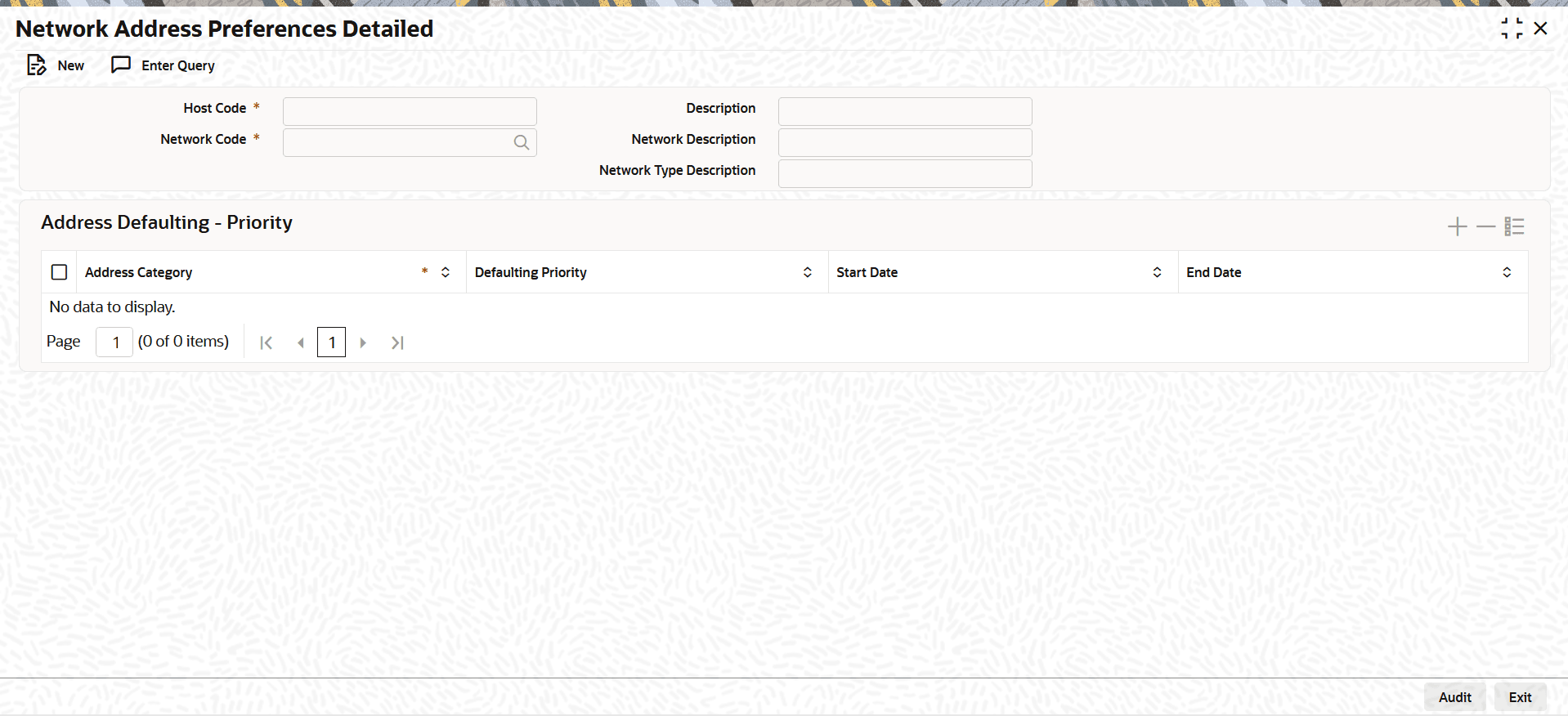

    Figure 1-49 Network Address Preferences Detailed


    Description of Figure 1-49 follows
    Description of "Figure 1-49 Network Address Preferences Detailed"

  2. On Network Address Preferences Detailed screen, click New to specify the fields.

    Table 1-28 Network Address Preferences Detailed - Field Description

    Field Description
    Host Code System defaults the host code of transaction branch on clicking New.
    Host Code Description System defaults the description of the host code displayed.
    Network Code

    Specify the Network Code from the list of values.

    All valid Network Codes for Network Type Codes GN-CBX / EU-TGT /EU-SCT/EU-SDD/EU-RT1 & EU-TPS and valid foreign currency instrument codes from Instrument Code Detailed (PGDINSCD) are listed.

    Network Description System defaults description of network code selected.
    Network Type Description System defaults the description of the Network Code displayed.
    Address Defaulting - Priority This section displays the Address Defaulting - Priority.
    Address Category
    Select the Address Category from the following:
    • Structured
    • Unstructured
    • Hybrid
    Defaulting Priority System sets Priority to 1 for the first row and updates it as rows are added or deleted.
    Start Date Start Date is defaulted based on the Network Type Code of the Network selected. User can modify the same.
    End Date

    End Date is defaulted based on the Network Type Code of the Network selected. User can modify the same.

    Note:

    Defaulting priority is applied when customer /account address is defaulted by system for any outbound transactions for the Network selected.

    Start Date and End Date defines the applicability of the particular address category for the Network selected.

    If this maintenance is not available, the values as present in the static table pmzm_hybrid_ addr_pref are used for address validation of SWIFT MX and SEPA payments.
