This topic provides the systematic instructions to capture Generic Wires ISO Outbound network preference.

1. On Homepage, specify PSDOGWNP in the text box, and click next arrow.
   The Generic Wires ISO Outbound Network Preference Maintenance screen is displayed.

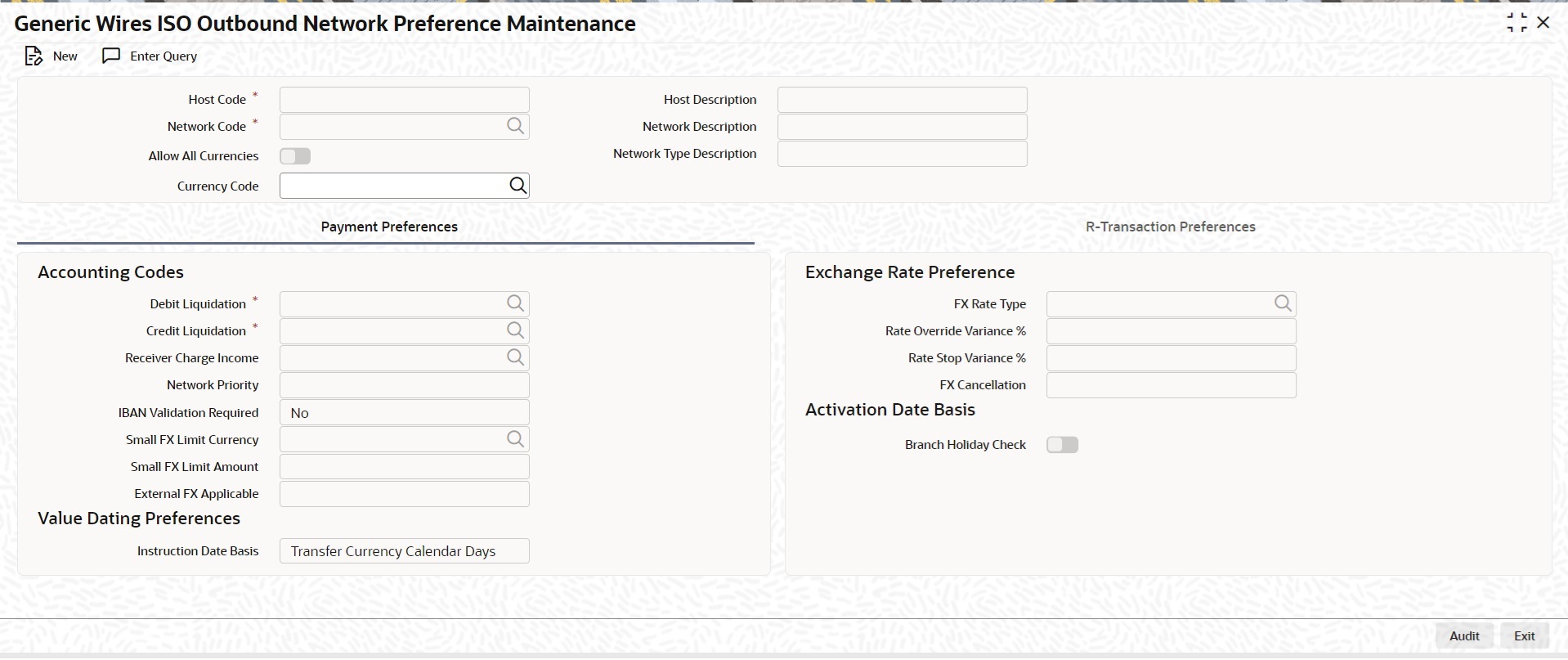

   Figure 2-1 Generic Wires ISO Outbound Network Preference Maintenance


   Description of "Figure 2-1 Generic Wires ISO Outbound Network Preference Maintenance"
2. On the Generic Wires ISO Outbound Network Preference Maintenance screen, click New to specify the fields.
   For more information about the fields, refer to field description table.

   Table 2-5 Generic Wires ISO Outbound Network Preference Maintenance - Field Description

   Field	Description
   Host Code	System defaults the Host Code of transaction branch when the user clicks the New button.
   Host Code Description	System defaults the description of the Host Code displayed.
   Network Code	Select the Network Code from the list of values. The list of values contains all the open/ authorized Cross-border MX and EU-TARGET2 network codes defined in the host.
   Network Description	System defaults the description of the selected Network Code.
   Network Type Description	System defaults the description of the selected network type.
   Currency Code	Select the Currency Code from the list of values. The list of values contains all the open/ authorized currency codes maintained in Currency Definition (CYDCDEFE) screen. Note: This field is disabled when Allow All Currencies check box is selected.

• Process Payment Preferences Tab
  This topic explains the Payment Preferences tab of the Generic Wires ISO Outbound Network Preference Maintenance screen.
• Process R-Transaction Preferences Tab
  This topic explains the R-Transaction Preferences tab of the Generic Wires ISO Outbound Network Preference Maintenance screen.
• Generic Wires ISO Outbound Network Preference Summary
  This topic provides the instructions to view the details of the selected records.
