9.3.1.5 Process Generic Wires ISO Inbound Cancellation Response View Summary

This topic explains the systematic instructions to process the Generic Wires ISO Inbound Cancellation Response View Summary screen.

This screen provides a summarized overview of the results for ISO 20022-based inbound cancellation requests.
  1. On Homepage, specify PSSIGCNR in the text box, and click Next Arrow.
    The Generic Wires ISO Inbound Cancellation Response View Summary screen is displayed.

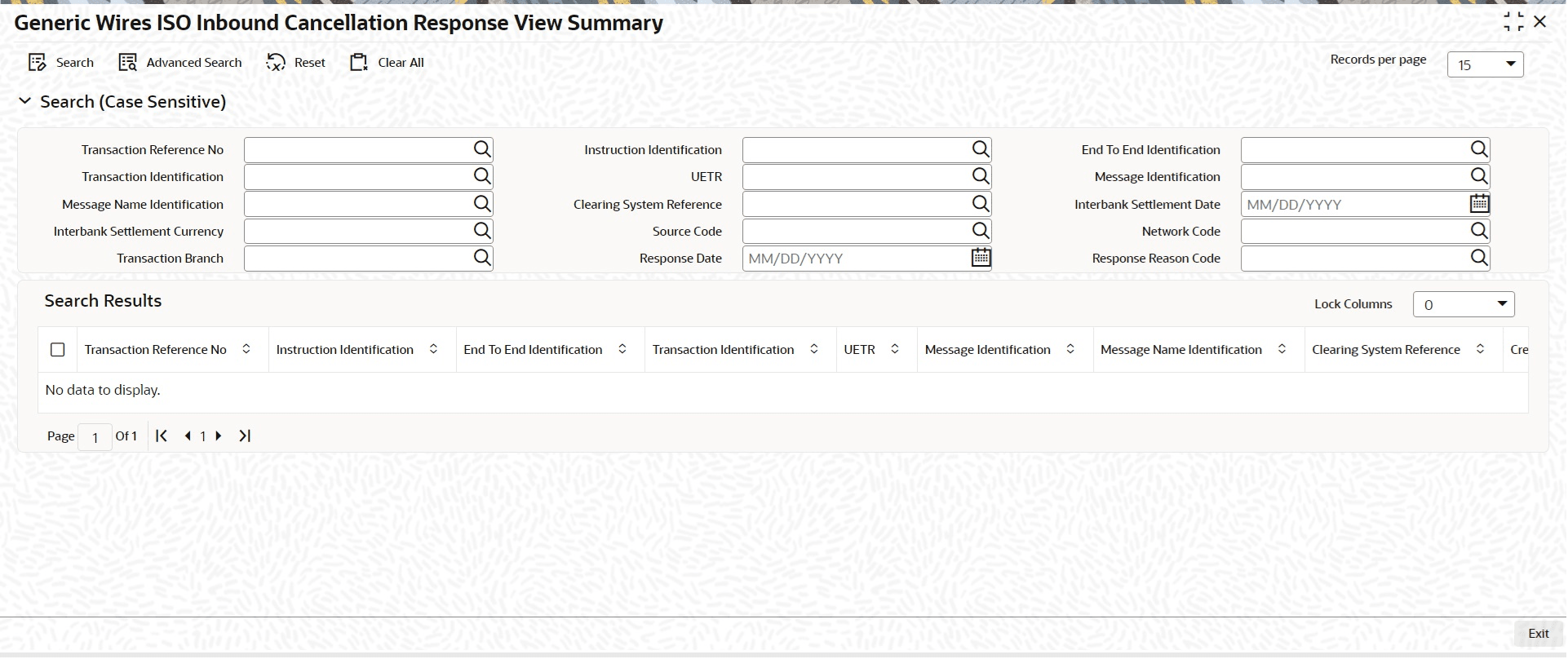

    Figure 9-25 Generic Wires ISO Inbound Cancellation Response View Summary

    Description of Figure 9-25 follows
    Description of "Figure 9-25 Generic Wires ISO Inbound Cancellation Response View Summary"
  2. Search using one or more of the following parameters:

    Table 9-26 GGeneric Wires ISO Inbound Cancellation Response View Summary - Field Description

    Field Description
    Search (Case Sensitive) This section displays fields to perform search.
    Transaction Reference No Select the reference number for the transaction.
    Transaction Identification Select the identification number for the transaction.
    Message Name Identification Select the identification for the message name.
    Interbank Settlement Currency Select the currency for the interbank settlement.
    Transaction Branch Select the branch from which the transaction was initiated.
    Instruction Identification Select the identification number for the instruction.
    UETR Select the UETR value.
    Clearing System Reference Select the reference number for the clearing system.
    Source Code Select the source code for the transaction.
    Response Date Select the date of which the response was received.
    End to End identifcation Select the end to end identification number.
    Message Identification Select the identification number for the message.
    Interbank Settlement Date Select the date on which the interbank settlement was initiated.
    Network Code Select the network code.
    Response Reason Code Select the reason code for the response.
    Search Results This section displays the details based on the search performed. The fields are same as displayed in the Search (Case Sensitive) section and are not editable.
  3. Click Search.
    The system displays the records that match the search criteria.

Parent topic: Process Generic Wires ISO Inbound Cancellation Response View
