Inbound RFP Payments View

2.3.2 Inbound RFP Payments View

The US RTP Inbound Request for Payment View screen allows user to view Inbound RFP status. Payments received from all channels are listed in this screen. The related messages are listed in the ‘View Messages’ sub-screen.

On Homepage, specify PUDIRPVW in the text box, and click next arrow.
US RTP Inbound Request for Payment View screen is displayed.

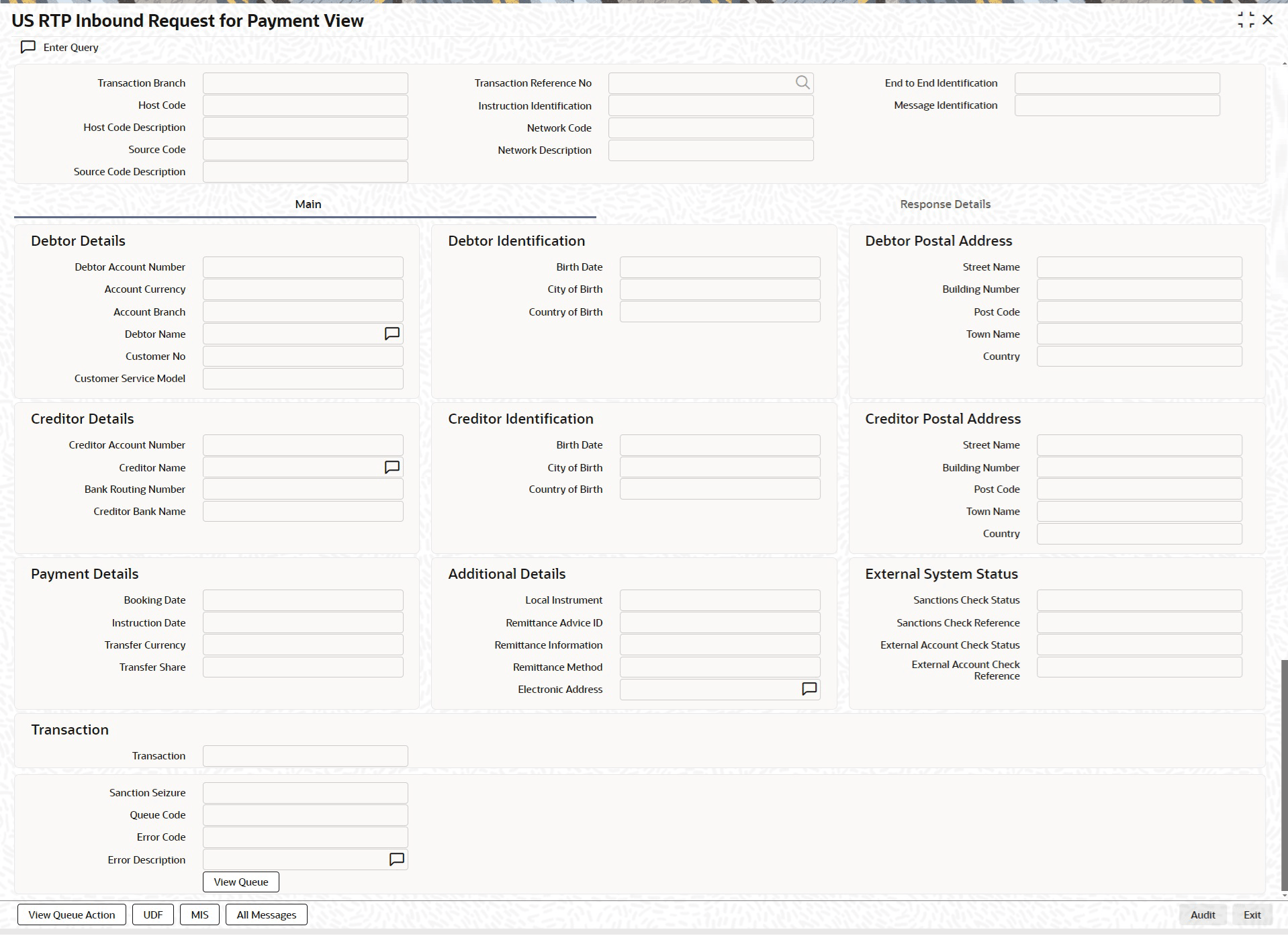

Figure 2-15 US RTP Inbound Request for Payment View

Description of "Figure 2-15 US RTP Inbound Request for Payment View"
Click Enter Query from this screen.
The Transaction Reference field gets enabled which opens an LOV screen.
Click the Fetch button and select the required value.
Along with the transaction details in the Main and Pricing tabs user can also view the Status details for the following:
- External System Status
- Transaction Status
Click Execute Query to populate the details of the transaction in the US RTP Inbound Request for Payments View screen.
For more details on Main, Pricing tabs refer to ‘PUDOTRFP’ details above.

Response Details Tab
View Queue Action
This topic provides the systematic instructions to process the View Queue Action Log screen.
UDF Button
This topic provides details of the Fields screen.
MIS Button
This topic explains the MIS Details screen.
All Messages
US RTP Inbound Request for Payments View Summary

Parent topic: Inbound Request for Payments
