2.4.2 Inbound High Value Payments View

The Inbound Cross Border Payments View screen allows user to view the complete details about the RTGS Inbound transaction, approvals from the system, Queue actions, and all the details pertaining to the transaction.

On Homepage, specify PXDIVIEW in the text box, and click next arrow.
Inbound Cross Border Payments View screen is displayed.

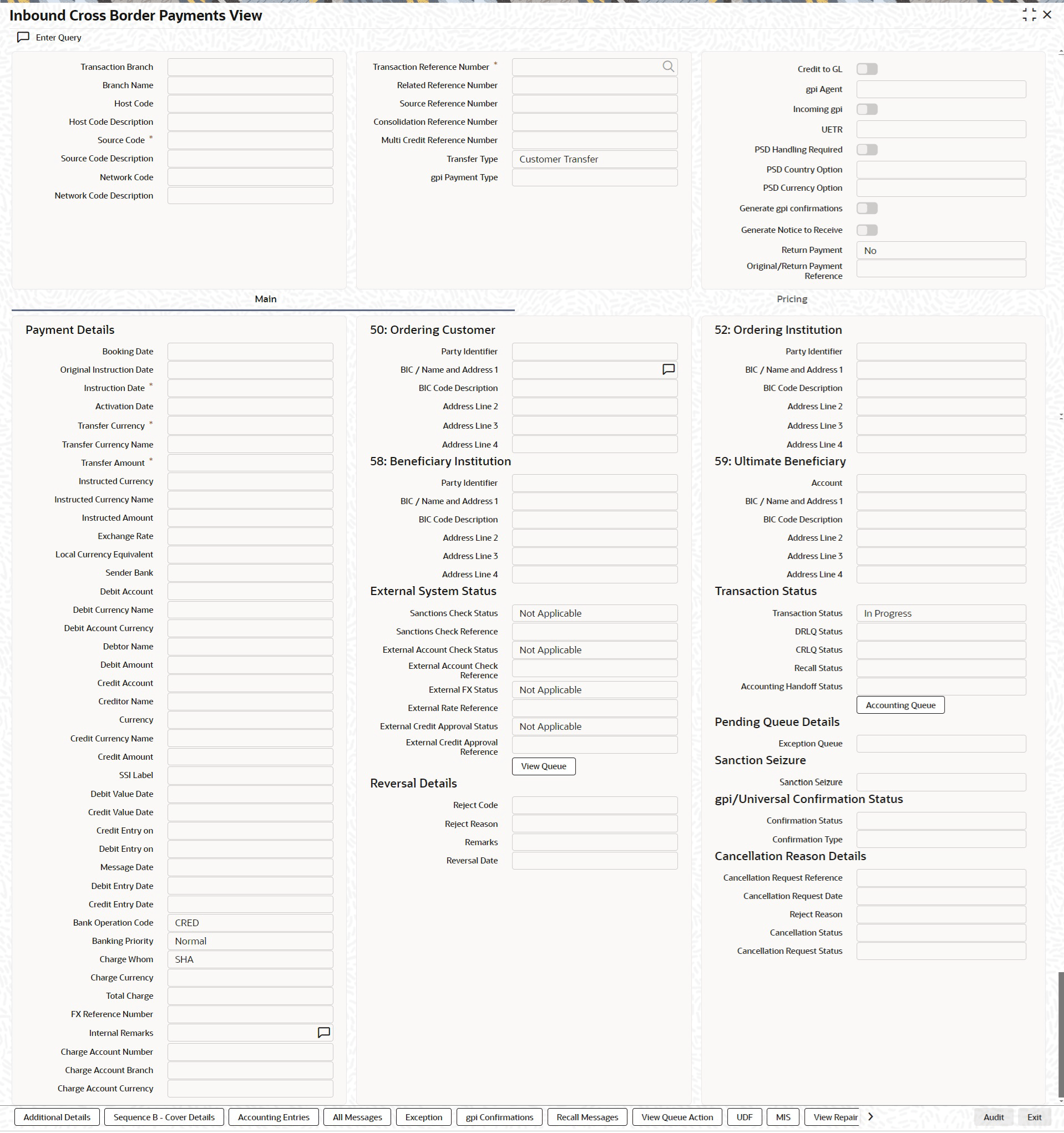

Figure 2-33 Inbound Cross Border Payments View

Description of "Figure 2-33 Inbound Cross Border Payments View"
From this screen, click Enter Query.
The Transaction Reference field gets enabled which opens an LOV screen.
Click the Fetch button and select the required value.
Along with the Return reference details in the Main and Pricing tabs user can also view the following:
- External System Status
- Transaction Status
- Pending Queue Details
- Sanction Seizure
Click Execute Query to populate the details of the transaction in the Inbound Cross Border Payments View screen.
For more details on Main and Pricing tabs refer to ‘PXDITONL’ screen details above

Additional Details Tab
Accounting Entries
All Messages
This topic provides details of the All Messages screen.
Exceptions Tab
gpi Confirmations
Recall Messages
View Queue Action
This topic provides the systematic instructions to process the View Queue Action Log screen.
Process UDF View
This topic provides the systematic instructions to process the UDF View screen.
Process MIS View
This topic provides the systematic instructions to process the MIS View screen.
View Repair Log
This topic explains the details of the View Repair Log screen.
RTGS Inbound Payment View Summary

Parent topic: RTGS Inbound Transaction
