This topic explains the steps to maintain Consumer Services for Account Validation.

1. Specify Transformation Name, Product Processor created for OBA and implementation.
2. Maintain the following service endpoint for amount blocks in the Consumer Service, /obcdda-pp-transaction-balance-service/ob/oba/tbs/v1/transactions/amountBlocks/.

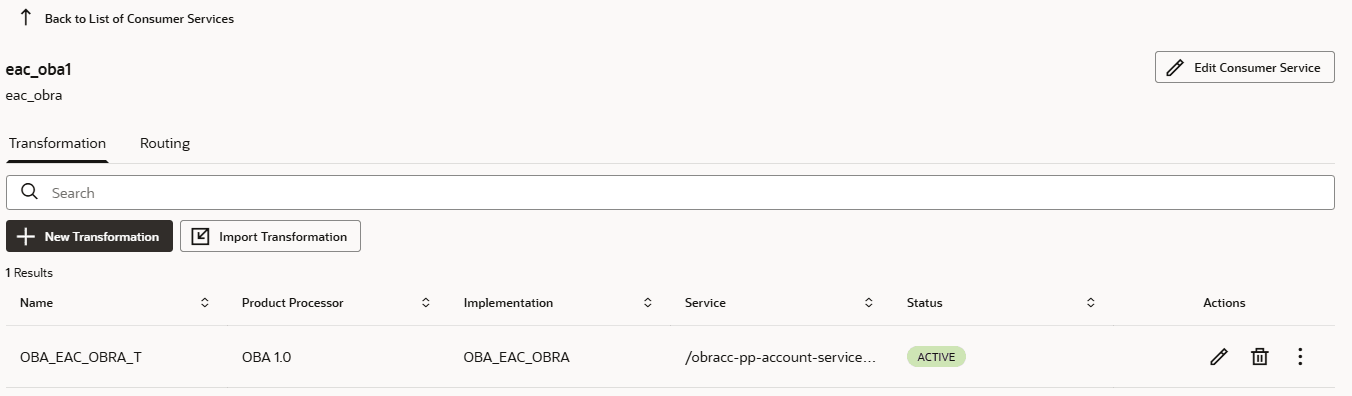

   Figure 2-5 Service Consumers for Account Validation_Transformation





   Description of "Figure 2-5 Service Consumers for Account Validation_Transformation"



3. Specify Routing Name, Product Processor created for OBA and implementation.

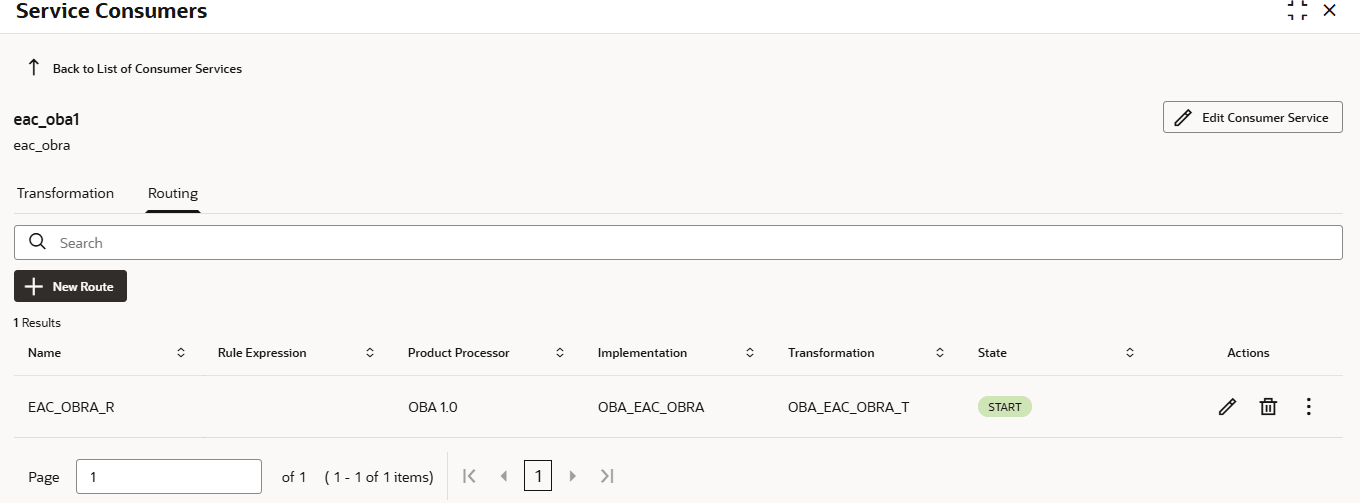

   Figure 2-6 Service Consumers for Account Validation_Routing





   Description of "Figure 2-6 Service Consumers for Account Validation_Routing"



4. Map the Consumer Services to the SERVICE-CONSUMER-SERVICE field in the Header Profile (MSDHPROF) with service profile of External System Interface Maintenance.
   Kindly refer OBRH user guides for detailed information for configuration.
