This topic explains systematic instructions to maintain the bulking preference definition.

1. On Homescreen, type MSDBLKRL in the text box, and click Next.
   The Bulking Preference Definition screen displays.

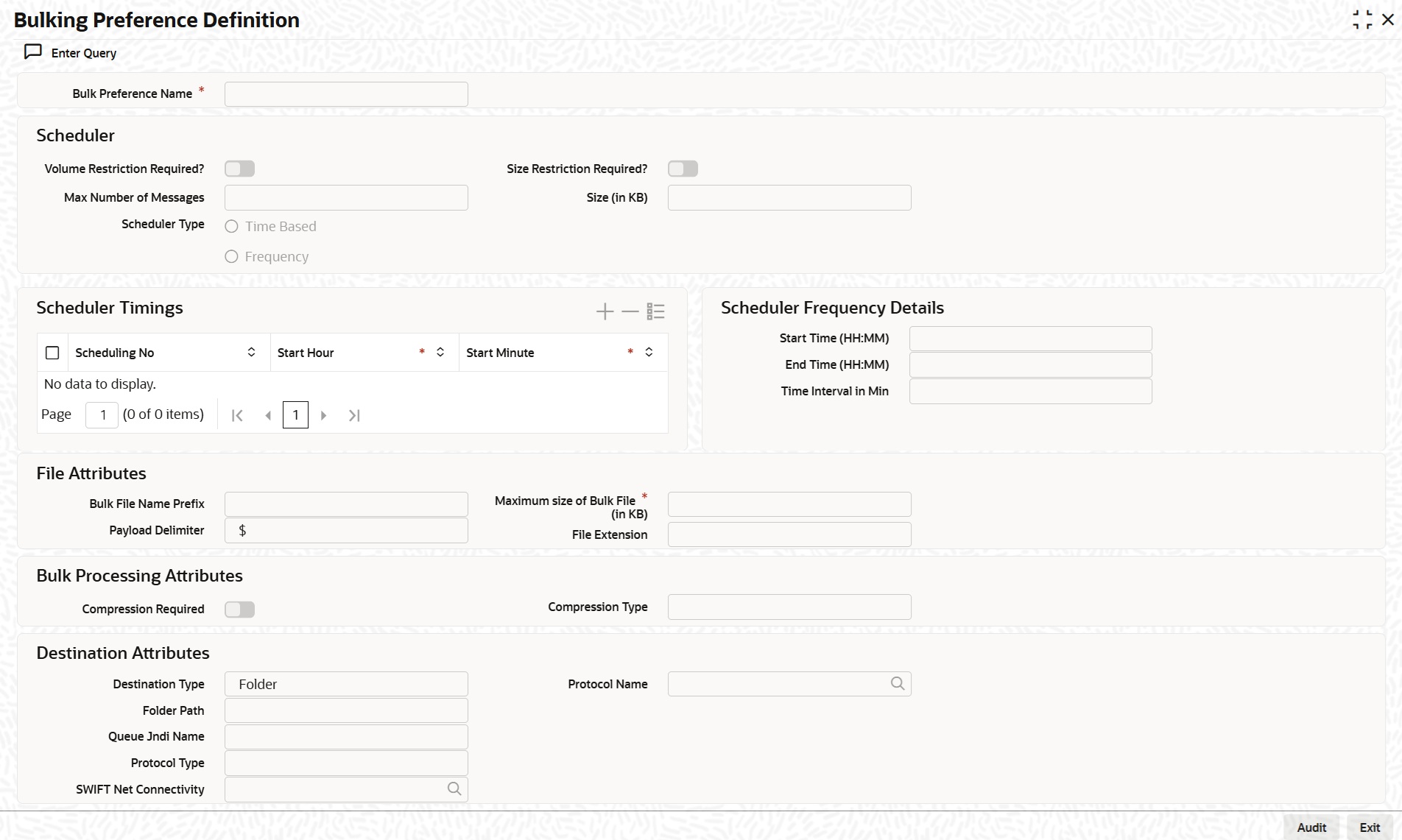

   Figure 1-30 Bulking Preference Definition





   Description of "Figure 1-30 Bulking Preference Definition"



2. On the Bulking Preference Definition screen, specify the fields.

   Note:

   The fields, which are marked with an asterisk, are mandatory.

   For more information on fields, refer to the field description table.

   Table 1-30 Bulking Preference Definition - Field Description

   Field	Description
   Bulking Preference Name	Specify the name used for storing the bulk preference.
   Volume Restriction Required?	Switch this toggle to configure volume based bulking.
   Maximum number of messages	Specify the maximum number of messages that can be stored in a bulk file.
   Size Restriction Required?	Switch this toggle to configure size based bulking.
   Size (In KB)	Specify the size in KB.
   Scheduler Type	Select the type of scheduler from the following options: Time Based Frequency
   Scheduling Number	Specify the scheduling sequence.
   Start Hour	Specify the start hour of the scheduling sequence.
   Start Minute	Specify the start minute for frequency based scheduler.
   Start Time (HH:MM)	Specify the start time of the trigger. Enter the format in HH:MM format.
   End Time (HH:MM)	Specify the end time of the trigger. Enter the format in HH:MM format.
   Time Interval in Min	Specify the interval of the repeat in MM format.
   Bulk File Name Prefix	Specify the prefix to indicate the name of the bulk file.
   Maximum size of Bulk File (In KB)	Specify the maximum size of a bulk file in KB.
   Payload Delimiter	Specify the delimiter while bulking messages.
   File Extension	Select the file format that must be used while bulking messages.
   Compression Required	Switch this toggle to indicate that file compression is required.
   Compression Type	Specify the required type of compression from the drop-down list: Zip GZip
   Destination Type	Specify the type of destination from the drop-down list: Folder Queue SwiftNet Connectivity If the Destination Type is SwiftNet Connectivity, then a field SwiftNet Connectivity needs to be selected from list of values which gives the list of connectivity lines.
   Folder Path	Specify the user defined destination folder path.
   Queue JNDI Name	Specify the JNDI name of the queue if the Destination Type is selected as Queue.
   Protocol Type	Select the type of protocol from the drop-down list: FTA MQHA
   Swift Net Connectivity	Select the Swift Net connectivity from the list of values.
   Protocol Name	Specify the protocol name for the selected protocol.

3. Click Exit to end the transaction.
