3.1.2 IMPS Outbound Transaction View

The IMPS Outbound Transaction View screen allows users to view all the outbound IMPS transactions with all the processed details.
  1. On Homepage, specify PJDOVIEW in the text box, and click next arrow.
    IMPS Outbound Transaction View Detailed screen is displayed.

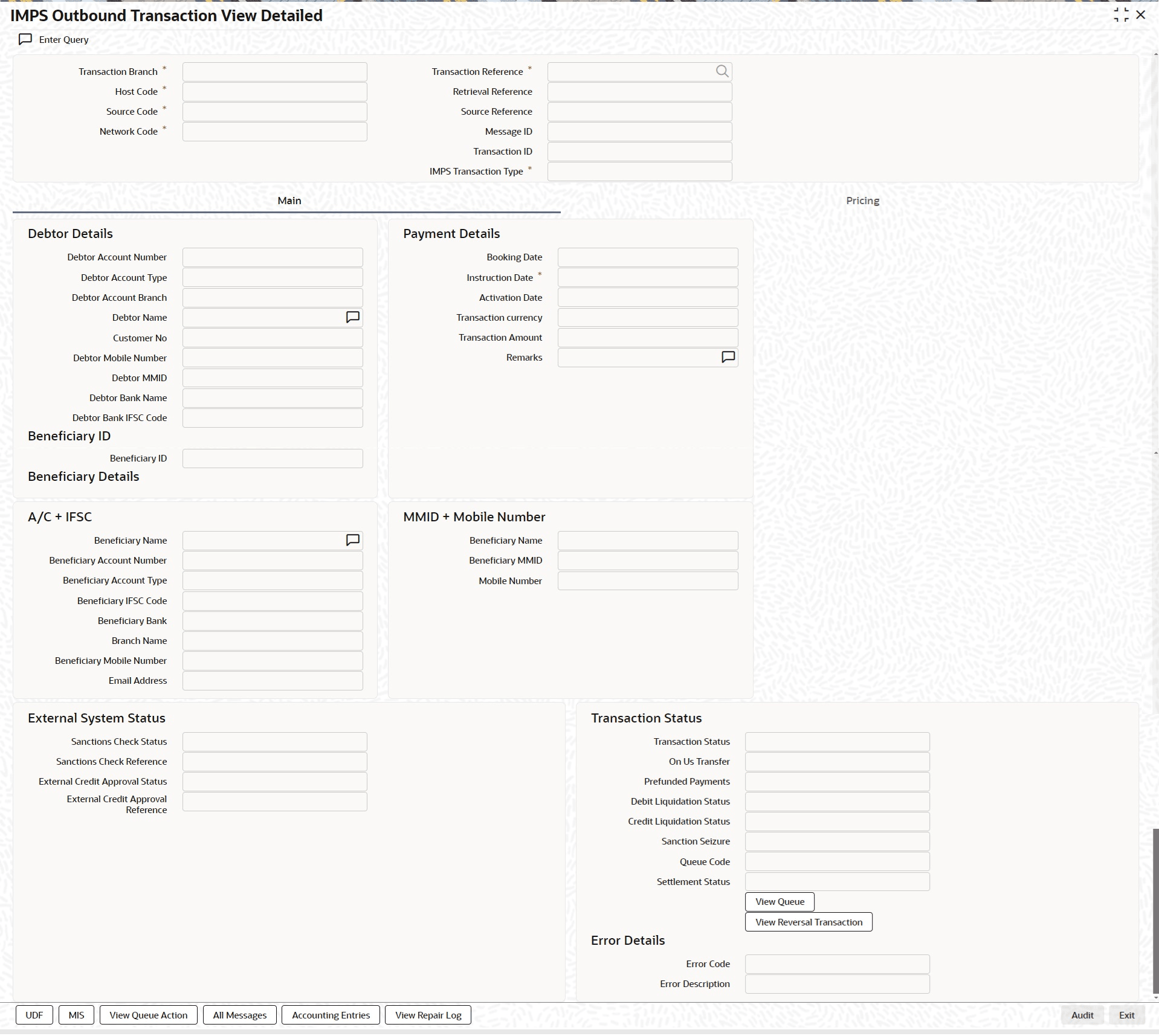

    Figure 3-7 IMPS Outbound Transaction View Detailed

    Description of Figure 3-7 follows
    Description of "Figure 3-7 IMPS Outbound Transaction View Detailed"
  2. From this screen, click Enter Query. The Transaction Reference field gets enabled which opens an LOV screen.
  3. Click the Fetch button and select the required value.
  4. Along with the transaction details in the Main and Pricing tabs user can also view the Status details for the following:
    • External System Status
    • Transaction Status
    • Error Details
  5. Click Execute Query to populate the details of the transaction in the IMPS Outbound Transaction View screen.
    For more details on Main and Pricing tabs refer to ‘PJDOTONL’ screen details above.
    Transaction Status - Queue Code
    Transaction Status Applicable Queue Codes for IMPS Remarks
    In Progress <SC/EC/EP> Transaction is under progress (or) response is pending from External systems. Queue Code is applicable if response is pending from External system
    • Sanction Check
    • ECA
    • Pricing
    Exception <SC/EC/EP/BO/ PE> Transaction is in an internal/external queue. Applicable internal/external queues
    • Sanction Check
    • ECA
    • Pricing
    • Business Override
    • Processing Exception
    Future Dated <FV> Transaction is future-value dated
    Processed ## OUT message is generated
    Cancelled ## Cancelled from exception queue
    Seized ## Sanction Seized
    Rejected ## Decline response from NPCI
    Settlement Status

    Settlement Status field in the ‘Transaction Status’ section displays the following details:

    • Settled: On receipt of Response Pay with response code 00
    • Deemed Approved: On receipt of Response Pay with response code 91
