3.1.2 CNAPS Debit Outbound Transactions Input

The CNAPS Debit Outbound Transactions Input screen allows users to provide input for CNAPS Debit transactions.
  1. On Homepage, specify PEDODONL in the text box, and click next arrow.
    CNAPS Debit Outbound Transactions Input screen is displayed.

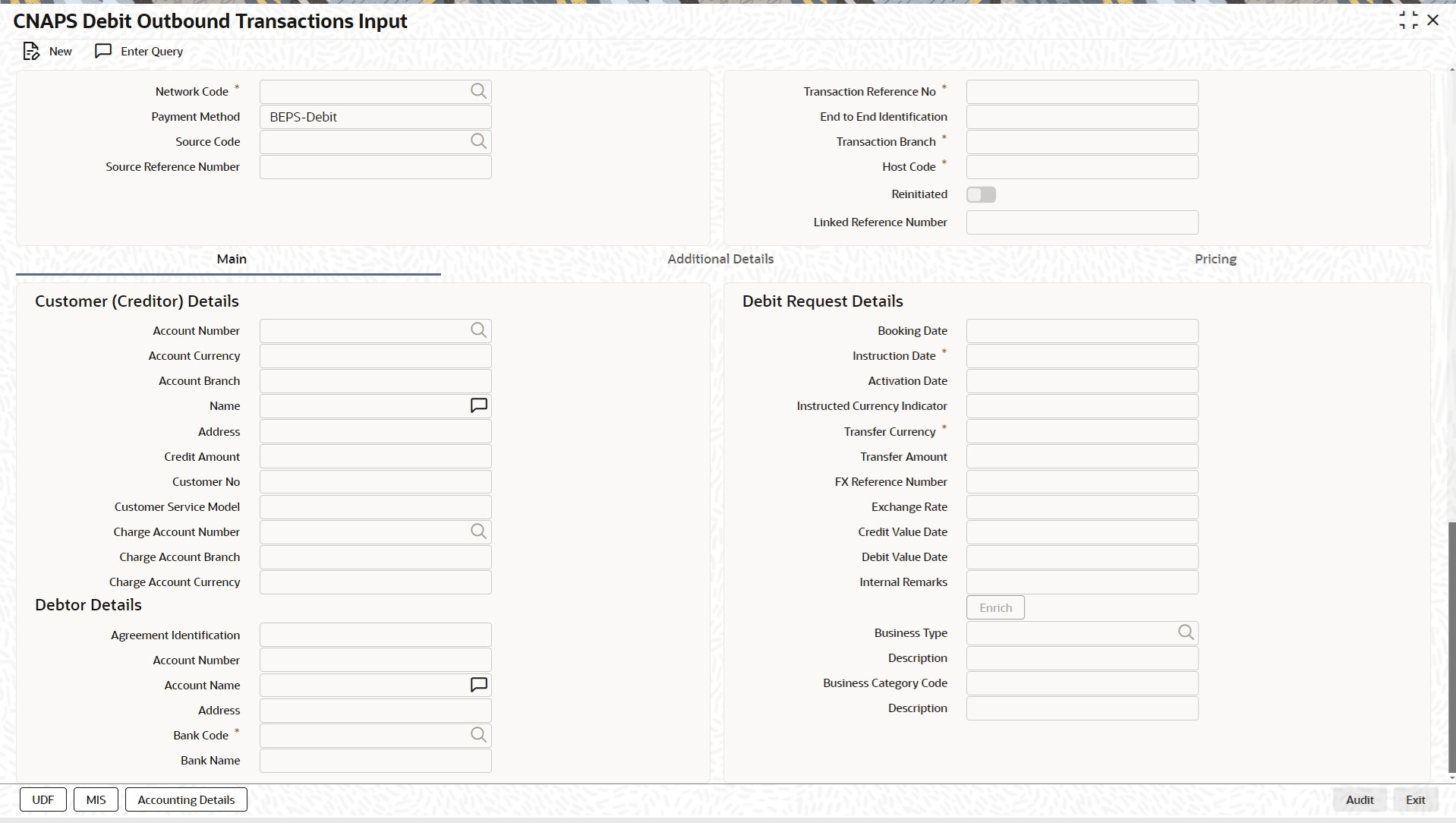

    Figure 3-4 CNAPS Debit Outbound Transactions Input

    Description of Figure 3-4 follows
    Description of "Figure 3-4 CNAPS Debit Outbound Transactions Input"
  2. Click New button on the Application toolbar.
  3. On CNAPS Debit Outbound Transactions Input screen, specify the fields.
    For more information on fields, refer to the field description below:

    Table 3-3 CNAPS Debit Outbound Transactions Input - Field Description

    Field Description
    Network Code Specify the Network Code. The list of values have all the valid CNAPS Debit networks maintained in PMDNWCOD, provided Network preferences are maintained in CNAPS Debit Network Preferences PEDNWPRF. If only one record is defined, that Network is defaulted on 'New' operation itself.
    Payment Method Select the payment type from the following:

    BEPS - Debit
    Source Code Specify the Source Code from the list of values.
    Source Reference Number Specify the External System Reference in this field. This is optional for manually input transaction and is mandatory transactions received from Channels.
    Transaction Reference Number This is a unique identifier of the CNAPS payment transaction and auto-generated by the system based on the common transaction reference generation logic. The same reference is used as Message ID in for the Outbound Dispatch record.
    End to End Identification Specify the End to End ID. It enables input of End to End ID provided by the originating customer (credit account owner). End to End ID if not provided by the customer is populated as the transaction reference on save.
    Transaction Branch Transaction Branch is auto populated by the system.
    Host Code Host Code linked to the Transaction Branch is defaulted Branch Core parameters (STDCRBRN).
