This topic describes systematic instructions to maintain Oracle Banking Routing Hub configuration in common core for Oracle Banking Accounts.

1. From Home screen, click Core Maintenance. Under Core Maintenance, click Routing Hub.
2. Under Routing Hub, click Service Consumers.
3. Click Edit.

   Figure 1-7 Edit Service Consumer





   Description of "Figure 1-7 Edit Service Consumer"



4. Under Environment Variables, add ASSETS as new group

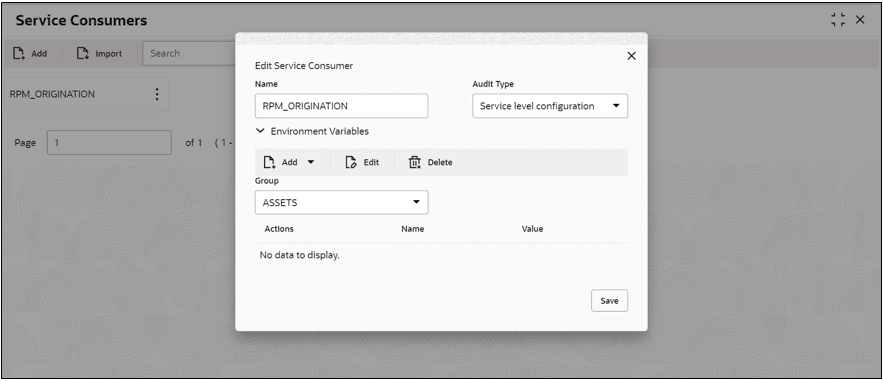

   Figure 1-8 Add Group





   Description of "Figure 1-8 Add Group"



5. Add PP as new variable, OBA as value and save it.

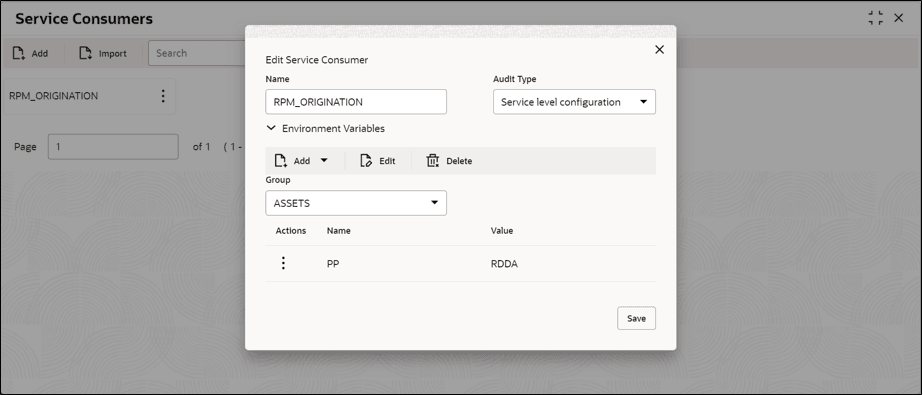

   Figure 1-9 Add Variable





   Description of "Figure 1-9 Add Variable"



6. Click RPM_ORIGINATION.
7. Under RPM_ORIGINATION, click Consumer Services.
8. Follow below steps for all consumer services mentioned.
   1. Search List_All_Liability_Products.
   2. Click Edit.
   3. Add Product_Processor as new attribute, add json path and save it.

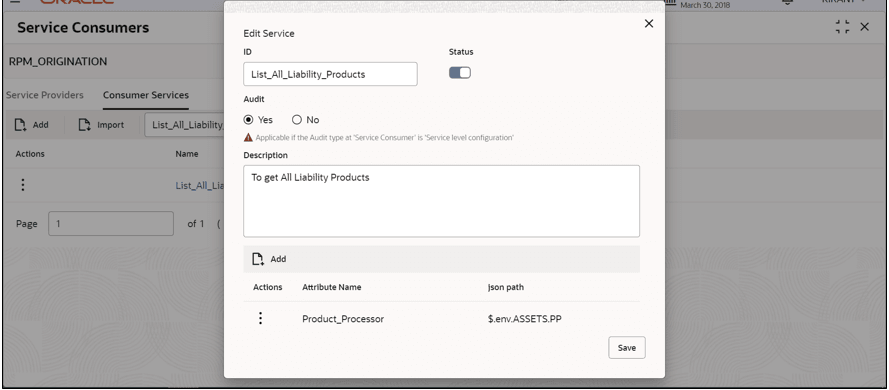

      Figure 1-10 Add Attribute





      Description of "Figure 1-10 Add Attribute"



   4. Click on List_All_Liability_Products Consumer service.
   5. Click on Routing.
   6. Click on Edit for List_All_Liability_Products_Route_RDDA route.
   7. Click on Custom Rule. Click on Expression Editor.
   8. Add Product_Processor as attribute (point 8.c) & “RDDA” as value(point 5). Save it.

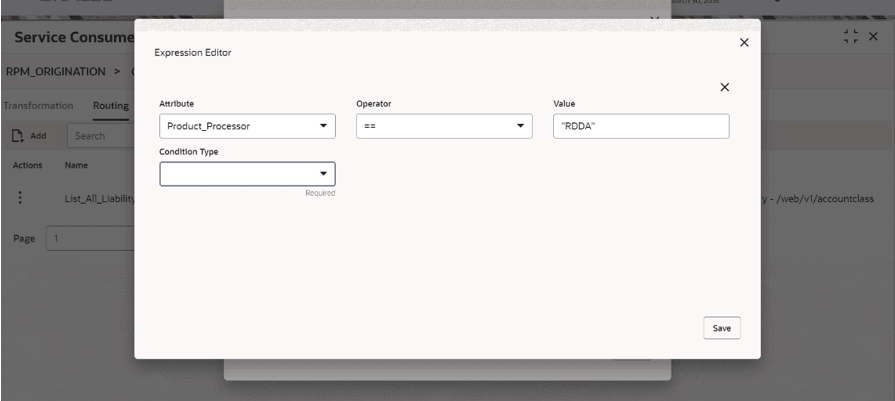

      Figure 1-11 Expression Editor





      Description of "Figure 1-11 Expression Editor"

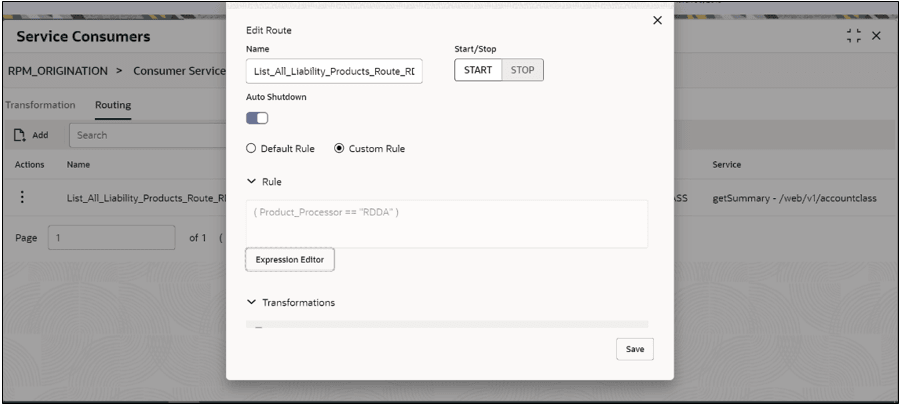

      Figure 1-12 Saved Expression





      Description of "Figure 1-12 Saved Expression"



   9. Save it.

      Figure 1-13 Saved route





      Description of "Figure 1-13 Saved route"
