1.4.1 Known Issues for Zipkin

This topic describes the known issues encountered when using Zipkin and how to work around them.

The below known issues addressed when using Zipkin:
  • Application Service is not Registered
    Perform the following steps to find the cause of this error:
    1. Check the applications, which are sending the trace report to the Zipkin server from Service Name drop-down list.

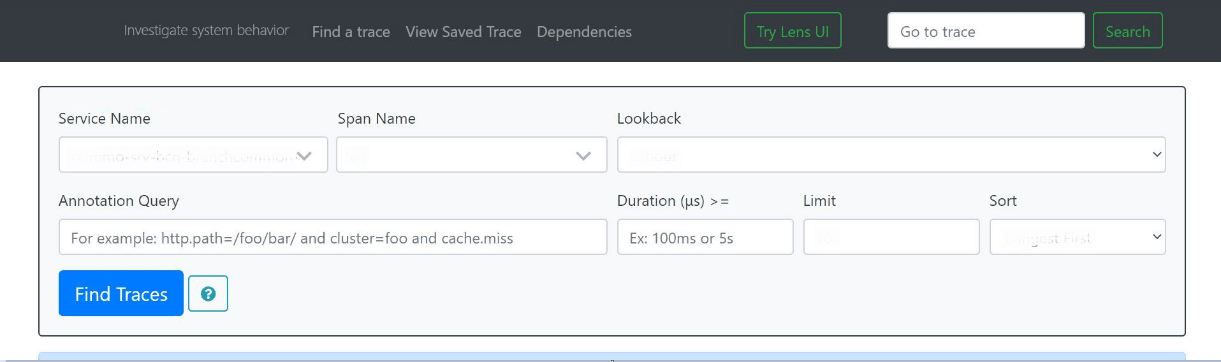

      Figure 1-12 Find Traces


      Description of Figure 1-12 follows
      Description of "Figure 1-12 Find Traces"

    2. If the required application is not listed in Zipkins, check the application.yml file for Zipkin base URL configuration.

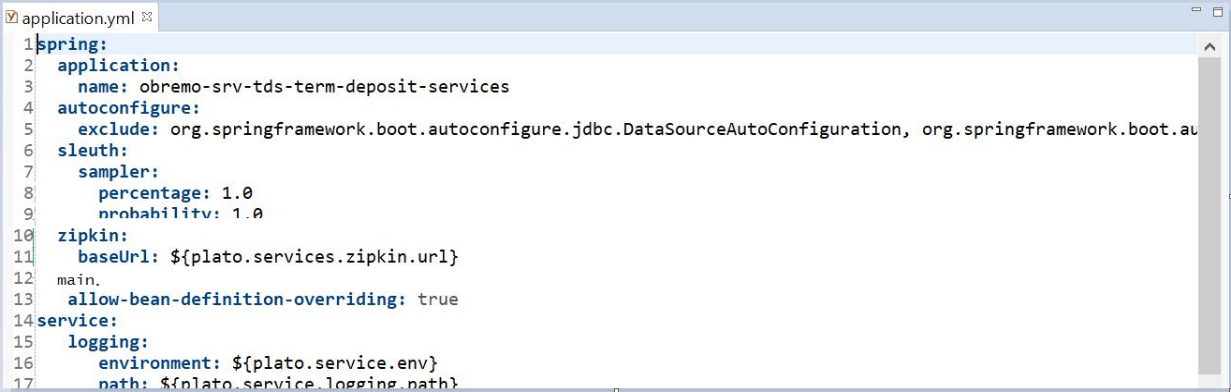

      Figure 1-13 application.yml File


      Description of Figure 1-13 follows
      Description of "Figure 1-13 application.yml File"

      Note:

      The shipped application.yml should have the Zipkin entry. Every service should have spring-cloud-sleuth-zipkin dependency added in the build gradle file for the service to generate and send trace Id and span Id.
    3. The necessary values are as follows:

      • Compile group: org.springframework.cloud

      • name: spring-cloud-sleuth-zipkin

      • version: 2.1.2.RELEASE

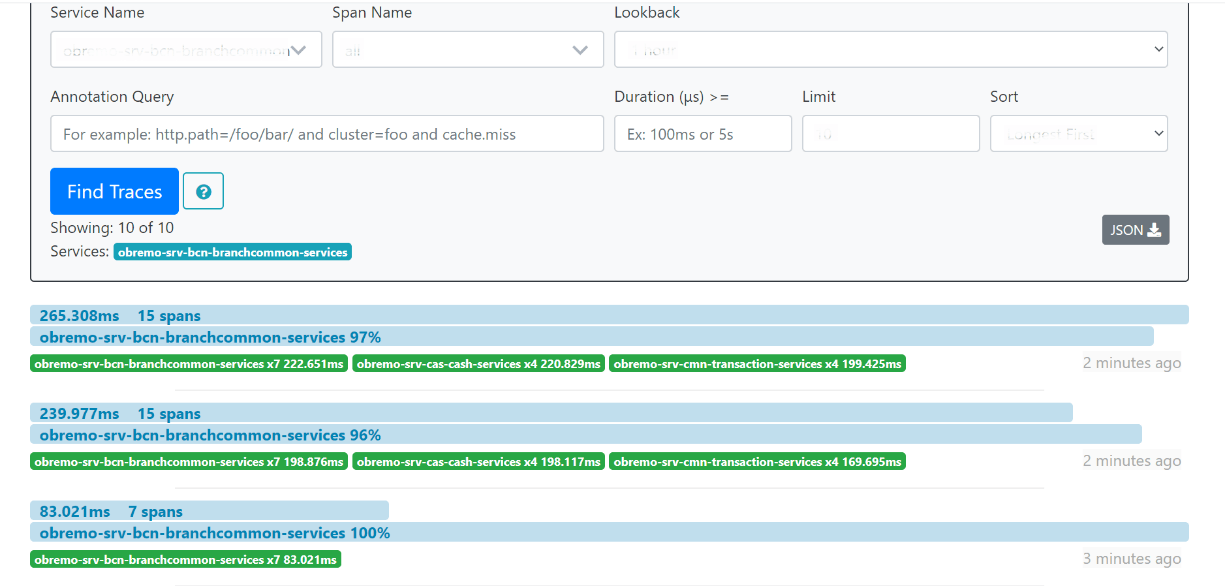

      Figure 1-14 Origination Common Services


      Description of Figure 1-14 follows
      Description of "Figure 1-14 Origination Common Services"

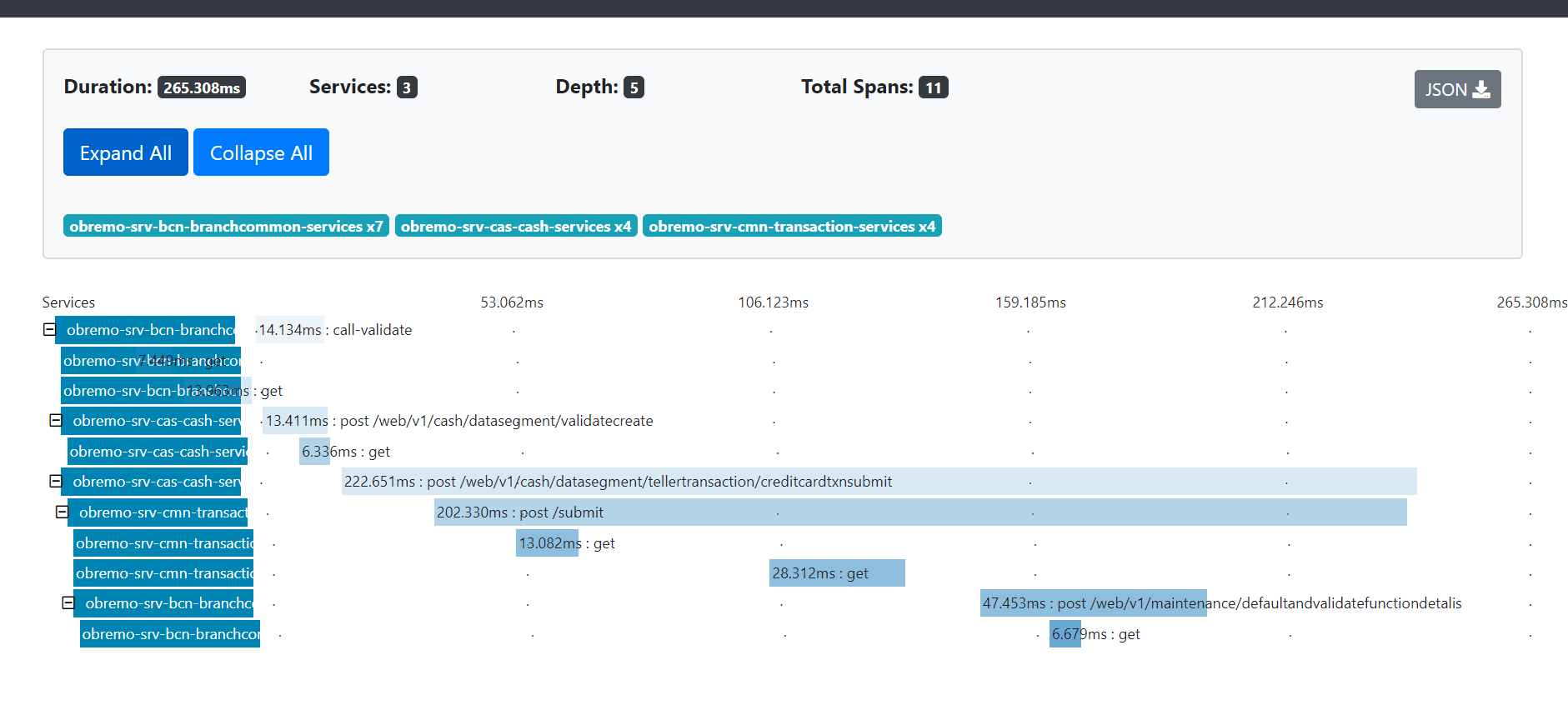

      Figure 1-15 Origination Common Services Trace


      Description of Figure 1-15 follows
      Description of "Figure 1-15 Origination Common Services Trace"

  • Page Not Found

    If there is a 404 error, check if the zipkin-server.jar is running in the system where the application is deployed. To check this, execute the following command:

    netstat -ltnup | grep ':9411'

    A sample output is shown below:

    tcp6    0    0    :::9411    :::*    LISTEN    10892/java

    Note:

    In the sample output, 10892 is the PID.
  • Unable to Change Zipkin Default Port Number

    The default port number of the Zipkin is not editable. Hence, make sure that port 9411 is available to start the Zipkin-server.jar file.

Parent topic: Troubleshoot Errors Using Zipkin Traces
