This topic provides the systematic instructions to configure the WebLogic Console.

1. Select Admin Server to enable SSL options.

   Figure 5-1 Configuration





   Description of "Figure 5-1 Configuration"



2. Click General tab.
3. Select SSL Listen Port Enabled, Client Cert Proxy Enabled, and Weblogic Plug-In Enabled.

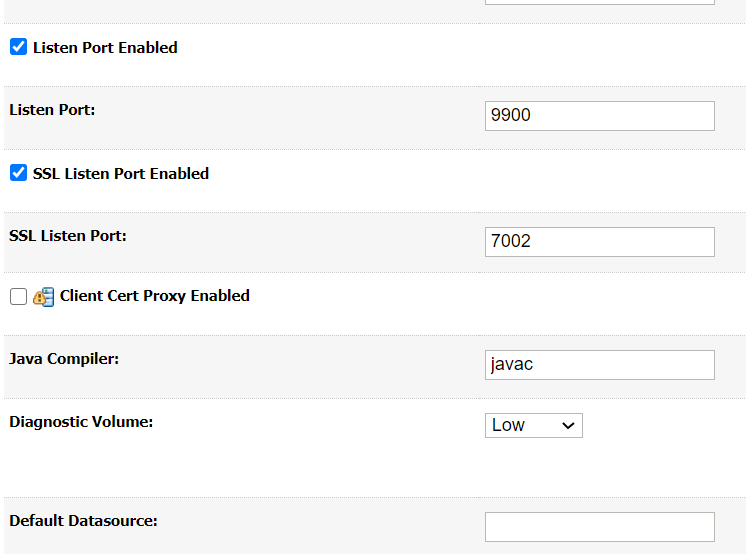

   Figure 5-2 Listen Port





   Description of "Figure 5-2 Listen Port"



4. Click Save.

   Figure 5-3 Settings for AdminServer





   Description of "Figure 5-3 Settings for AdminServer"



5. Click Keystores tab.
6. Enter Custom Identity Keystore and Custom Trust Keystore same as the Keystore Name created in above steps with full path.
7. Enter Custom Identity Keystore Type and Custom Trust Keystore Type as jks.
8. Enter Custom Identity Keystore Passphrase, Confirm Custom Identity Keystore Passphrase, Custom Trust Keystore Passphrase and Confirm Custom Trust Keystore Passphrase same as the Store Password entered in above steps.
9. Click Save.
10. Click SSL tab.
11. Enter Private Key Alias as same as the alias name entered in above steps.
12. Enter Private Key Passphrase and Confirm Private Key Passphrase as same as the Private Key Password entered in above steps.
13. Change the Hostname Verification to None.
14. Click Save.
15. Repeat the same steps for all the managed servers as well. Now the admin server and managed servers are SSL enabled. Restart all the servers.
