3.5 Channel Maintenance

Channel maintenance allows the bank user to define the incoming channel/medium for file exchange into Electronic Data Exchange system. Channels can be 'Global’ or ‘Non-Global’. Global channels can be used by any corporate, whereas Non Global channels are defined for a specific corporate.

Create Channel Maintenance:

This screen is used to create Channels.

Navigation Path:

From the Electronic Data Exchange, select Maintenance, click Channel, and then click View Channel

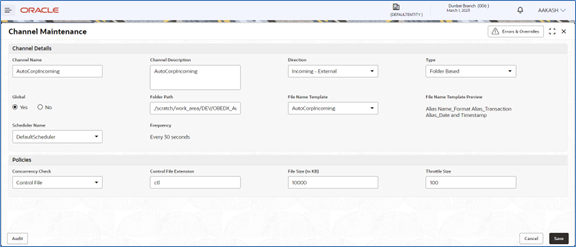

Figure 3-9 Create Channel


Description of Figure 3-9 follows
Description of "Figure 3-9 Create Channel "

  1. Refer to the following table for specifying details in the above screen:

    Note:

    Fields marked with ‘*’ are mandatory.

    Table 3-4 Field Description

    Field Name Description
    Channel Details
    Channel Name * Enter Channel Name to Create new channel
    Channel Description * Enter the description for the Channel
    Direction *

    Specify the direction of the channel maintenance, which is being setup.

    Note:

    1. Incoming – External (Corporate à Bank)
    2. Outgoing – External (Bank à Corporate)
    3. Incoming – Internal (Bank’s Product Processor à Oracle Banking Electronic Data Exchange for Corporate
    4. Outgoing – Internal (Bank à Bank’s Sub System)
    Type *

    Specify the channel type - Folder or Message based

    Note:

    This field will be displayed only when Direction is selected as Incoming – External or Incoming – Internal
    Folder Path * Enter the folder path ,from where file can be retrieve over channel
    Global * Select if the Channel Maintenance is being setup for Global (Bank level) or Non -Global (Corporate specific channel)
    File Name Template *

    Select the file name template from backend system to create channel maintenance

    Note:

    • If the channel maintenance is being setup for Global Channel then, this field will list down Global File Name templates
    • If it is for Non-Global Channel then Non-Global File Name templates will be listed here
    File Name Template preview

    This field will display File Name Template preview

    Note:

    This field will populate File name template orientation, depending on the file name template selected in previous step.
    Scheduler Name *

    Select the scheduler name from available list to map with channel maintenance

    Note:

    This field will be displayed only when Direction is selected as Incoming – External or Incoming – Internal
    Frequency

    This field will display frequency of the Scheduler selected in previous step

    Note:

    This field will be displayed only when Direction is selected as Incoming – External or Incoming – Internal
    Policies (Setup for Direction Incoming – External or Incoming – Internal)
    Concurrency Check * Select the Concurrency Check Method for channel maintenance
    Control File Extension*

    Specify the file extension for Control file Concurrency Check

    Note:

    This field will be displayed only if the user selects the control file in Concurrency Check field
    Allowed File Size (in KB) * Specify maximum allowed size for Channel Maintenance in KB
    Throttle Size * Enter the Throttle Size of scheduler

View Channel Maintenances:

By using this screen, user can View, Modify, Delete or Authorize the Channel Maintenance.

Navigation Path:

From the Electronic Data Exchange, select Maintenance, click Channel, and then click View Channel

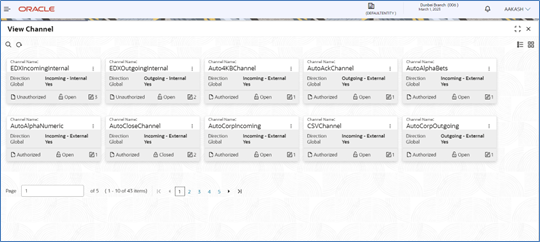

Figure 3-10 View Channel


Description of Figure 3-10 follows
Description of "Figure 3-10 View Channel "

  1. Click on ‘Audit’ to view the event of operation performed on maintenance.

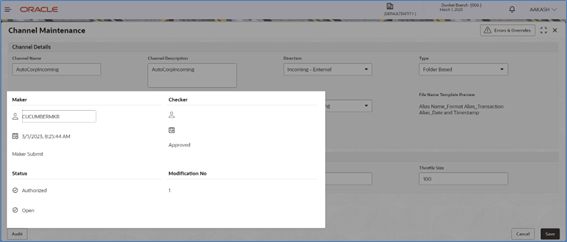

    Figure 3-11 Event of operation performed


    Description of Figure 3-11 follows
    Description of "Figure 3-11 Event of operation performed "

Perform the following steps to take actions on the Channel Details. Click the Options (option) icon and then click any of the below option:
