This topic provides information on OHS Configuration.

Provides details on configuration required on OHS to enable different URL’s for internal and external users. i.e authentication with OBDX or external service provider.

1. Open obdx.conf file from OHS server. You can find the location of obdx.conf file from httpd.conf file.
2. Verify if proxypass URLs are configured in obdx.conf file. If not then add entries as mentioned in below format.

   ProxyPassMatch "/digx(.*)" "<PROTOCOL>://<WL_HOST_NAME>:<WL_PORT>/digx$1"
   ProxyPassReverse "/digx(.*)" "<PROTOCOL>://<WL_HOST_NAME>:<WL_PORT>/digx$1"
   ProxyPassMatch "/saml2(.*)" "<PROTOCOL>://<WL_HOST_NAME>:<WL_PORT>/saml2$1"
   ProxyPassReverse "/saml2(.*)" <PROTOCOL>://<WL_HOST_NAME>:<WL_PORT>/saml2$1
   ProxyPassMatch "/digx(.*)" "http://whf000xxx.bank.com:19003/digx$1"
   ProxyPassReverse "/digx(.*)" "http://whf000xxx.bank.com:19003/digx$1"
   ProxyPassMatch "/saml2(.*)" "http://whf000xxx.bank.com:19001/saml2$1"
   ProxyPassReverse "/saml2(.*)" "http://whf000xxx.bank.com:19001/saml2$1"

3. Add below virtual configuration into obdx.conf file.

   ##Virtual HostsListen <PORT_1><VirtualHost *:<PORT_1>>    ServerName
           <HOST_NAME>
           RewriteEngine On
           RewriteOptions inherit
             <Directory
           "${DocumentRoot}">
           Options FollowSymLinks
           AllowOverride all
           </Directory></VirtualHost> Listen <PORT_2><VirtualHost
             *:<PORT_2>>
           ServerName <HOST_NAME>
           RewriteEngine On
             RewriteRule    "^(.*)/config\.js$"
             "<SERVER_PROTOCOL>://<HOST_NAME>:<PORT_2>/framework/js/configurations/config-admin.js"  [R]
             <Directory
           "${DocumentRoot}">
           Options FollowSymLinks
           AllowOverride all
           </Directory>
       </VirtualHost>

   Note:

   Replace the <PORT_1> & <PORT_2> with the ports which are expose to outside world. Replace <SERVER_PROTOCOL> and <HOST_NAME> with appropriate values. E.g. http and whfxxx.sample.com (if hostname is not available then <HOST_NAME> value can be IP address.)

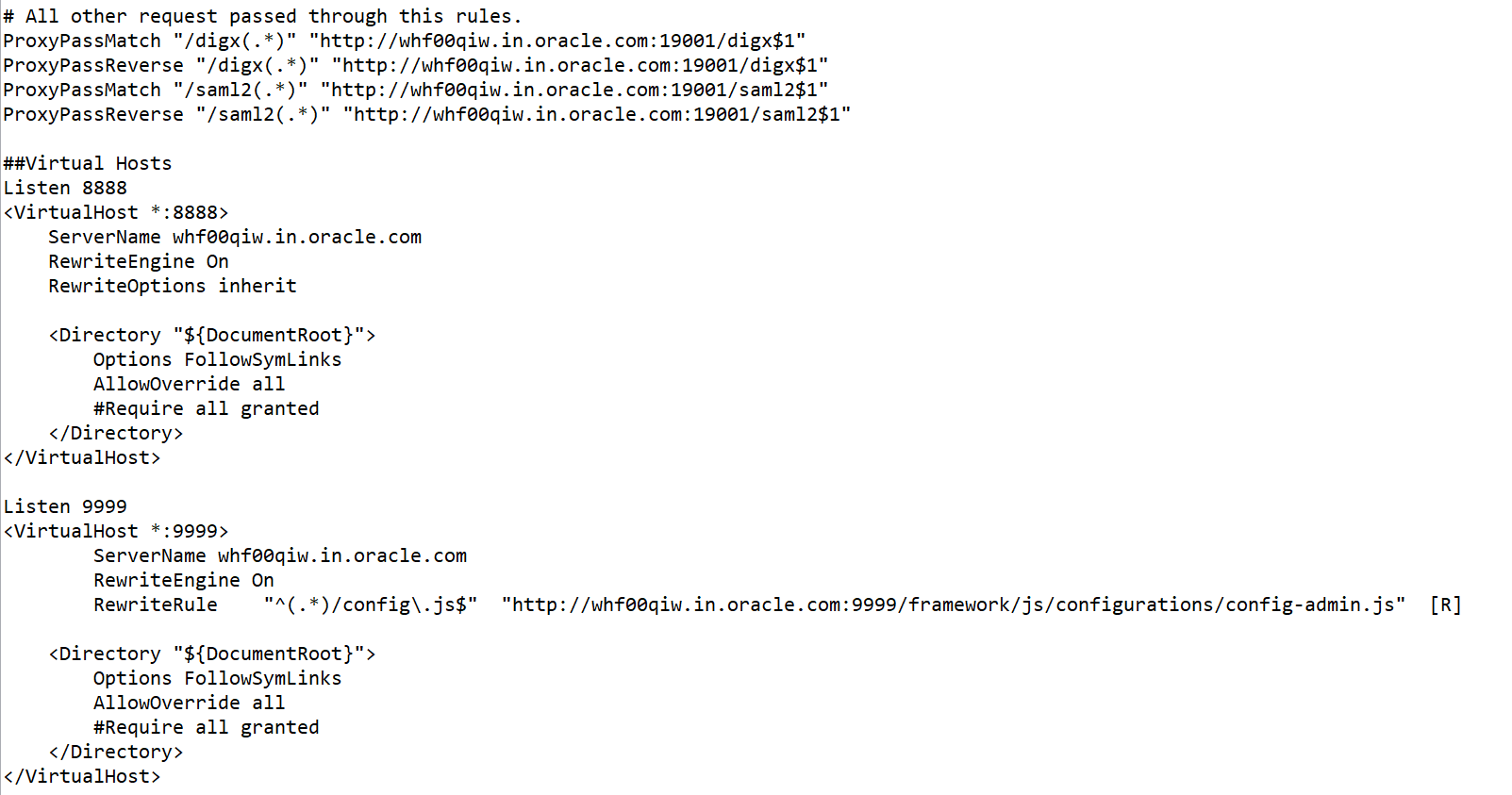

   Description of the illustration ohc-configuration.png



4. Save obdx.conf file and restart ohs server.
