1 Adding a New Report

This topic describes the systematic instruction to Adding a New Report option.

  1. Create UI component with required criteria fields for that new report. This criteria fields will be available once the report is selected from drop down. Currently each report has 2 fields are common. (Report Name, Report Format)

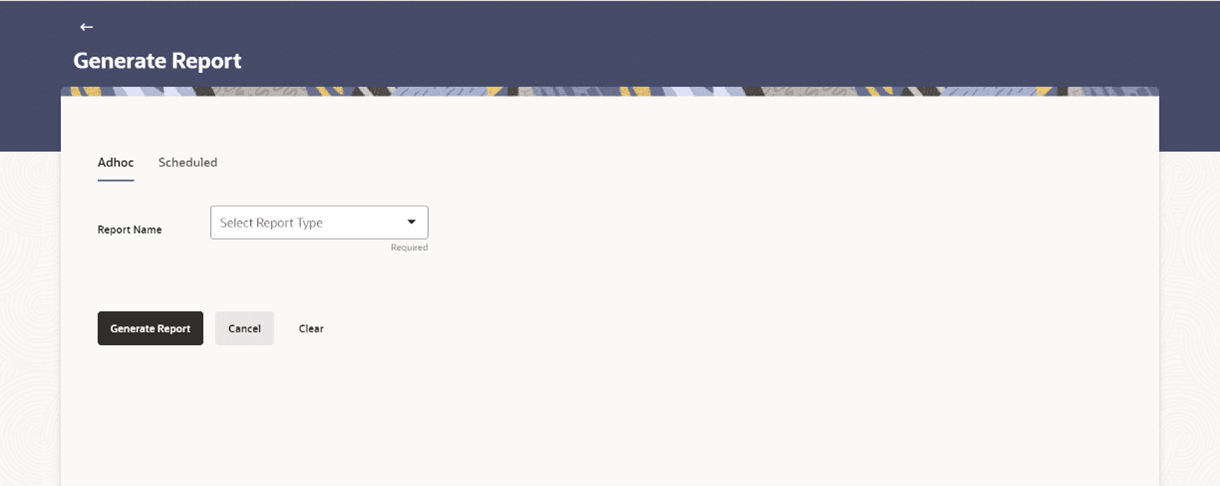

    Description of rptconfig1.png follows
    Description of the illustration rptconfig1.png

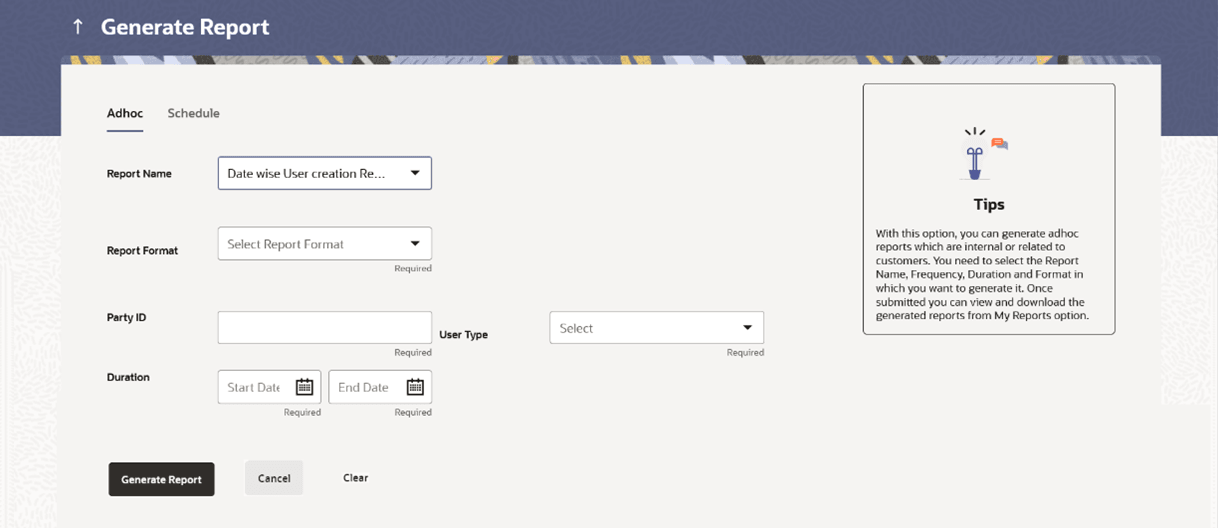

    Description of rptconfig2.png follows
    Description of the illustration rptconfig2.png

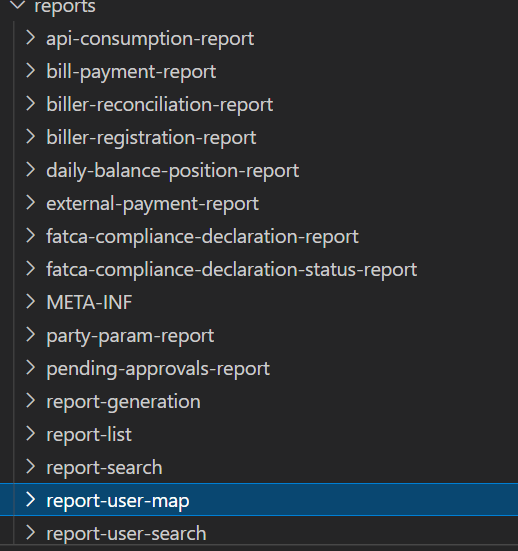

    Description of rptconfig3.png follows
    Description of the illustration rptconfig3.png

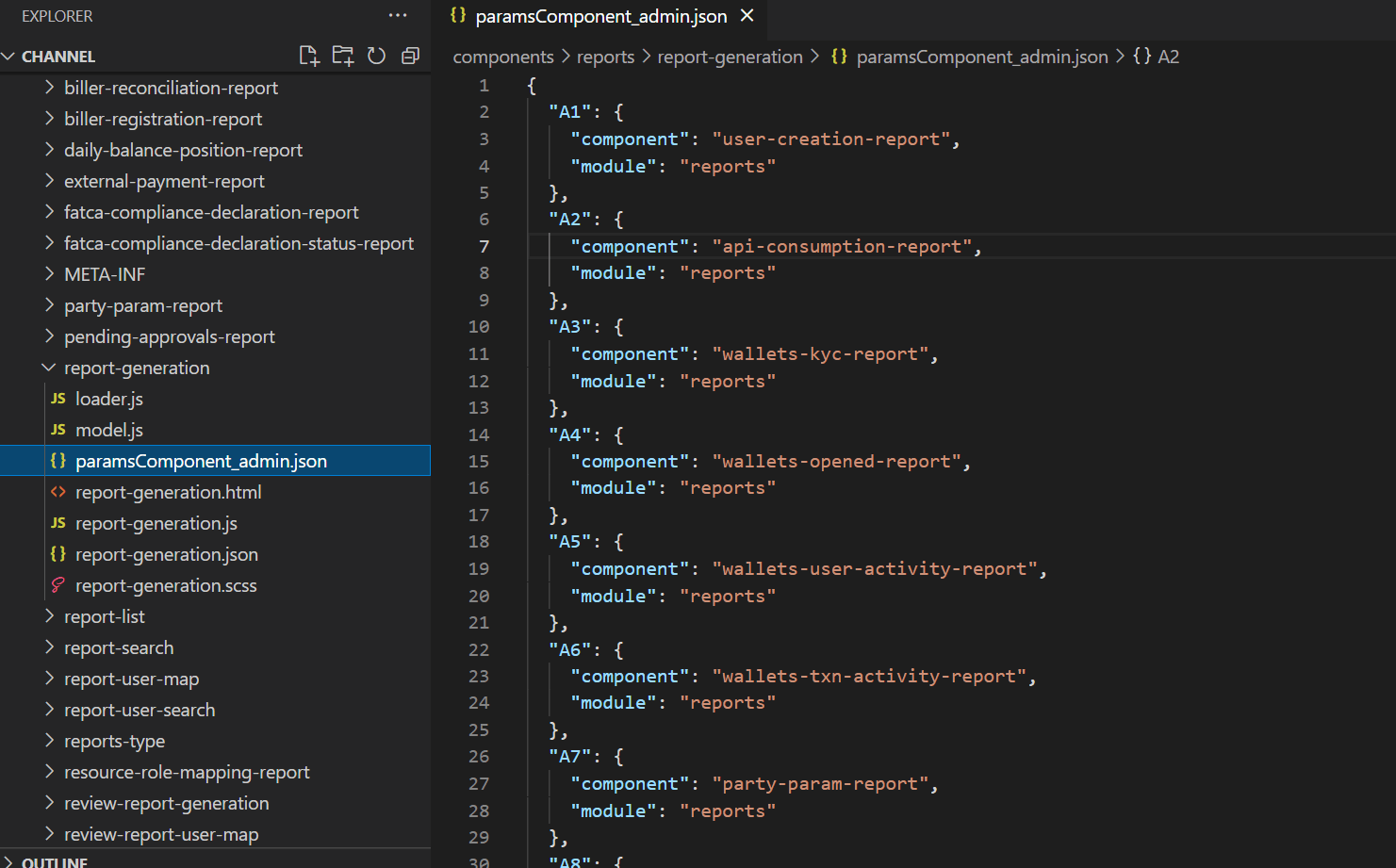

  2. Add Entry ParamsComponent_admin.json for new report. This will pick up your new report component once it is selected from drop-down.
    Description of rptconfig4.png follows
    Description of the illustration rptconfig4.png

  3. Add entry in DIGX_RP_DEFINITION table.

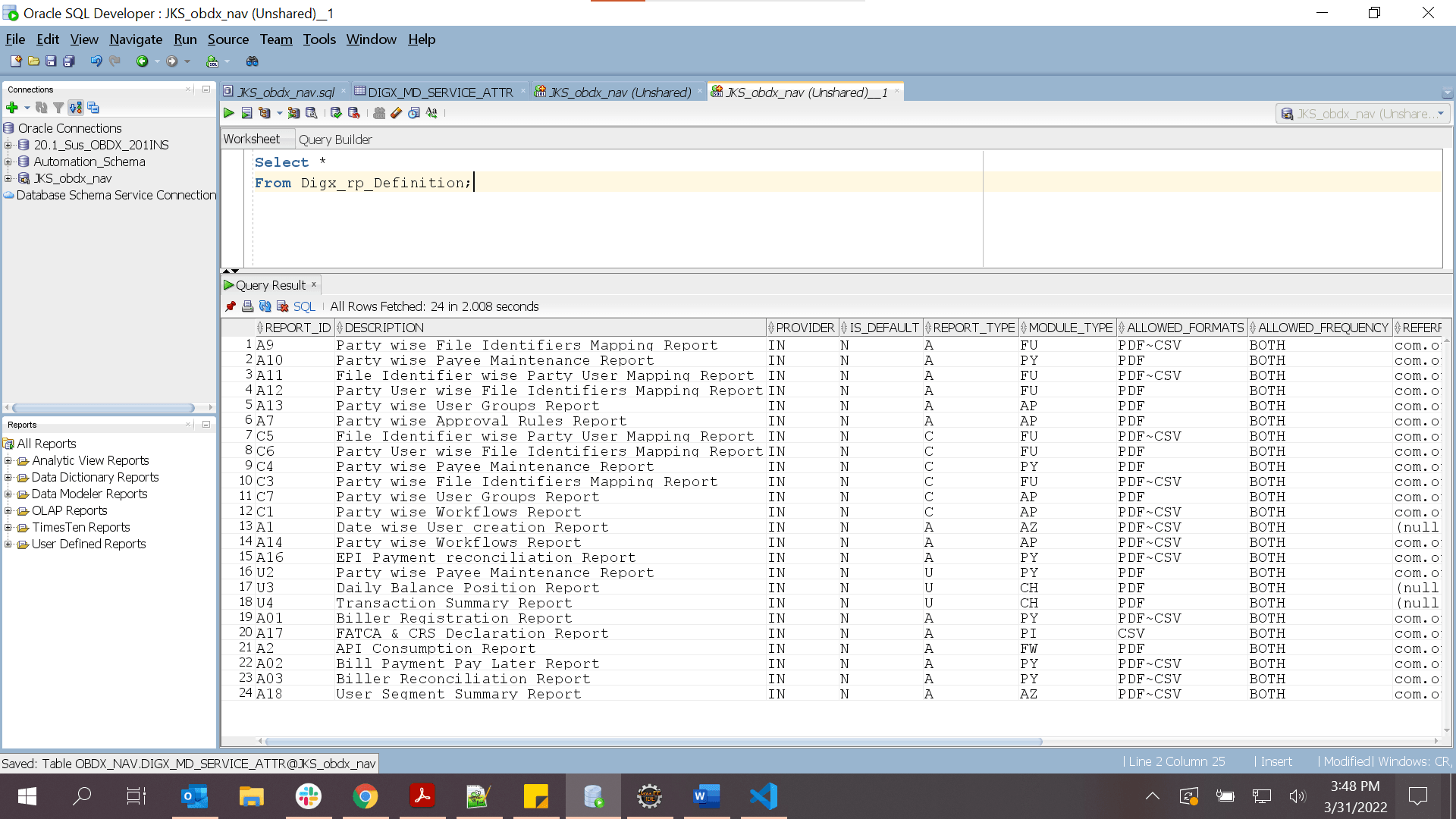

    Description of rptconfig5.png follows
    Description of the illustration rptconfig5.png

    select *
          from DIGX_cfg_CONFIG_ALL_B
where prop_id like 'Report%';

    Add entry for adapter for IN-‘Internal Report’

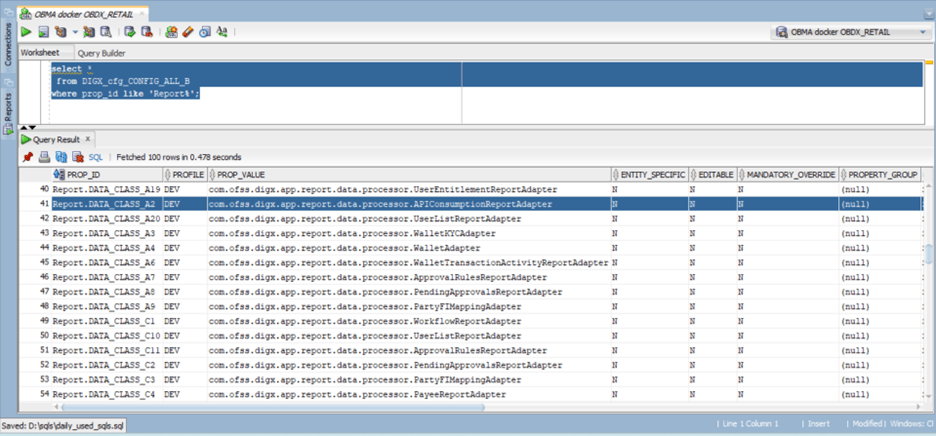

    Description of rptconfig6.png follows
    Description of the illustration rptconfig6.png

    Add entry for XSL created for Internal Report

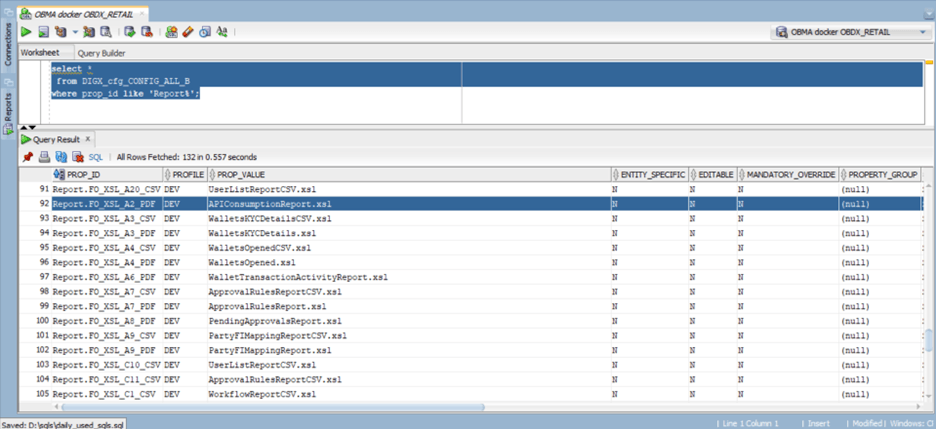

    Description of rptconfig7.png follows
    Description of the illustration rptconfig7.png

  4. Add adapter with extension AbstractReportDataGenerator implements IReportDataAdapter and override generateReport() method.

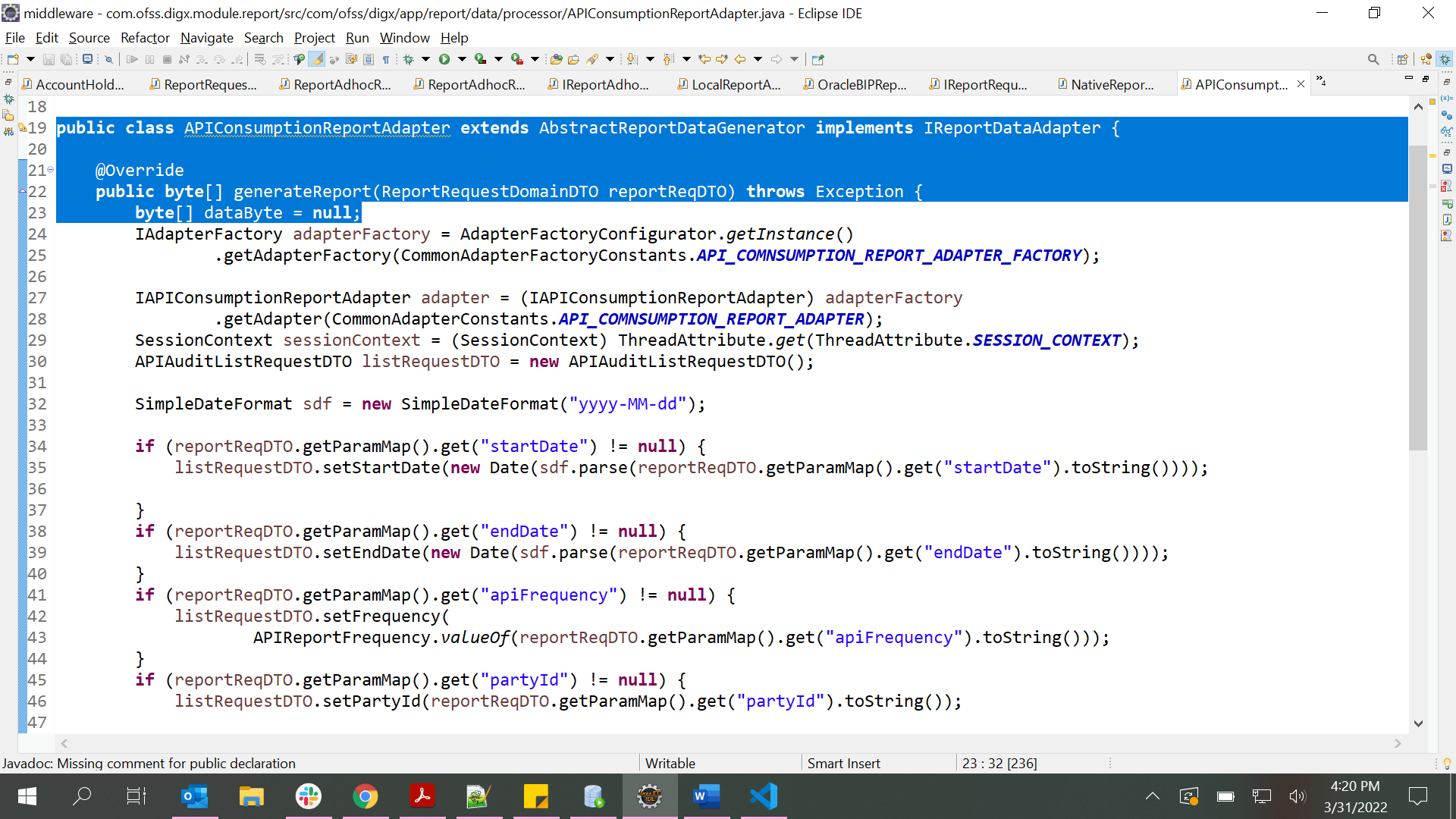

    Description of rptconfig8.png follows
    Description of the illustration rptconfig8.png

  5. Use this adapter to work on parameter and get the data for report and provide data to applyXSLFO method.

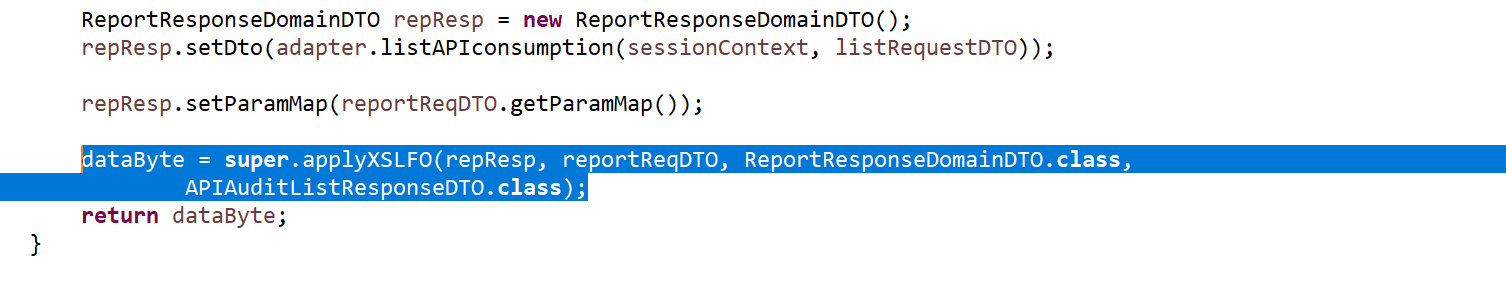

    Description of rptconfig9.png follows
    Description of the illustration rptconfig9.png

    Once all the steps are done, just map the report to your user and start using it.
