This topic provides the systematic instructions for defining the components used in initiating payments and adding payees.

It represents the fields which would be displayed on screen while initiating payments or Adding Payee. You can configure Regex, minimum, and maximum lengths for component fields.

1. To edit or add components, use the DIGX_RG_COMPONENT table.

   Note:

   Ensure you make the necessary UI changes when adding a new component.

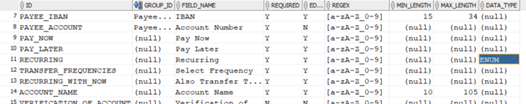

   Figure 4-1 DIGX_RG_COMPONENT table





   Description of "Figure 4-1 DIGX_RG_COMPONENT table "




   Table 4-1 DIGX_RG_COMPONENT table

   Column Name	Significance
   ID	Unique identifier for the component.
   GROUP_ID	The group of the components. The components belonging to same category can have same group id. Note: Planned for future implementation, not in current scope
   FIELD_NAME	The name of the component
   REQUIRED	Indicates whether the value for the field is required or not
   EDITABLE	Indicates whether the component can be edited or not. (Note- Planned for future implementation, not in current scope)
   REGEX	Indicates the regex of the fields in case of input
   MIN_LENGTH	Indicates the minimum length of the fields in case of input fields
   MAX_LENGTH	Indicates the maximum length of the fields in case of input fields
   DATA_TYPE	The data type can be LOV (List of values), ENUM or null. In case the data type of component is LOV, the value for that list can be configured in DIGX_RG_COMPONENT_VALUE_MAPPING table.
