OBDX Android App is supported only on versions n (current) and n-1 release.

1. Download and Install node JS (will be downloaded to default path).
2. Install node js from https://nodejs.org.
3. Download and Install Android Studio.
4. Download and install Android Studio from https://developer.android.com/studio/index.html.
5. Download and Install Android platforms.
6. Update Android SDK to latest API Level.
7. Gradle Version: gradle-7.5
8. Android Gradle Plugin Version (7.4.2): 'com.android.tools.build:gradle:7.4.2' or above
9. Set Environment variables.
10. Set following system variables:
    1. Click on Windows key and type Environment Variables.
    2. A dialog box will appear. Click on the Environment Variables button as shown below:

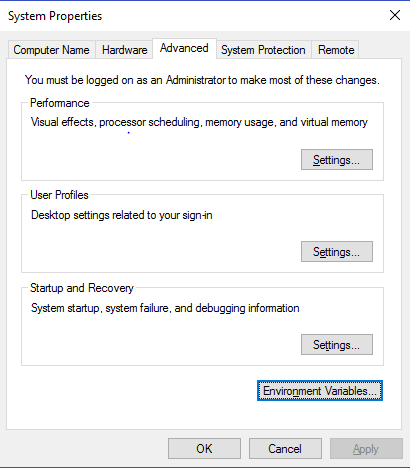

       Description of the illustration mnandrd.png


11. NODEJS <nodejs_path> Example: “C:\Program Files\nodejs\”.
12. Add the above variables in "PATH" system variable.

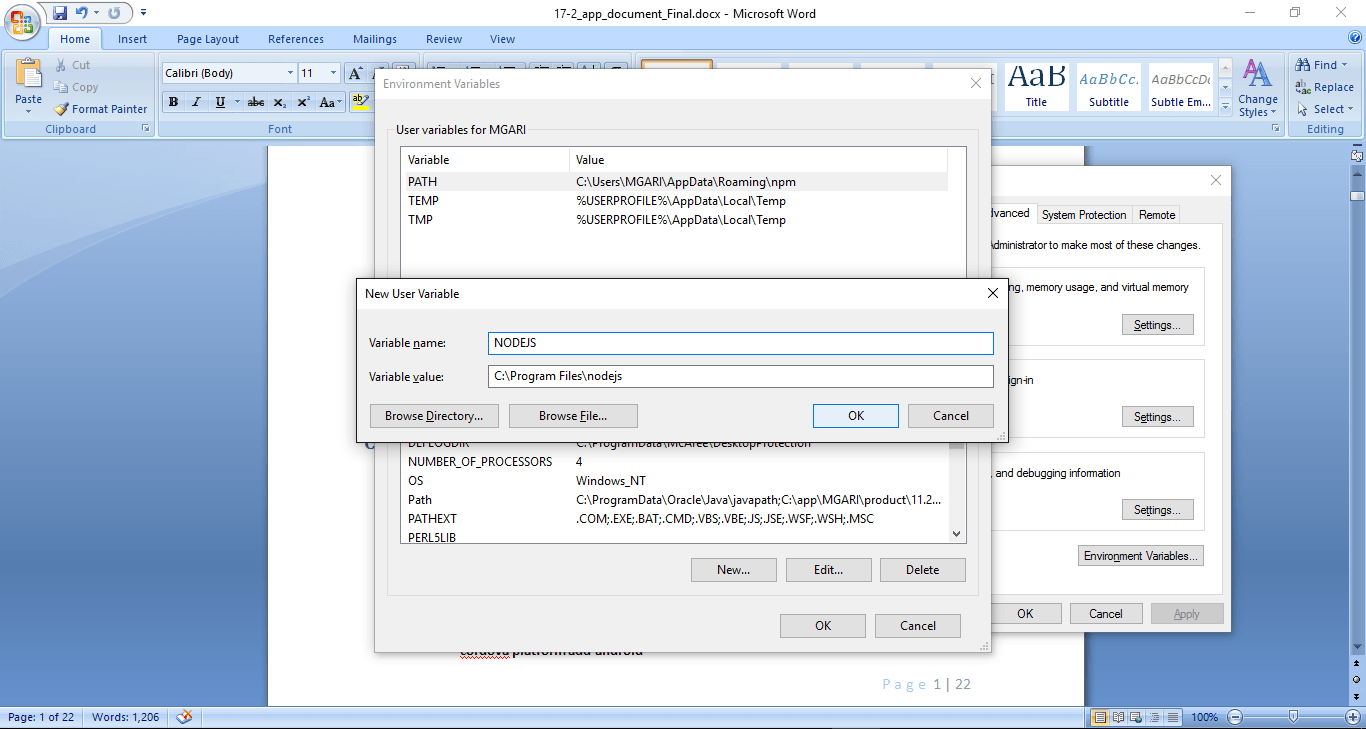

    Description of the illustration mnandrd0.png

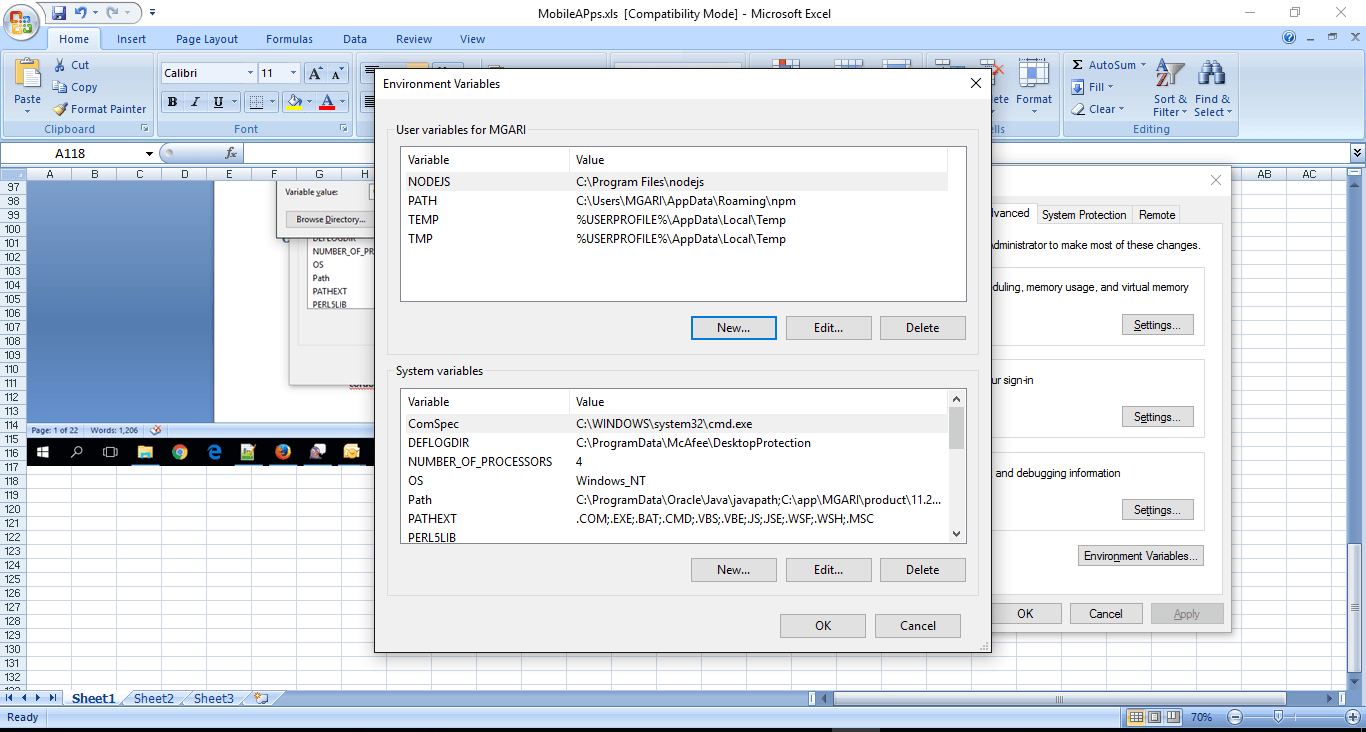

    Description of the illustration mnandrd1.png
