• Services → Messaging → JMS Servers




  Description of the illustration jms13.png

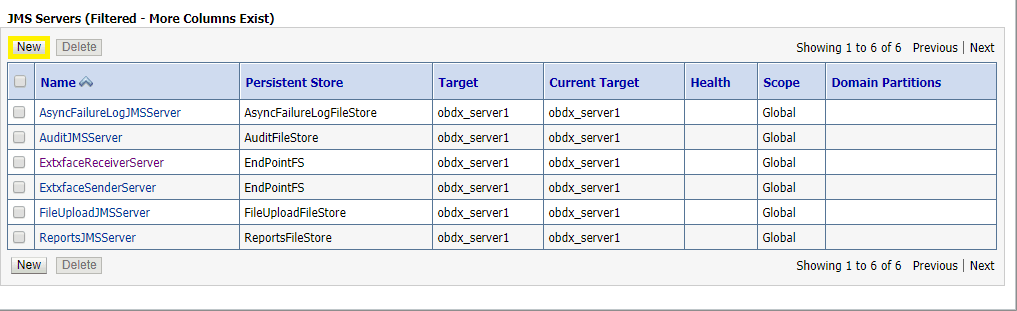

• Select New.


  Description of the illustration jms14.png

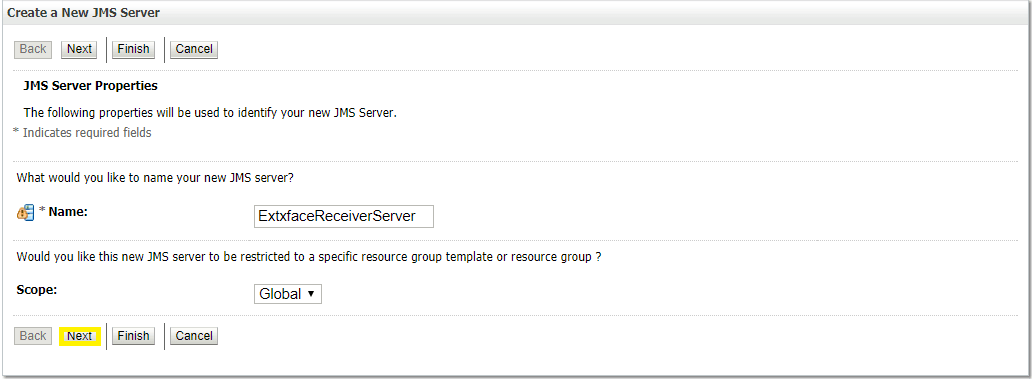

• Name: Give name as for example- ExtxfaceReceiverServer.
• After naming the server Click Next as shown in following example screenshot.


  Description of the illustration jms15.png

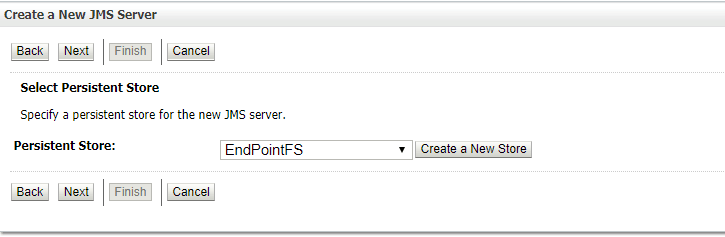

• Persistent Store: Select the name Persistent store from the dropdown list which was created in the previous step. Example-EndPointFS.
• Click Next.


  Description of the illustration jms16.png

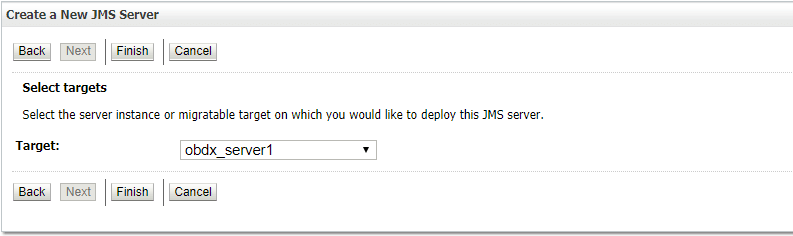

• Target: Target should Point to the Weblogic server cluster as in this case target is set to obdx_server1 cluster. (Or any other available cluster).
• Click Finish.


  Description of the illustration jms17.png

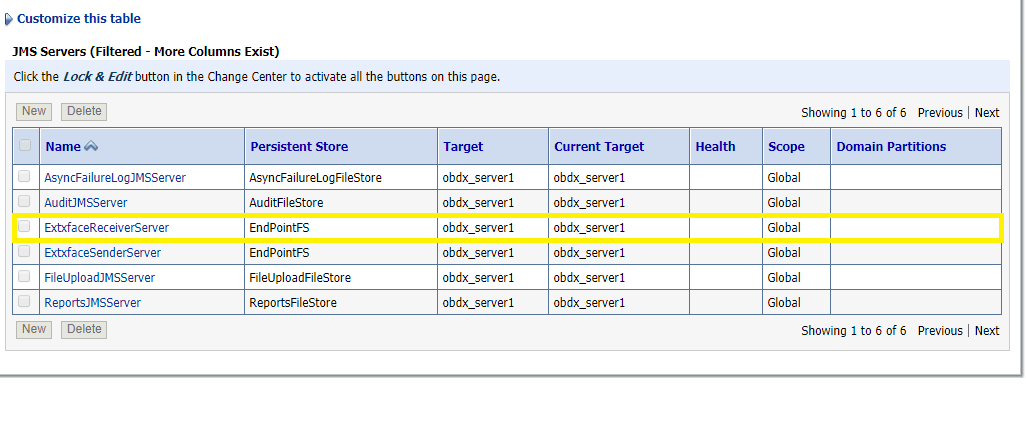

The JMS server should now be visible in the list.
