3.1.4 Create a Connection Factory
This topic describes the systematic instruction to Create a Connection Factory option.
- Services → Messaging → JMS Modules

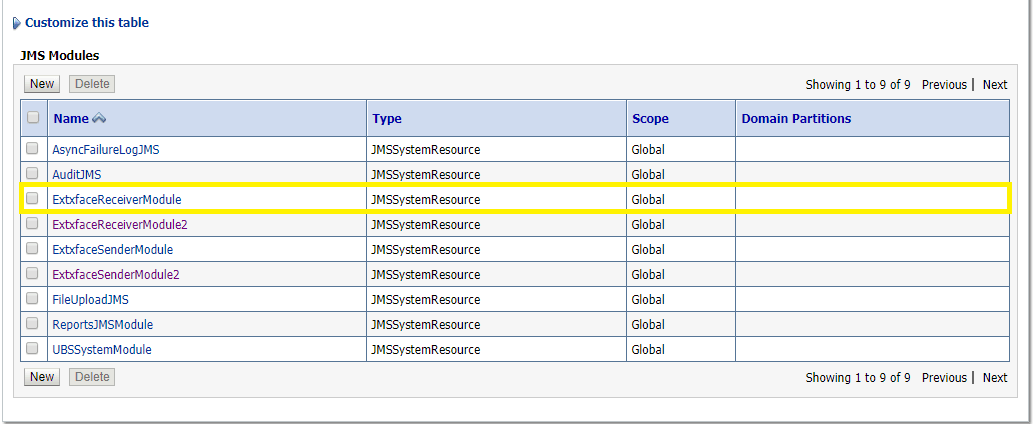

- Select ExtxfaceReceiverModule and press New.

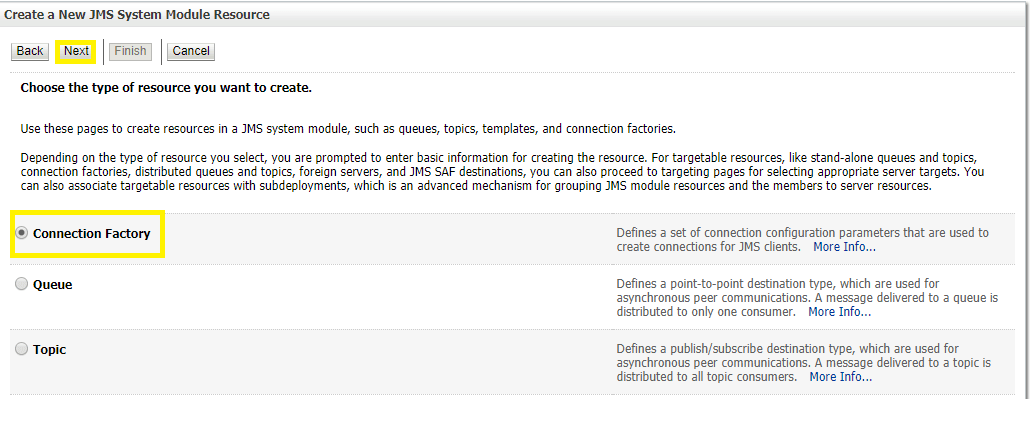

- Select Connection Factory and click Next.
-

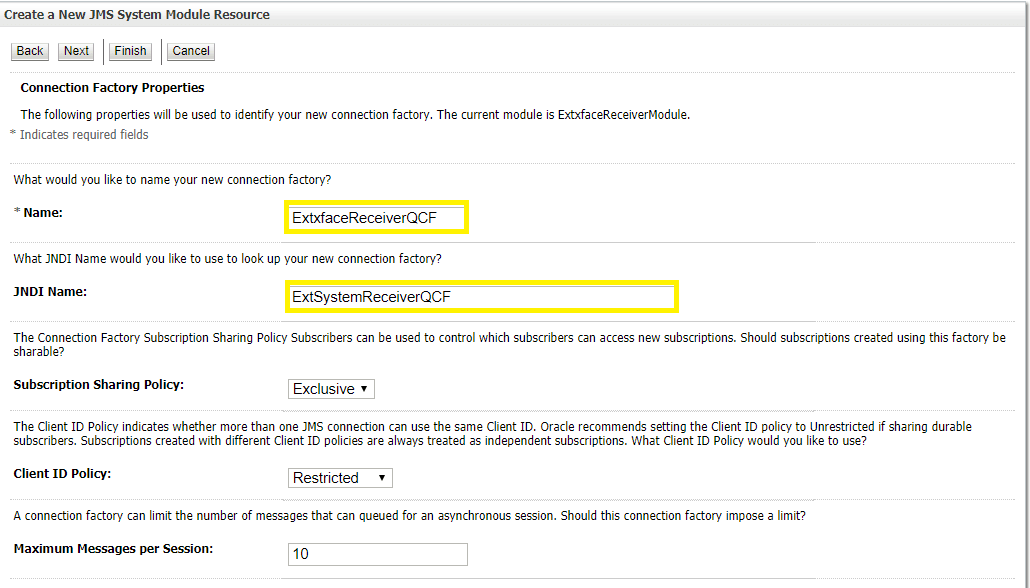

Name: Give name of the connection factory example- ExtxfaceReceiverQCF.
JNDI Name: ExtSystemReceiverQCF.
- Click Next.
- Select Default Targeting Enabled and Press Finish

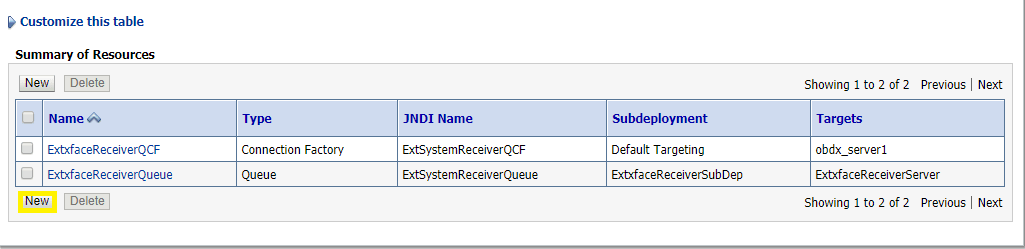

- The connection factory should be listed on the following page with Default Targeting as Subdeployment and WebLogic cluster as the target.
