3.1 ODA Configurations

This topic describes the systematic instruction to ODA Configurations option.

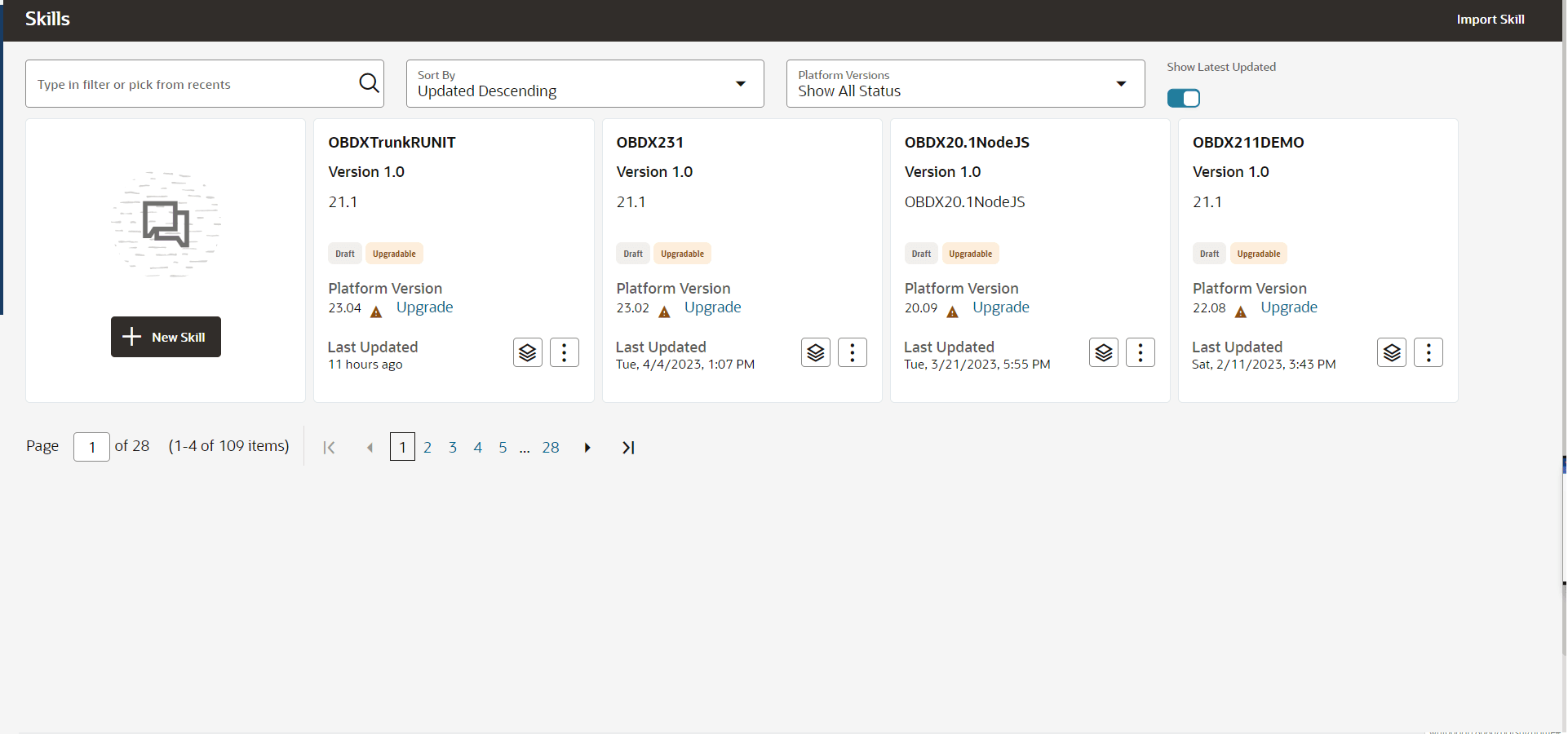

  1. Login to ODA and import the OBDX bot shipped with OBDX installer. There is below folder OBDX_Installer/installables/OBDX/BASE/<OBDX patchset version>/chatbot/config/oda-text/. Zip the content inside this and Import the zip by clicking the “Import Bot” on ODA dashboard.
    Description of chat2.png follows
    Description of the illustration chat2.png

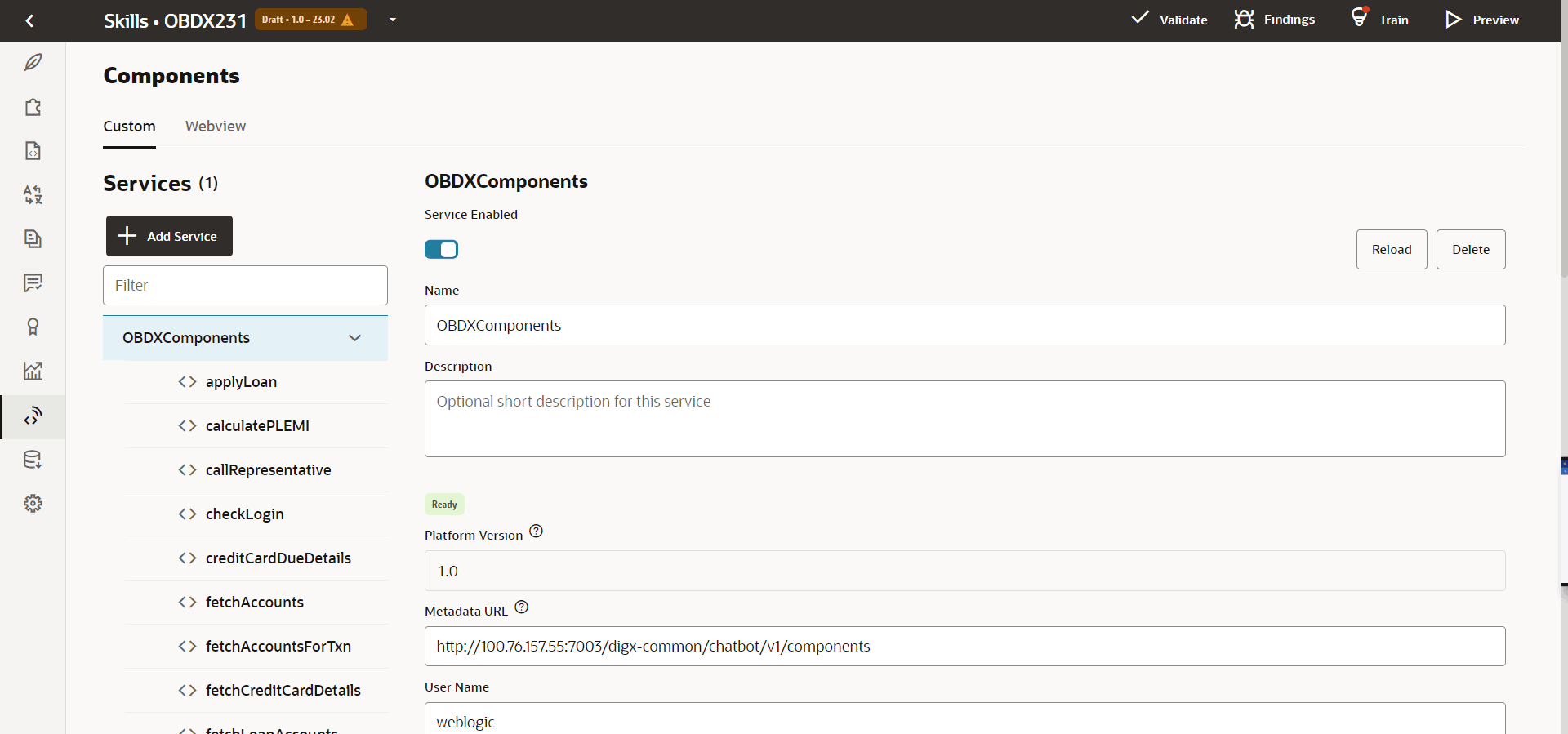

  2. Click on the OBDX Bot and click on the components to add the custom components.
    Description of chat4.png follows
    Description of the illustration chat4.png

  3. Put the OBDX URL here. The OBDX setup and the ODA setup must be accessible over Internet.
  4. Add username/password (in HTTP Basic authorization) of any user with Administrators role which can be used to login in OBDX WebLogic server.

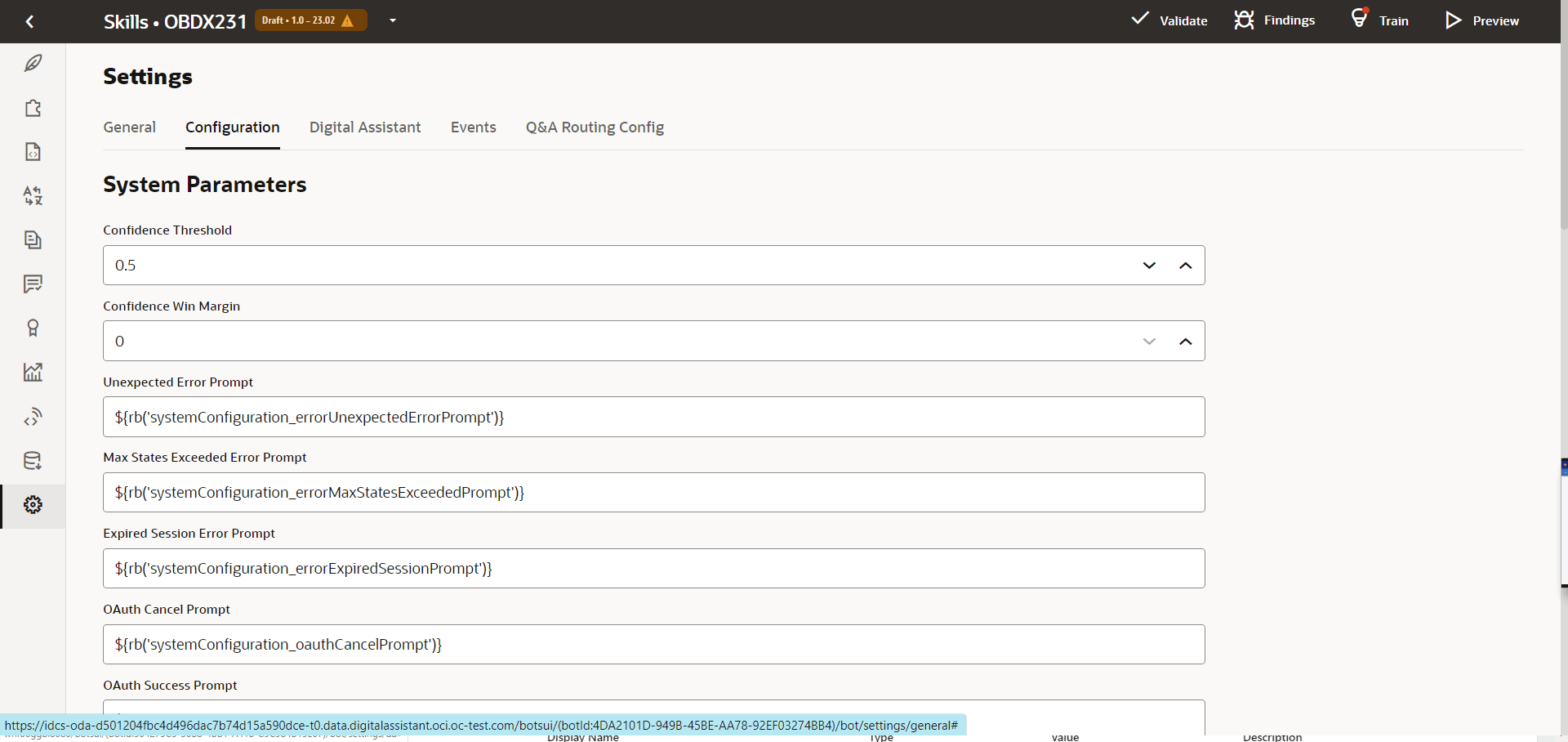

  5. To configure intent threshold for the skill, go to settings tab in a bot and click configurations to configure threshold frequency (default 0.5) as shown below:
    Description of chat6.png follows
    Description of the illustration chat6.png

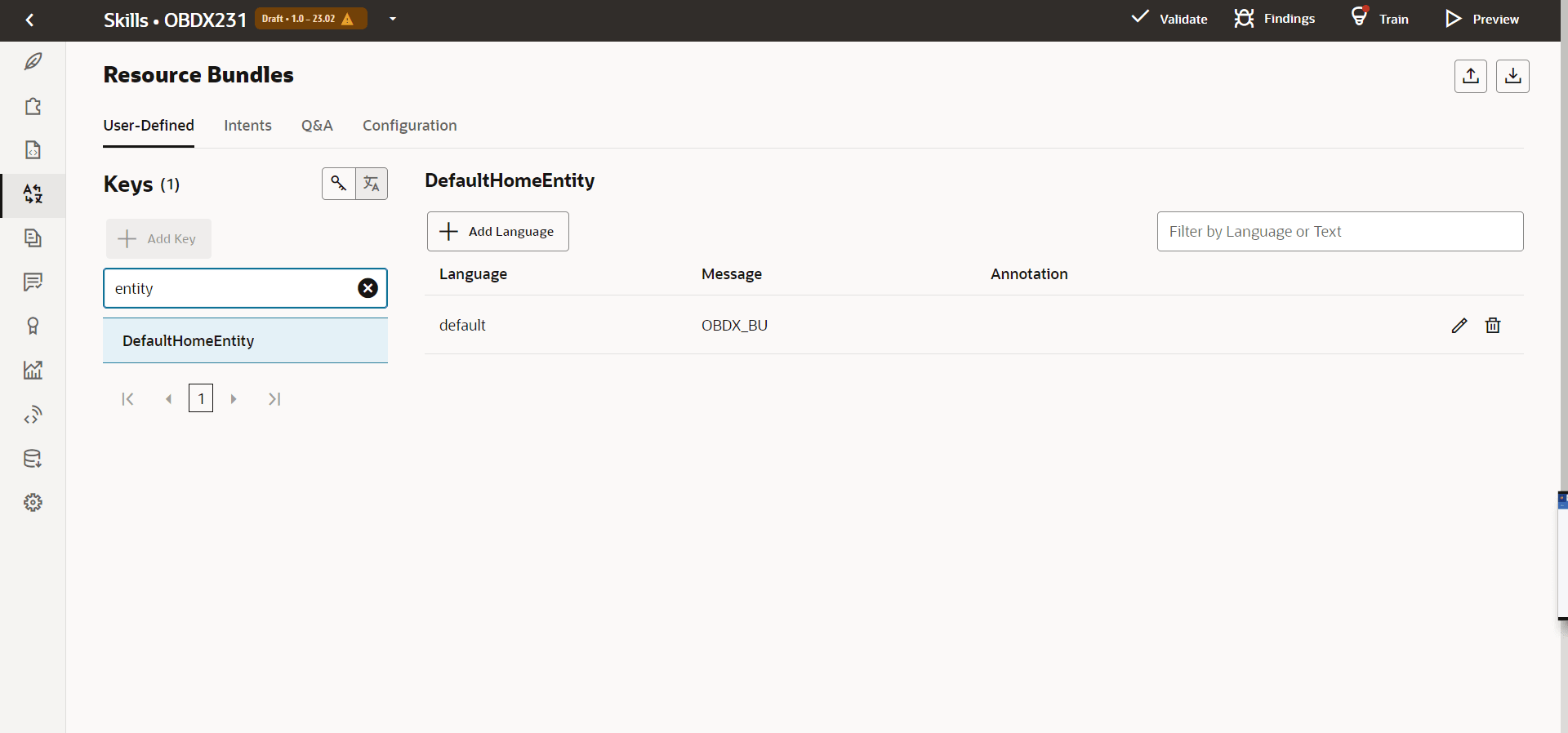

  6. Configure required entity in a resource bundles (one created/configured in OBDX). At a time chatbot works with single entity. Go to Resource Bundles as shown below-
    Description of chat7.png follows
    Description of the illustration chat7.png

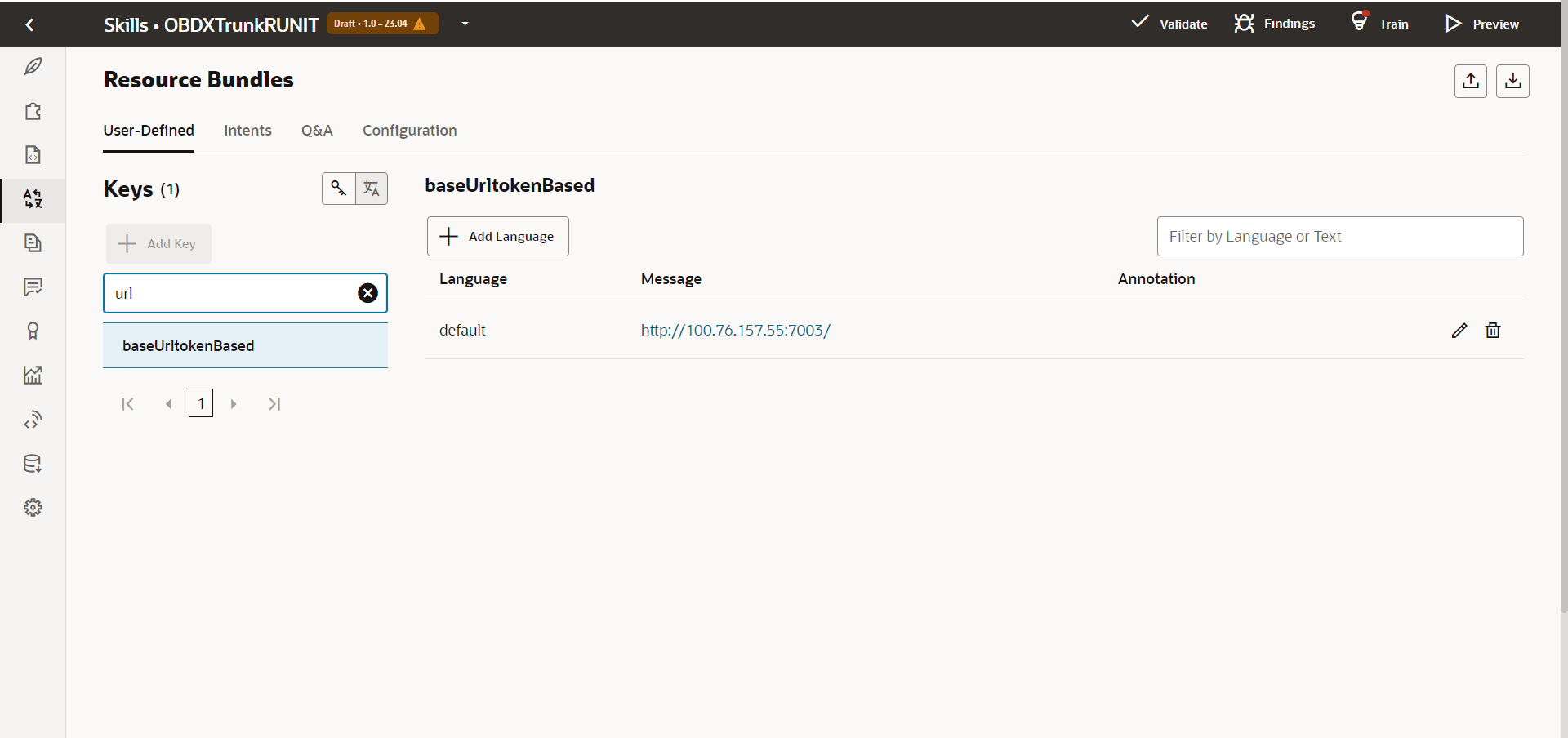

  7. Configure OBDX managed server URL where OBDX rest APIS are hosted:
    Description of chat8.png follows
    Description of the illustration chat8.png

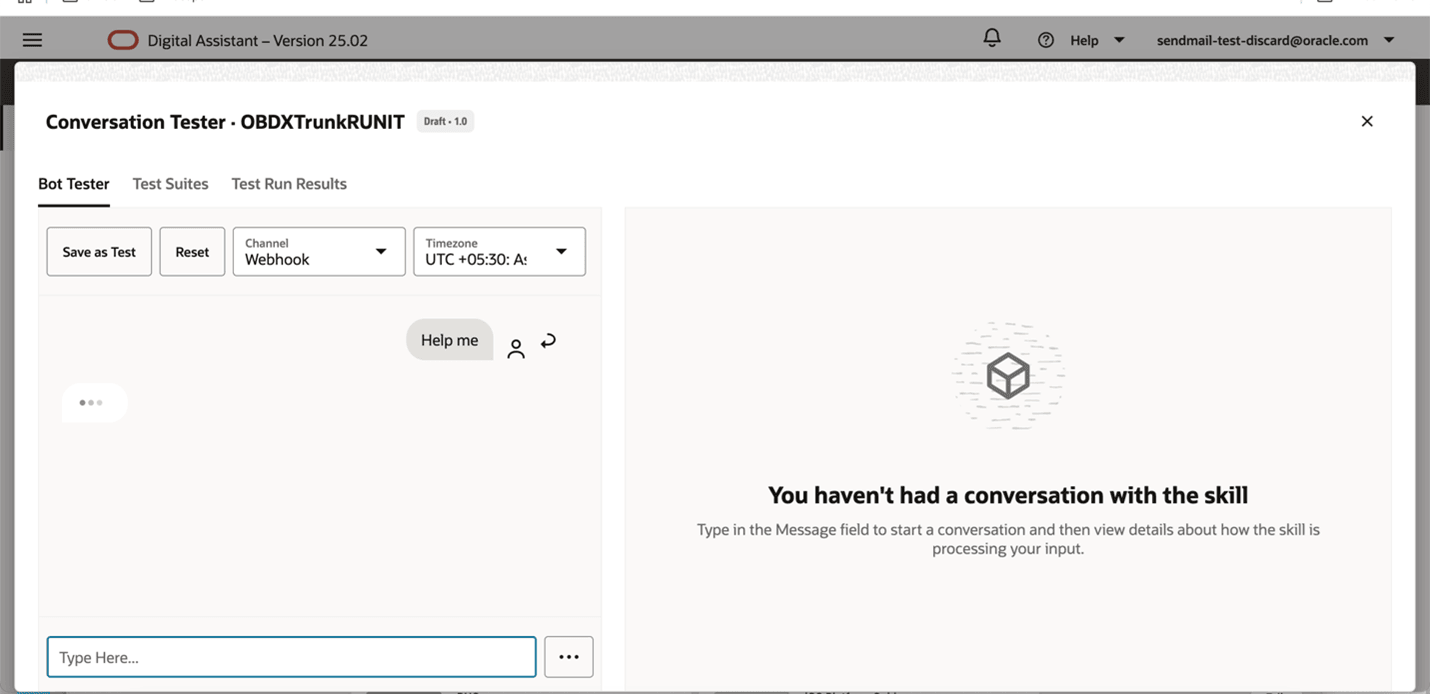

  8. Login to ODA → Preview
    Description of alexachannel12.png follows
    Description of the illustration alexachannel12.png

Parent topic: Common Configurations
